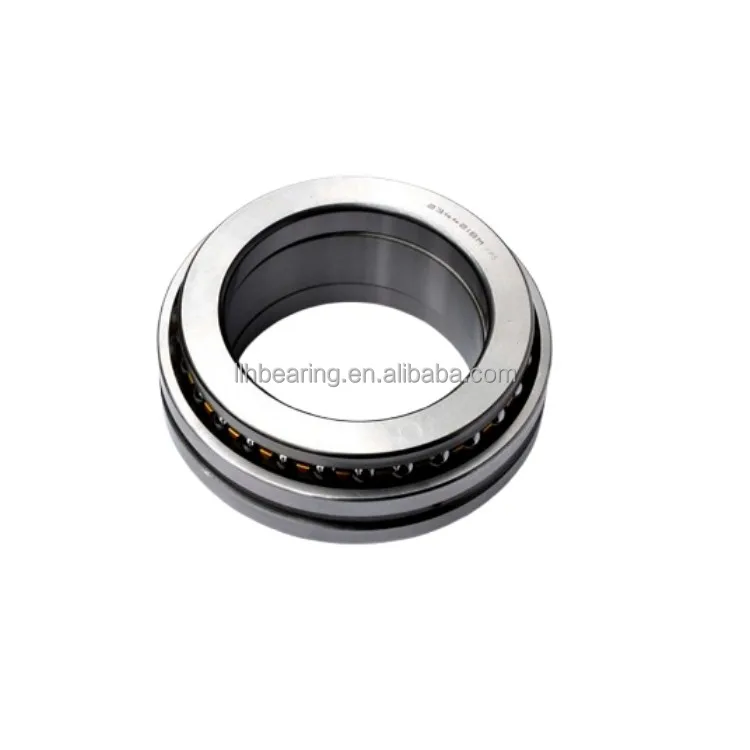

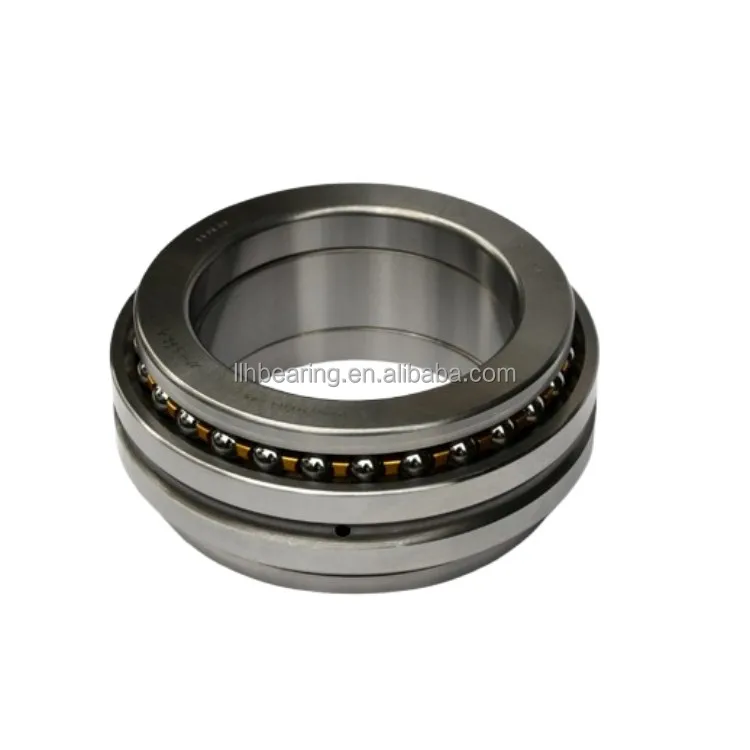

234421 234421BM Two-way double row Angular Contact Ball Bearings 234421-M-SP 234421M Lathe Bearing 105x160x66mm
$62.50 (Shipping Charge Not Included）
Description
Product Description
double direction angular contact thrust ball bearings are designed to locate spindle shafts axially in both directions. These bearings are intended for mounting in combination with cylindrical roller bearings in the NN 30 K or N 10 K series in the same housing bore . This bearing combination simplifies machining of the housing bore.
Double direction angular contact thrust ball bearings are manufactured with the same nominal bore size and outside diameter as corresponding cylindrical roller bearings. However, the outside diameter tolerance of the housing washers, combined with the housing bore diameter and geometric tolerances recommended for super-precision cylindrical roller bearings under light to normal load and rotating inner ring load (Seat tolerances for standard conditions) will result in an appropriate radial clearance in the
housing bore. This clearance is sufficient to prevent radial loads from acting on the thrust bearing provided that its outer ring is not axially clamped in the housing.
Double direction angular contact thrust ball bearings are manufactured with the same nominal bore size and outside diameter as corresponding cylindrical roller bearings. However, the outside diameter tolerance of the housing washers, combined with the housing bore diameter and geometric tolerances recommended for super-precision cylindrical roller bearings under light to normal load and rotating inner ring load (Seat tolerances for standard conditions) will result in an appropriate radial clearance in the
housing bore. This clearance is sufficient to prevent radial loads from acting on the thrust bearing provided that its outer ring is not axially clamped in the housing.
Related Products
|
Bearing No.
|
d
|
D
|
B
|
|
mm
|
mm
|
mm
|
|
|
234406-M-SP
|
30
|
55
|
32
|
|
234407-M-SP
|
35
|
62
|
34
|
|
234408-M-SP
|
40
|
68
|
36
|
|
234409-M-SP
|
45
|
75
|
38
|
|
234410-M-SP
|
50
|
80
|
38
|
|
234411-M-SP
|
55
|
90
|
44
|
|
234412-M-SP
|
60
|
95
|
44
|
|
234413-M-SP
|
65
|
100
|
44
|
|
234414-M-SP
|
70
|
110
|
48
|
|
234415-M-SP
|
75
|
115
|
48
|
|
234416-M-SP
|
80
|
125
|
54
|
|
234417-M-SP
|
85
|
130
|
54
|
|
234418-M-SP
|
90
|
140
|
60
|
|
234419-M-SP
|
95
|
145
|
60
|
|
234420-M-SP
|
100
|
150
|
60
|
|
234421-M-SP
|
105
|
160
|
66
|
|
234422-M-SP
|
110
|
170
|
72
|
|
234424-M-SP
|
120
|
180
|
72
|
|
234426-M-SP
|
130
|
200
|
84
|
|
234428-M-SP
|
140
|
210
|
84
|
|
234430-M-SP
|
150
|
225
|
90
|
|
234432-M-SP
|
160
|
240
|
96
|
|
234434-M-SP
|
170
|
260
|
108
|
|
234436-M-SP
|
180
|
280
|
120
|
|
234438-M-SP
|
190
|
290
|
120
|
|
234440-M-SP
|
200
|
310
|
132
|
|
234444-M-SP
|
220
|
340
|
144
|
|
234448-M-SP
|
240
|
360
|
144
|
|
234452-M-SP
|
260
|
400
|
164
|
|
234456-M-SP
|
280
|
420
|
164
|
|
234460-M-SP
|
300
|
460
|
190
|
|
234464-M-SP
|
320
|
480
|
190
|
|
234468-M-SP
|
340
|
520
|
212
|
|
234472-M-SP
|
360
|
540
|
212
|
|
234476-M-SP
|
380
|
560
|
212
|
|
234480-M-SP
|
400
|
600
|
236
|
|
234706-M-SP
|
32
|
55
|
32
|
|
234707-M-SP
|
37
|
62
|
34
|
|
234708-M-SP
|
42
|
68
|
36
|
|
234709-M-SP
|
47
|
75
|
38
|
|
234710-M-SP
|
52
|
80
|
38
|
|
234711-M-SP
|
57
|
90
|
44
|
|
234712-M-SP
|
62
|
95
|
44
|
|
234713-M-SP
|
67
|
100
|
44
|
|
234714-M-SP
|
73
|
110
|
48
|
|
234715-M-SP
|
78
|
115
|
48
|
|
234716-M-SP
|
83
|
125
|
54
|
|
234717-M-SP
|
88
|
130
|
54
|
|
234718-M-SP
|
93
|
140
|
60
|
|
234719-M-SP
|
98
|
145
|
60
|
|
234720-M-SP
|
103
|
150
|
60
|
|
234721-M-SP
|
109
|
160
|
66
|
|
234722-M-SP
|
114
|
170
|
72
|
|
234724-M-SP
|
124
|
180
|
72
|
|
234726-M-SP
|
135
|
200
|
84
|
|
234728-M-SP
|
145
|
210
|
84
|
|
234730-M-SP
|
155
|
225
|
90
|
|
234732-M-SP
|
165
|
240
|
96
|
|
234734-M-SP
|
176
|
260
|
108
|
|
234736-M-SP
|
187
|
280
|
120
|
|
234738-M-SP
|
197
|
290
|
120
|
|
234740-M-SP
|
207
|
310
|
132
|
|
234744-M-SP
|
228
|
340
|
144
|
|
234748-M-SP
|
248
|
360
|
144
|
|
234752-M-SP
|
269
|
400
|
164
|
|
234756-M-SP
|
289
|
420
|
164
|
|
234760-M-SP
|
310
|
460
|
190
|
|
234764-M-SP
|
330
|
480
|
190
|
|
234768-M-SP
|
350
|
520
|
212
|
|
234772-M-SP
|
370
|
540
|
212
|
|
234776-M-SP
|
390
|
560
|
212
|
|
234780-M-SP
|
410
|
600
|
236
|
Certificate
Company Introduction
Jinan Maolei Bearing Co., Ltd. is a manufacturer and trader specialized in the research, development and production of bearings. is located in the “Spring City” Jinan, with convenient transportation.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.
FAQ
Q: Are you trading company or manufacturer ?
A: We are the manufacture of bearings for more than 20 years, “Quality is our culture”.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What causes bearing noise?
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q:I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
A:Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
A: We are the manufacture of bearings for more than 20 years, “Quality is our culture”.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What causes bearing noise?
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q:I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
A:Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
Additional information
| Bore Size | 65mm |
|---|---|
| Outside Diameter | 100mm |
