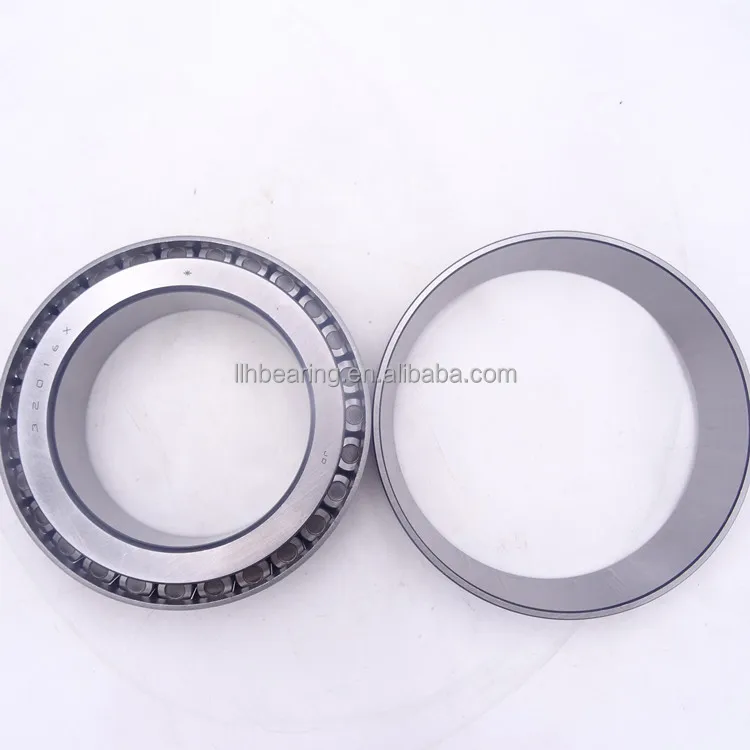

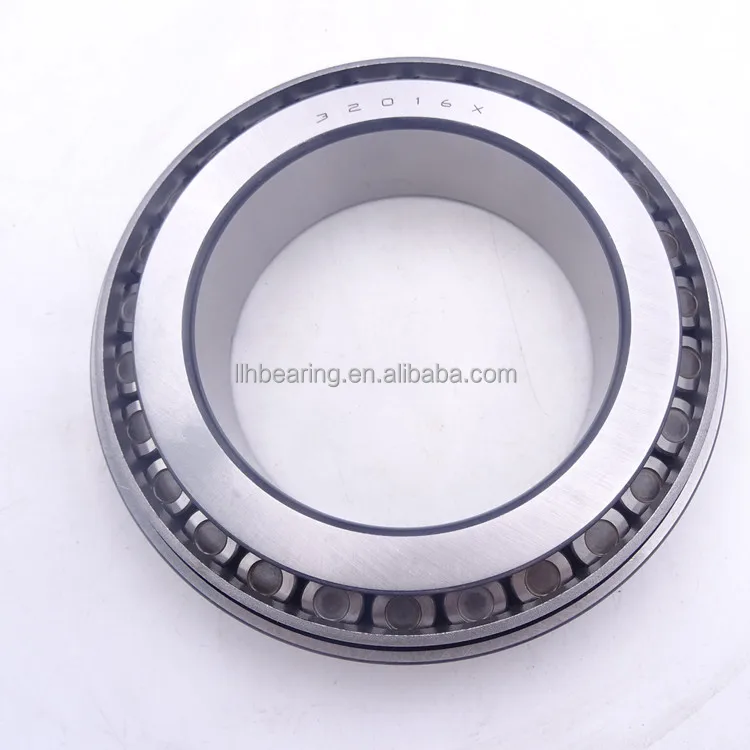

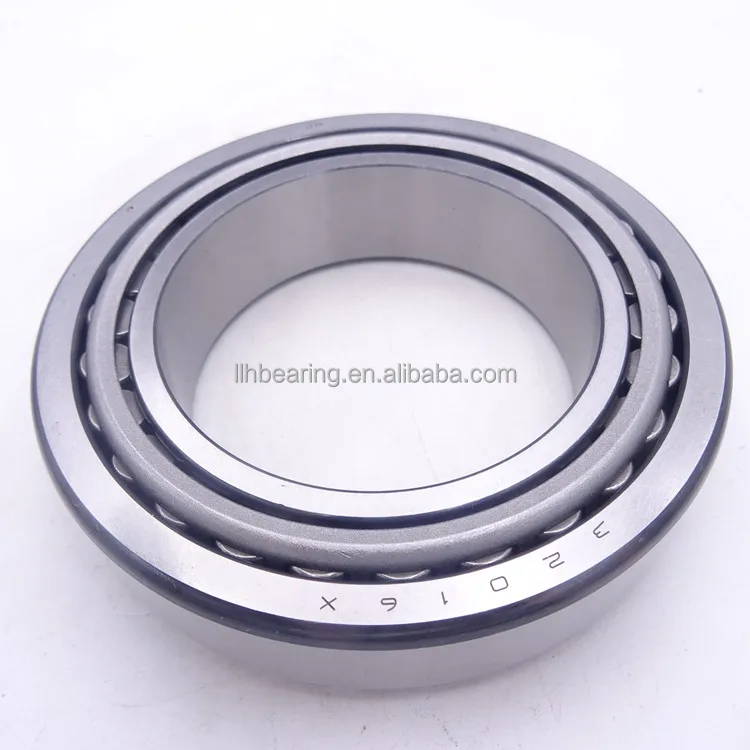

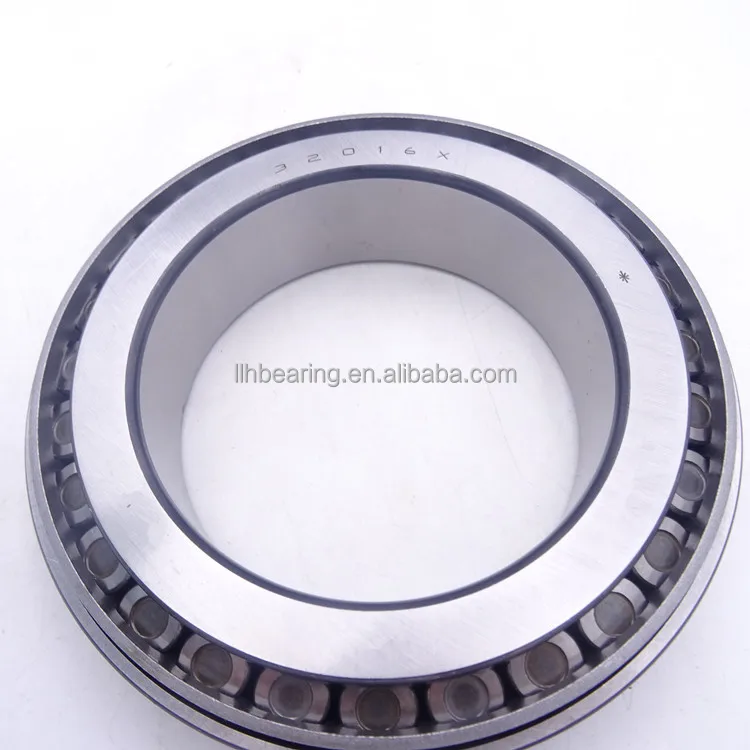

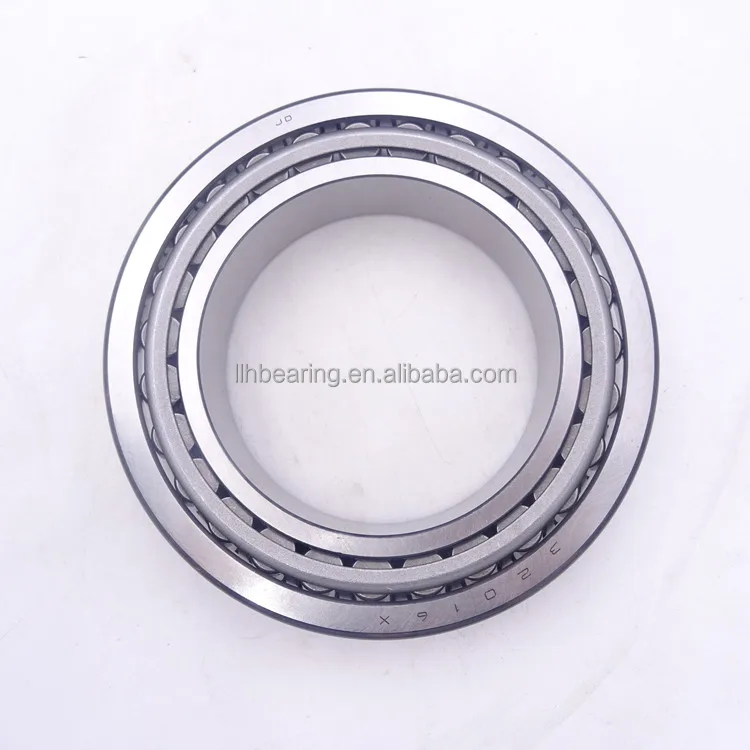

32016 Size 80x125x29 mm China Factory Supplier Single Row Chrome Steel Tapered Roller Bearing 32016X

 Packaging Details  A: tube package + outer carton + pallets

                                    B: single box + outer carton + pallets

                                    C: tube package + middle box + outer carton + pallets

                                    D: According to your request

Delivery Time :         Shipped in 3 days after payment



Brief introduction:

Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.

Taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.

Types:

   1.Single-row tapered roller bearings

   2.Double-row tapered roller bearings

   3.Four-row tapered roller bearings

   4.Double, four-row tapered roller bearings with multi-seal

Typical applications:

Tapered roller bearings are widely applied to machine tool spindles, gear reduction units, automotive transaxles, transmissions, rolling mill, mining, metallurgical industry, plastic machinery, home appliances, electric motors, pumps, machinery and other automotive components.

Advantages:

1.high speed and high precision

2.long service lifetime

3.lowest noise and good performance



Bearing	Specification			Weight
No.	d(mm)	D(mm)	W(mm)	kg
30202 bearing	15	35	11.75	0.053
30203 bearing	17	40	13.25	0.075
30204 bearing	20	47	15.25	0.126
30205 bearing	25	52	16.25	0.157
30206 bearing	30	62	17.25	0.231
30207 bearing	35	72	18.25	0.331
30208 bearing	40	80	19.75	0.422
30209 bearing	45	85	20.75	0.474
30210 bearing	50	90	21.75	0.53
30211 bearing	55	100	22.75	0.712
30212 bearing	60	110	23.75	0.904
30213 bearing	65	120	24.75	1.13
30214 bearing	70	125	26.25	1.261
30215 bearing	75	130	27.25	1.36
30216 bearing	80	140	28.25	1.675
30217 bearing	85	150	30.5	2.06

1.High speed, High Precision, Low Noise, Long Service Life

2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the “quality first, credit first” business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.







Package: A.tube package + outer carton + pallets
                  B.single box + outer carton + pallets
                  C.tube package + middle box + outer carton + pallets
                 D.According to your request.

Payment Terms: A.100%T/T

                               B.30%T/T in advance,70% aganist copy of B/L(For large order)

                               C.Western Union



FAQ

Q: Are you trading company or manufacturer ?

A: We are the manufacture of bearings for more than 20 years, “Quality is our culture

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What causes bearing noise?

A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.

Q: What is your terms of payment ?

A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union

D.Paypal
