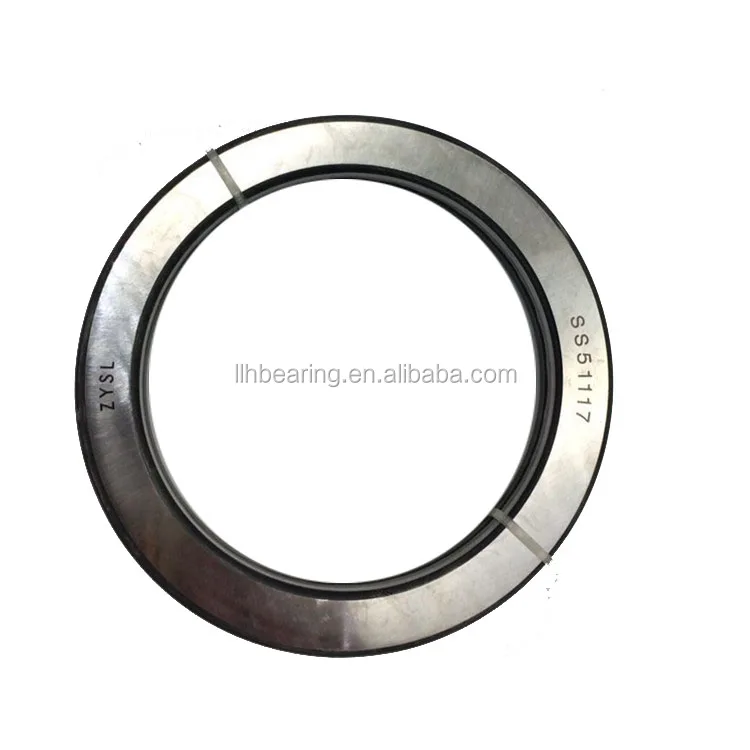

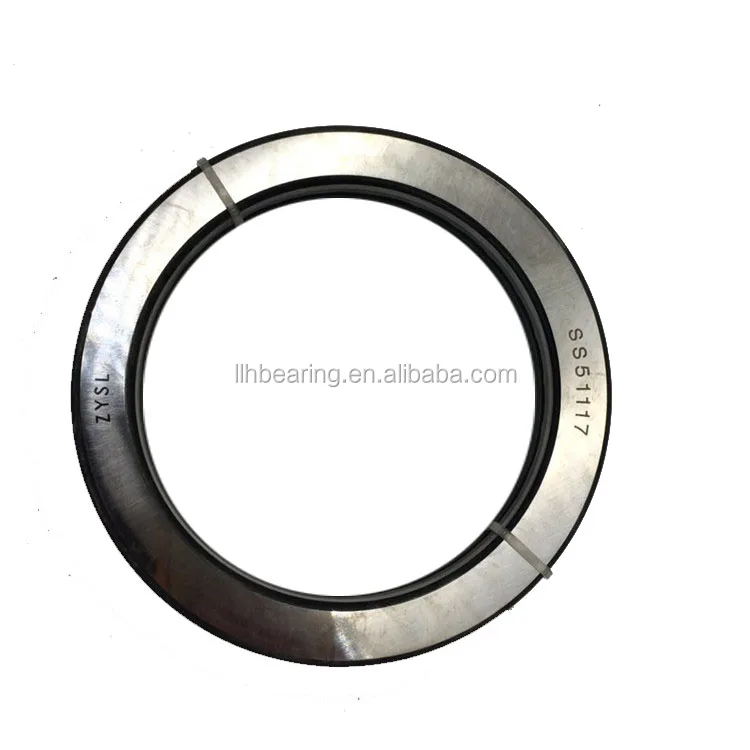

51117 Stainless Steel Thrust Ball Bearing SS51117 Size 85x110x19mm
$5.00 (Shipping Charge Not Included）
Description

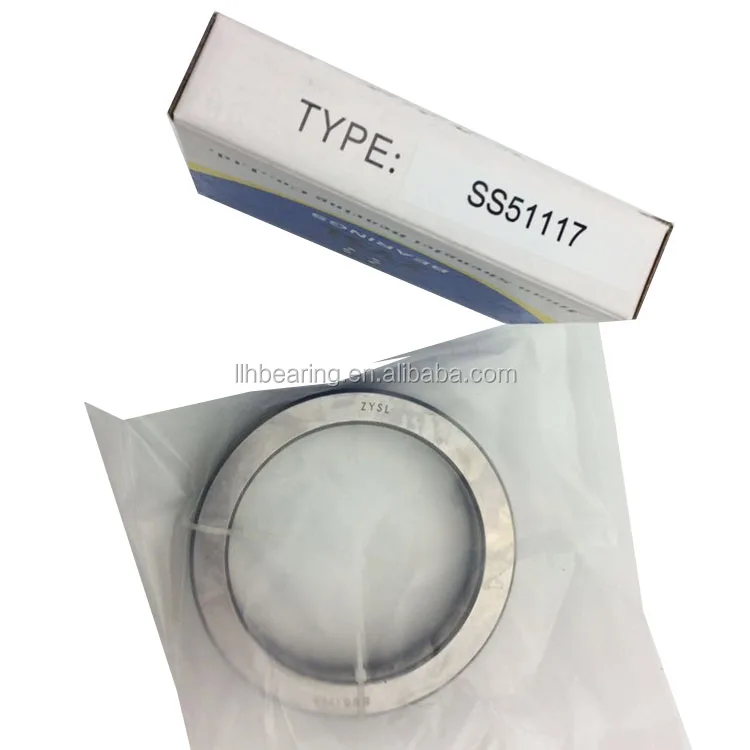

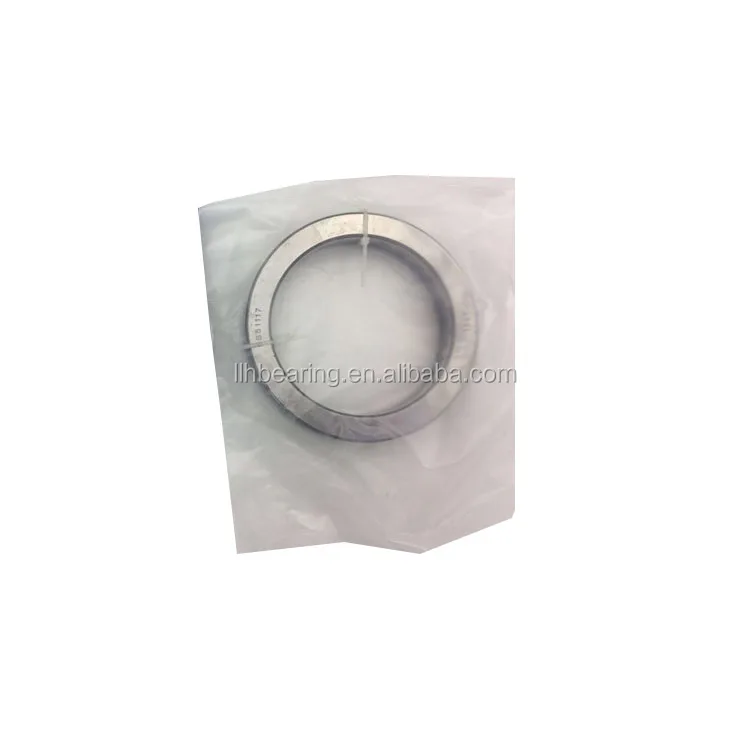

Packaging Details 1.Commercial packaging: 1pc/plastic bag + color box + carton + pallet;
2.Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet; 3.According to the requirement of customer.
- Delivery Time 5-30 days, and also according to the quantity from customer
-
Our strengths:
– 10 years export experience
– Strict quality control
– Delivery in time
– OEM service is available with good prices
– Your success is our business and future
Thrust Ball Bearing
Thrust ball bearings are classfied into those with flat seats or aligning seats depending on the shape of the outer ring sear(housing washer).They can sustain axial loads but no radial loads.
For single-direction Thrust Ball Bearings,pressed steel cages and machined brass cages usually used as shown.The cage in Double-Direction Thrust Ball Bearings are the same as those in Single-Direction Thrust Ball Bearings of the same diamteter series.
Features of thrust ball bearing:
Single direction thrust ball bearings: consist of two washers with raceways, balls guided and cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
– Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
Technical datas of thrust bearing
ItemSize (mm) Weight d D T (kg) 51100 10 24 9 0.02 51200 10 26 11 0.03 51101 12 26 9 0.022 51201 12 28 11 0.034 51102 15 28 9 0.024 51202 15 32 12 0.046 51103 17 30 9 0.028 51203 17 25 12 0.053 51104 20 25 10 0.04 51204 20 40 14 0.082 51304 20 47 18 0.092 51105 25 42 11 0.059 51205 25 47 15 0.12 51305 25 52 18 0.18 51405 25 60 24 0.34 51106 30 47 11 0.068 51206 30 52 16 0.15 51306 30 60 21 0.27 51406 30 70 28 0.53 51107 35 52 12 0.09 51207 35 62 18 0.22 51307 35 68 24 0.39 51407 35 80 32 0.79 51108 40 60 13 0.12 51208 40 68 19 0.27 51308 40 78 26 0.55 51408 40 90 36 1.14 51109 45 65 14 0.15 51209 45 73 20 0.32 51309 45 85 28 0.69 51409 45 100 39 1.47 Application of thrust bearing
thrust bearing is widely used in mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, etc.
Payment terms of thrust bearing:
We accept T/T, PAYPAL or Western Union, credit card
Delivery of thrust bearing:
By express, like TNT, FEDEX, UPS, DHL, or by air/ sea
Main bearing product
Our Company
FAQ
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.Contact Us(I am looking forward to receiving your enquires soon .^ – ^)
Additional information
| Bore Size | 85 mm |
|---|---|
| Outside Diameter | 110 mm |
