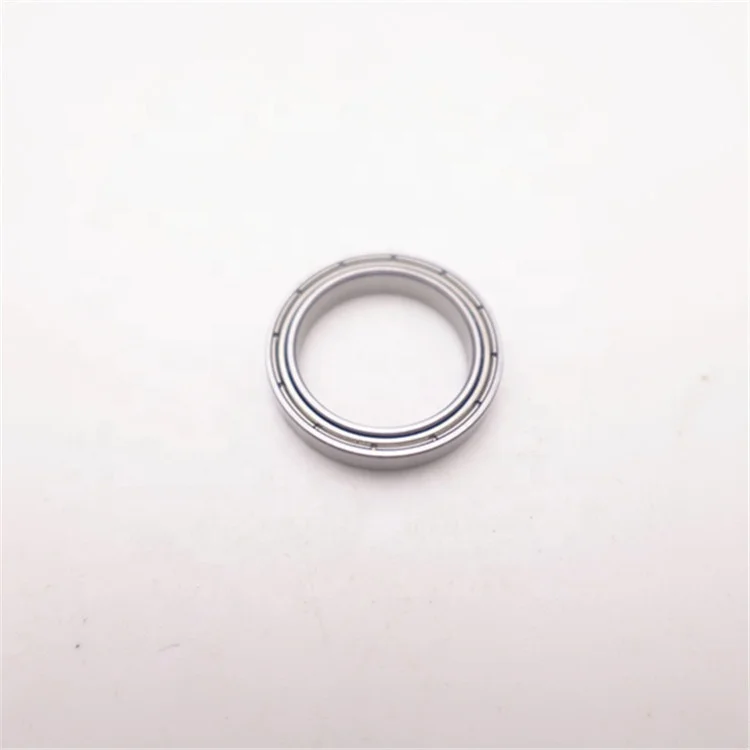

6703 ZZ 6703ZZ 61703ZZ 17*23*4mm Steel Thin Wall Deep Groove Ball Bearing

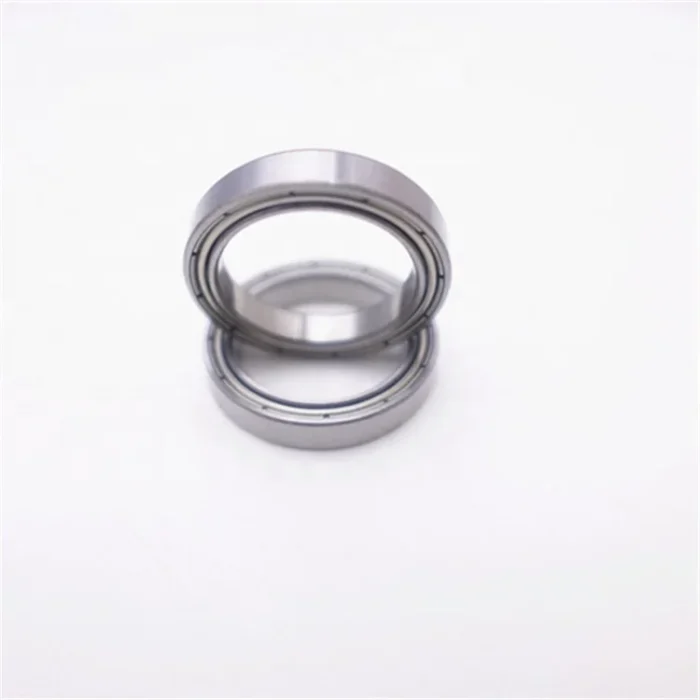

6703 ZZ 6703ZZ 61703ZZ 17*23*4mm Steel Thin Wall Deep Groove Ball Bearing - Image 2

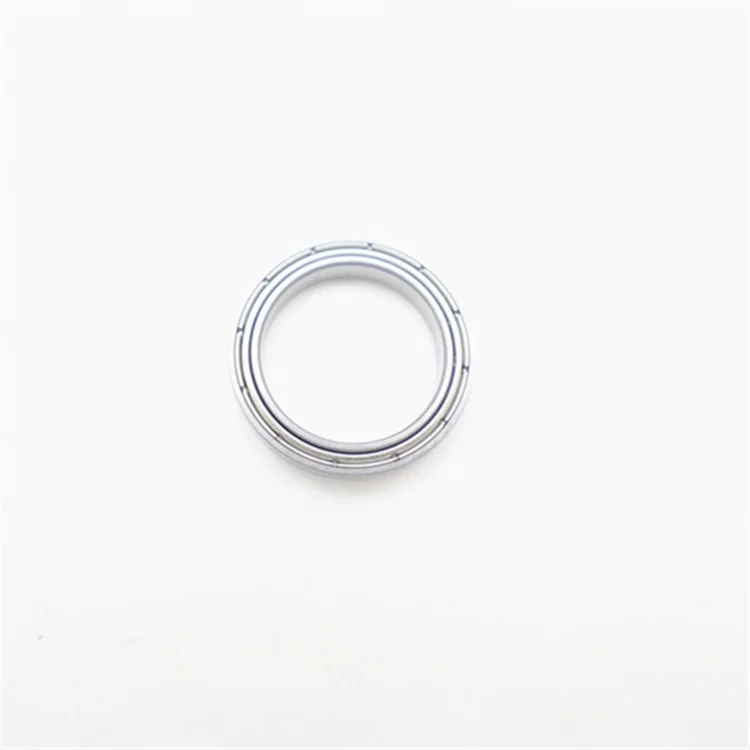

6703 ZZ 6703ZZ 61703ZZ 17*23*4mm Steel Thin Wall Deep Groove Ball Bearing - Image 3

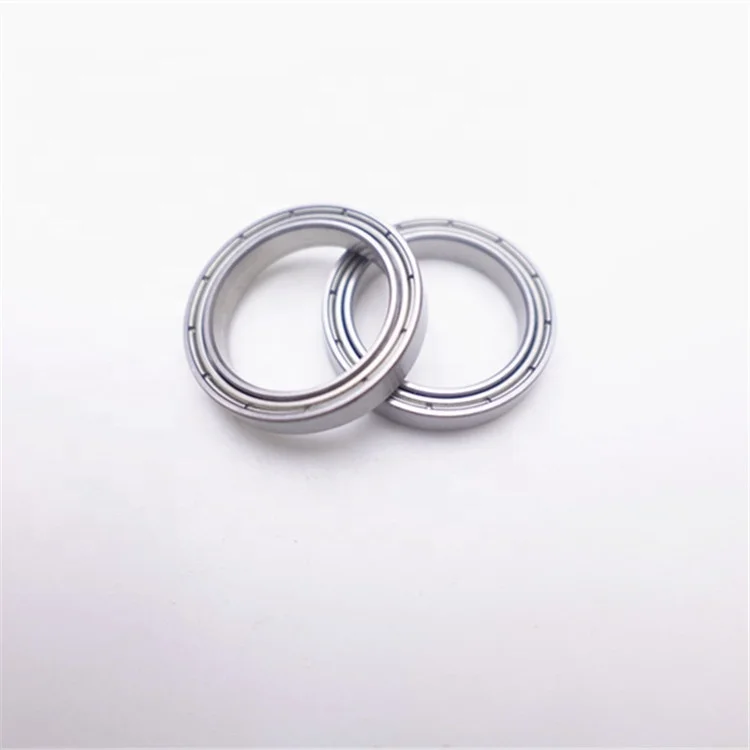

6703 ZZ 6703ZZ 61703ZZ 17*23*4mm Steel Thin Wall Deep Groove Ball Bearing - Image 4

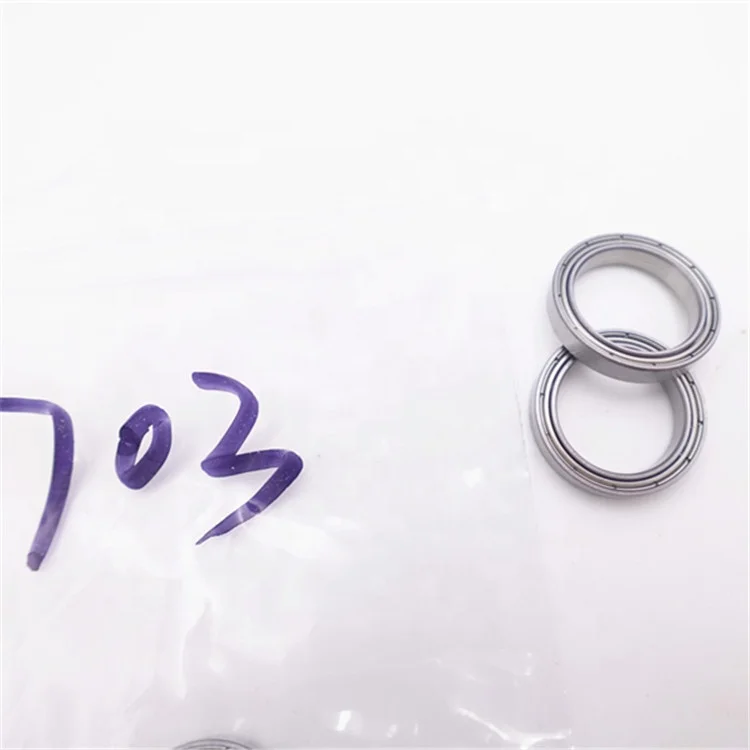

6703 ZZ 6703ZZ 61703ZZ 17*23*4mm Steel Thin Wall Deep Groove Ball Bearing - Image 5

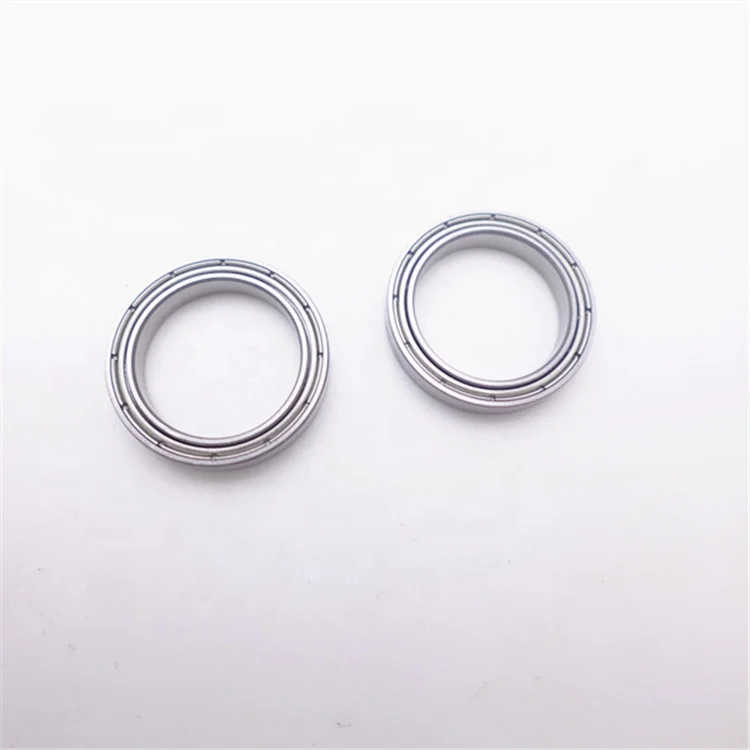

6703 ZZ 6703ZZ 61703ZZ 17*23*4mm Steel Thin Wall Deep Groove Ball Bearing - Image 6

6703 ZZ 6703ZZ 61703ZZ 17*23*4mm Steel Thin Wall Deep Groove Ball Bearing

$5.00 (Shipping Charge Not Included）

SKU: N/A Category:

Description

6703 ZZ 6703ZZ 61703ZZ 17*23*4mm Steel Thin Wall Deep Groove Ball Bearing

Deep Groove Ball Bearing are the most widely used bearing type, especially in electric motors. These non-separable Deep Groove Ball Bearing are suitable for high speeds. The deep uninterrupted raceway grooves have a close osculation with the balls, enabling the Deep Groove Ball Bearing to accommodate radial loads and axial loads in both directions.

Bearing No. Bore Outer Width
d D B
6700 61700 10 15 4
6701 61701 12 18 4
6702 61702 15 21 4
6703 61703 17 23 4
6704 61704 20 27 4
6705 61705 25 32 4
6706 61706 30 37 4
6707 61707 35 44 5
6708 61708 40 50 6
6709 61709 45 55 6
6710 61710 50 62 6

Product show

the other material you may interested

Seal Types:

2RS: sealed by rubber on both sides.
ZZ: sealed by steel on both sides.
Open: without shield on any side.
Related model numbers:
6700 6701 6702 6703 6704 6705 6706 6707 6708 6709 6710 6711 6712 16001 16003 16004 16005 16006 16007 16008 16009 16010 16011 16012 16013 16014 16015 16016 16017 16018 16019 16020 16021 16022 16024 16026 16028 16030 16032 16034 16036 16038 16040 16044 16048 16052 16056 16060 16064 16068 16072 61800 61801 61802 61803 61804 61805 61806 61807 61808 61809 61810 61811 61812 61813 61814 61815 61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838 61840 61844 61848 61852 61856 61860 61864 61868 61872 61876 61880 61884 61888 61892 61896 61900 61901 61902 61903 61904 61905 61906 61907 61908 61909 61910 61911 61912 61913 61914 61915 61916 61917 61918 61919 61920 61921 61922 61924 61926 61928 61930 61932 61934 61936 61938 61940 61944 61948 61952 61956 61960 61964 61968 61972 61976 61980 61984 61988 61992 61996
Bearing for bike bicycle model No : 6800-2RS,6801-2RS,6802-2RS,6803-2RS,6804-2RS,6805-2RS,6806-2RS,61800 6800,15267, 15268, 17287, 18307, 163110, MR2437 6805 ,15267-2RS,15268-2RS,17287-2RS,18307-2RS,163110 2RS,6805N(25*37*6),MR2437(24*37*7),MR24378(24*37*8),173110-2RS,16277-2RS,16287-2RS,19327-2RS,15267-2RS,15268-2RS,17287-2RS,MR2437-2RS,6805N-2RS.

the other model deep groove ball bearing you may interested

Series No.
Some Deep Groove Ball Bearing Model Sizes
1) 6000 series:
604.605.606.607.608.609.6000.6001.6002.6003.6004.6005.6006.6007.6008.6009.6010.6011.6012
2) 6200 series:
624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.6208.6209.6210.6211.6212
3) 6300 series:
634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.6308.6309.6310.6311.6312
4) 6400 series:
6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420
5) 6700 series:
673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705
6) 6800 series:
685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812
7) 6900 series:
695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912
8)16000 series:
16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015
9)R series:
R2. R3. R4. R6 R8. R10. R144. R166. R188. rls22zz
Packaging & Shipping

 Package:

A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.



Shipping Method:

1. for sample: By express courier, such as DHL, FeDex, UPS, TNT, EMS etc.

2.for large goods: By Air, by Land or by Sea.

P

Company Information

 Jinan Maolei Bearing CO.,LTD is a professional bearing manufacturer and trade company. We have served more than 100 countries in the past 10 years, we can provide various kind of bearings with high quality,low price,short delivery time.

The product include deep groove ball bearing, self-aligning ball bearing, self-aligning roller bearing, cylindrical roller bearing, tapered roller bearing, insert bearing & pillow block bearing,needle bearing and etc.

We can offer customized service to meet customers’ requirements.

We welcome customers from all over the world to establish business relations and cooperate with us.

We committed to be your reliable bearing supplier.



our company main products

Additional information

Brand Name

YBW Bearing
Outside Diameter

23MM
