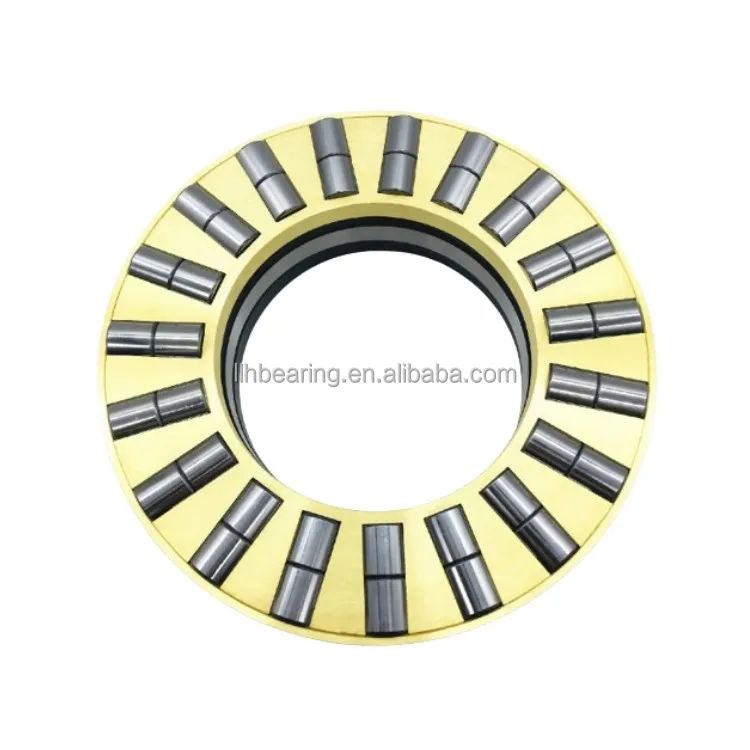

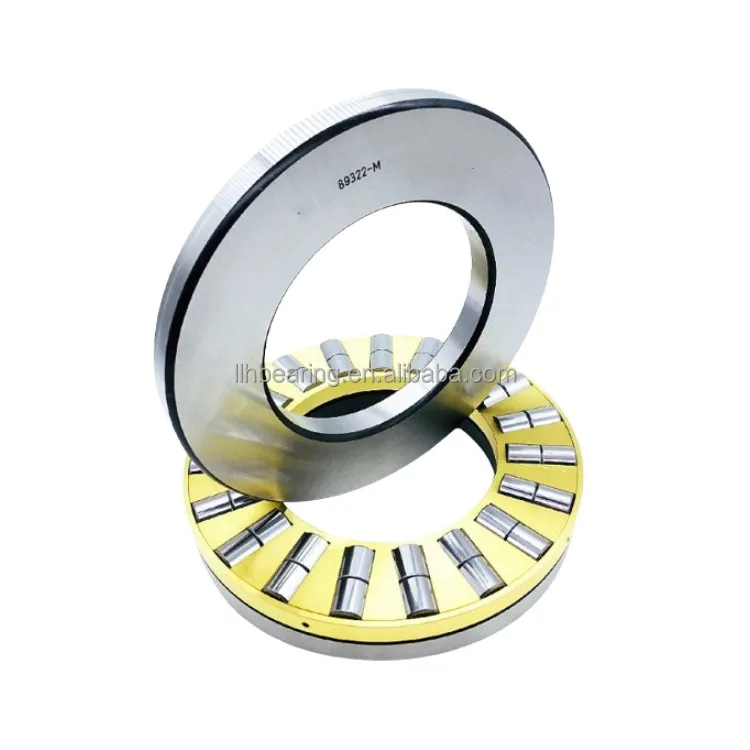

89322M Rolling Mill Cylindrical Thrust Roller Bearings 89322 with Brass Cage 110x190x48 mm
$50.00 (Shipping Charge Not Included)
Description
Double row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
* High axial load carrying capacity
* High stiffness
* Long service life
* Require little axial space
* Separable design
110 mm
|
Bore diameter
|
190 mm
|
Outside diameter
|
48 mm
|
Height
|
190 mm
|
Outside diameter shaft washer
|
113 mm
|
Bore diameter housing washer
|
16.5 mm
|
Height shaft washer
|
min.2 mm
|
Chamfer dimension housing washer
|
Related Products
Bearing No.
|
d
|
D
|
T
|
mm
|
mm
|
mm
|
|
89306-TV
|
30
|
60
|
18
|
89307-TV
|
35
|
68
|
20
|
89308-TV
|
40
|
78
|
22
|
89309-TV
|
45
|
85
|
24
|
89310-TV
|
50
|
95
|
27
|
89311-TV
|
55
|
105
|
30
|
89312-TV
|
60
|
110
|
30
|
89313-TV
|
65
|
115
|
30
|
89314-TV
|
70
|
125
|
34
|
89315-TV
|
75
|
135
|
36
|
89316-TV
|
80
|
140
|
36
|
89317-M
|
85
|
150
|
39
|
89318-M
|
90
|
155
|
39
|
89320-M
|
100
|
170
|
42
|
89322-M
|
110
|
190
|
48
|
89324-M
|
120
|
210
|
54
|
89326-M
|
130
|
225
|
58
|
89328-M
|
140
|
240
|
60
|
89330-M
|
150
|
250
|
60
|
89412-TV
|
60
|
130
|
42
|
89413-TV
|
65
|
140
|
45
|
89414-TV
|
70
|
150
|
48
|
89415-M
|
75
|
160
|
51
|
89416-M
|
80
|
170
|
54
|
89417-M
|
85
|
180
|
58
|
89418-M
|
90
|
190
|
60
|
89420-M
|
100
|
210
|
67
|
89422-M
|
110
|
230
|
73
|
89424-M
|
120
|
250
|
78
|
89426-M
|
130
|
270
|
85
|
89428-M
|
140
|
280
|
85
|
89430-M
|
150
|
300
|
90
|
89432-M
|
160
|
320
|
95
|
89434-M
|
170
|
340
|
103
|
89436-M
|
180
|
360
|
109
|
89438-M
|
190
|
380
|
115
|
89440-M
|
200
|
400
|
122
|
89444-M
|
220
|
420
|
122
|
89448-M
|
240
|
440
|
122
|
89452-M
|
260
|
480
|
132
|
89456-M
|
280
|
520
|
145
|
89460-M
|
300
|
540
|
145
|
89464-M
|
320
|
580
|
155
|
Certificate
Additional information
Bore Size | 110mm |
---|---|
Outside Diameter | 190mm |
