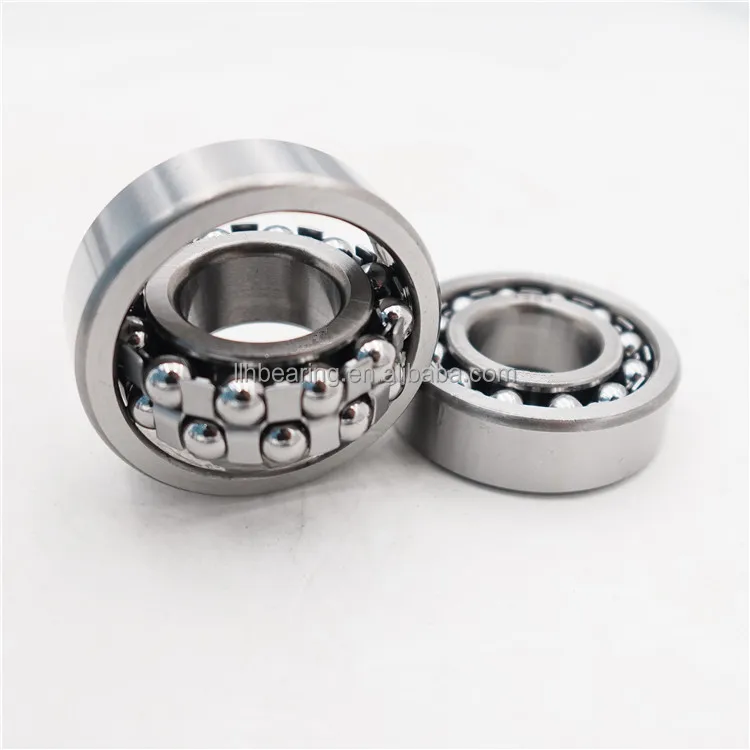

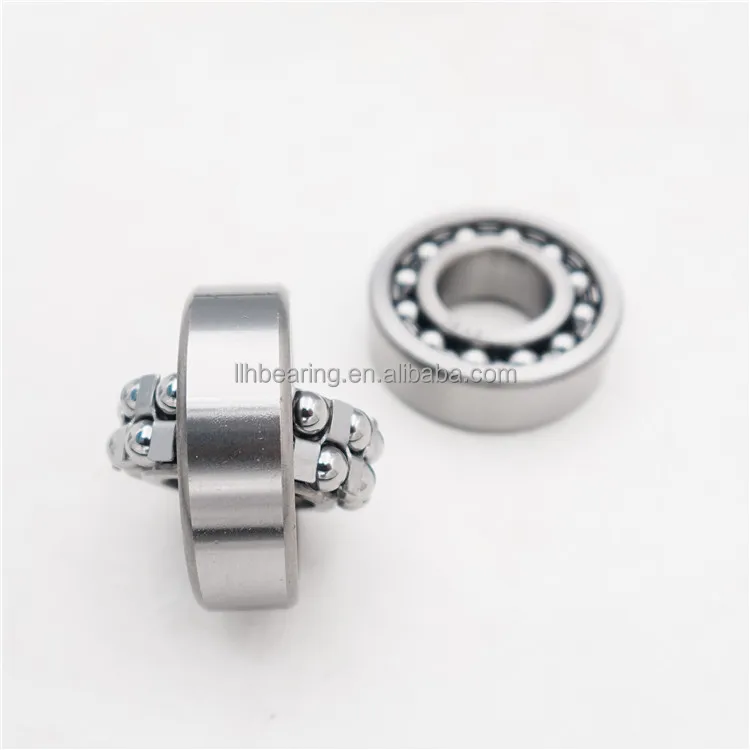

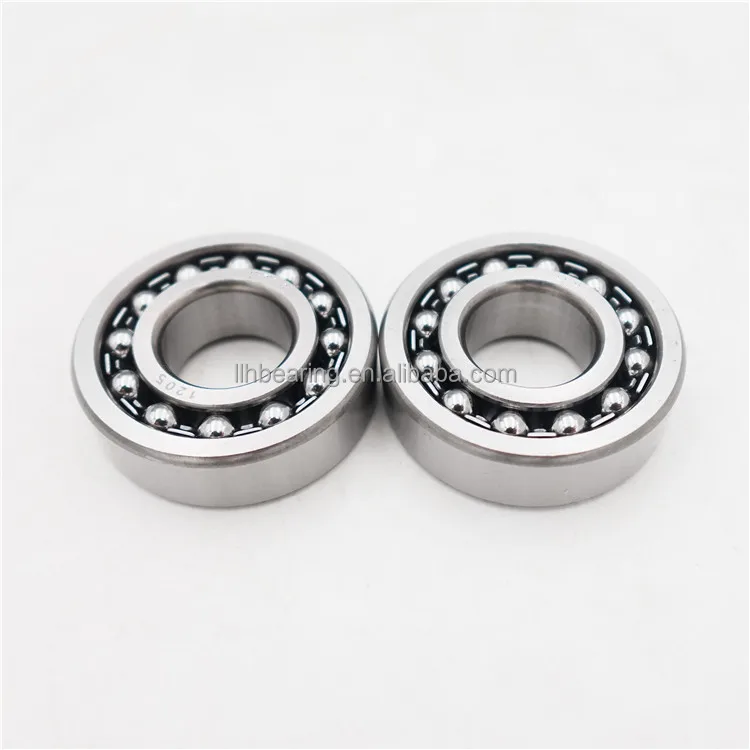

Double Row Self-aligning Ball Bearing 1205 K High Speed 1205K Size 25*52*15mm
Double Row Self-aligning Ball Bearing 1205 K High Speed 1205K Size 25*52*15mm - Image 2
Double Row Self-aligning Ball Bearing 1205 K High Speed 1205K Size 25*52*15mm - Image 3
Double Row Self-aligning Ball Bearing 1205 K High Speed 1205K Size 25*52*15mm - Image 4
Double Row Self-aligning Ball Bearing 1205 K High Speed 1205K Size 25*52*15mm - Image 5
Double Row Self-aligning Ball Bearing 1205 K High Speed 1205K Size 25*52*15mm - Image 6

Double Row Self-aligning Ball Bearing 1205 K High Speed 1205K Size 25*52*15mm

$1.80 (Shipping Charge Not Included）

SKU: N/A Category: Tag:

Description

Packaging & Shipping



Self-aligning Ball Bearing Information:
  In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis. Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.

Features of self-aligning ball bearing:
1:Retainer: Brass/Nylon/Steel as your requirement
2:Single direction
3:Restricted tolerances
4:Vibration resistance
5:Suitable for high speed
6:Radial load Product
Product Name 1205 self aligning ball bearing
cage Material steel cage
Bearing Material Chrome Steel GCr15
Size 25*52*15mm
Number of Rows double row
Service OEM, Customization




Number
Specification
Speed(r/min)
Weight
d(mm)
D(mm)
B(mm)
Grease
Oil
kg
1200
10
30
9
22000
28000
0.033
1201
12
32
10
22000
26000
0.039
1202
15
35
11
18000
22000
0.051
1203
17
40
12
16000
20000
0.072
1204
20
47
14
14000
17000
0.12
1205
25
52
15
12000
14000
0.14
1206
30
62
16
10000
12000
0.22
1207
35
72
17
8500
10000
0.32
1208
40
80
18
7500
9000
0.415
1209
45
85
19
7100
8500
0.465
1210
50
90
20
6300
8000
0.525

 Our Services

1.High speed,High Precision,Low Noise,Long Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8.Our company insists on the “quality first, credit first” business ideas and our product specification is well-founded.We have a good reputation in the international market by our perfect serviceand sufficient supply.

Package:  tube package+outer carton+pallets
                 single box+outer carton+pallets
                 tube package+middle box+outer carton+pallets
                 According to your request

        FAQ

1. How long is your delivery term?

Our standard product delivery term is normally 30 days.A new product development cycle is 60 days in normal.Under normal circumstances,there are standing stock for regular types.

2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.

3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.

Contact person:



Additional information

Bore Size

25mm
Outside Diameter

52mm
