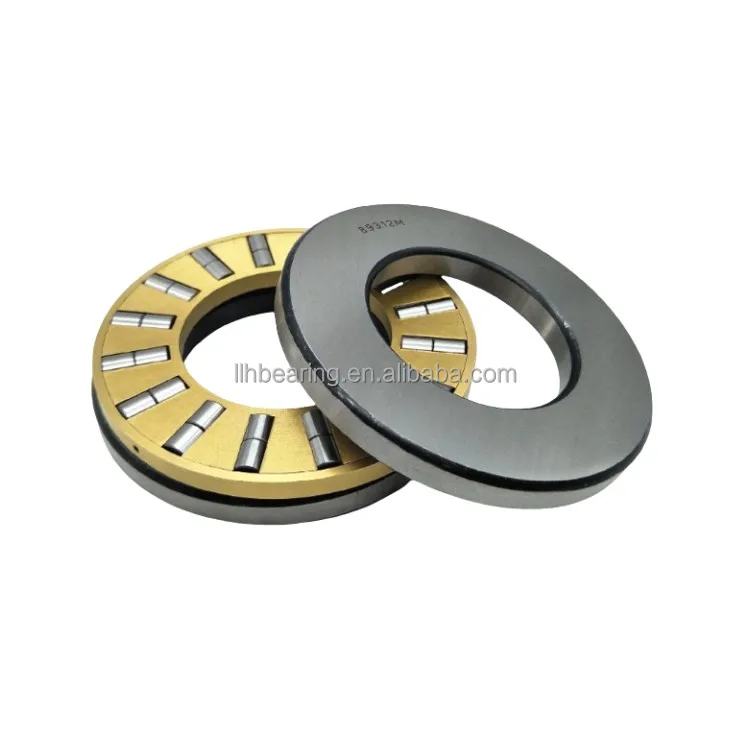

Factory 89312M Single Direction Petroleum Bearings 89312 Thrust Roller Bearings With Brass Cage 60x110x30mm 89312-TV
$12.00 (Shipping Charge Not Included）
Description
Double row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged. * High axial load carrying capacity
* High stiffness
* Long service life
* Require little axial space
* Separable design
|
60 mm
|
Bore diameter
|
|
110 mm
|
Outside diameter
|
|
30 mm
|
Height
|
|
110 mm
|
Outside diameter shaft washer
|
|
62 mm
|
Bore diameter housing washer
|
|
10.5 mm
|
Height shaft washer
|
|
min.1.1 mm
|
Chamfer dimension housing washer
|
Related Products
|
Bearing No.
|
d
|
D
|
T
|
|
mm
|
mm
|
mm
|
|
|
89306-TV
|
30
|
60
|
18
|
|
89307-TV
|
35
|
68
|
20
|
|
89308-TV
|
40
|
78
|
22
|
|
89309-TV
|
45
|
85
|
24
|
|
89310-TV
|
50
|
95
|
27
|
|
89311-TV
|
55
|
105
|
30
|
|
89312-TV
|
60
|
110
|
30
|
|
89313-TV
|
65
|
115
|
30
|
|
89314-TV
|
70
|
125
|
34
|
|
89315-TV
|
75
|
135
|
36
|
|
89316-TV
|
80
|
140
|
36
|
|
89317-M
|
85
|
150
|
39
|
|
89318-M
|
90
|
155
|
39
|
|
89320-M
|
100
|
170
|
42
|
|
89322-M
|
110
|
190
|
48
|
|
89324-M
|
120
|
210
|
54
|
|
89326-M
|
130
|
225
|
58
|
|
89328-M
|
140
|
240
|
60
|
|
89330-M
|
150
|
250
|
60
|
|
89412-TV
|
60
|
130
|
42
|
|
89413-TV
|
65
|
140
|
45
|
|
89414-TV
|
70
|
150
|
48
|
|
89415-M
|
75
|
160
|
51
|
|
89416-M
|
80
|
170
|
54
|
|
89417-M
|
85
|
180
|
58
|
|
89418-M
|
90
|
190
|
60
|
|
89420-M
|
100
|
210
|
67
|
|
89422-M
|
110
|
230
|
73
|
|
89424-M
|
120
|
250
|
78
|
|
89426-M
|
130
|
270
|
85
|
|
89428-M
|
140
|
280
|
85
|
|
89430-M
|
150
|
300
|
90
|
|
89432-M
|
160
|
320
|
95
|
|
89434-M
|
170
|
340
|
103
|
|
89436-M
|
180
|
360
|
109
|
|
89438-M
|
190
|
380
|
115
|
|
89440-M
|
200
|
400
|
122
|
|
89444-M
|
220
|
420
|
122
|
|
89448-M
|
240
|
440
|
122
|
|
89452-M
|
260
|
480
|
132
|
|
89456-M
|
280
|
520
|
145
|
|
89460-M
|
300
|
540
|
145
|
|
89464-M
|
320
|
580
|
155
|
Additional information
| Bore Size | 60mm |
|---|---|
| Outside Diameter | 110mm |
