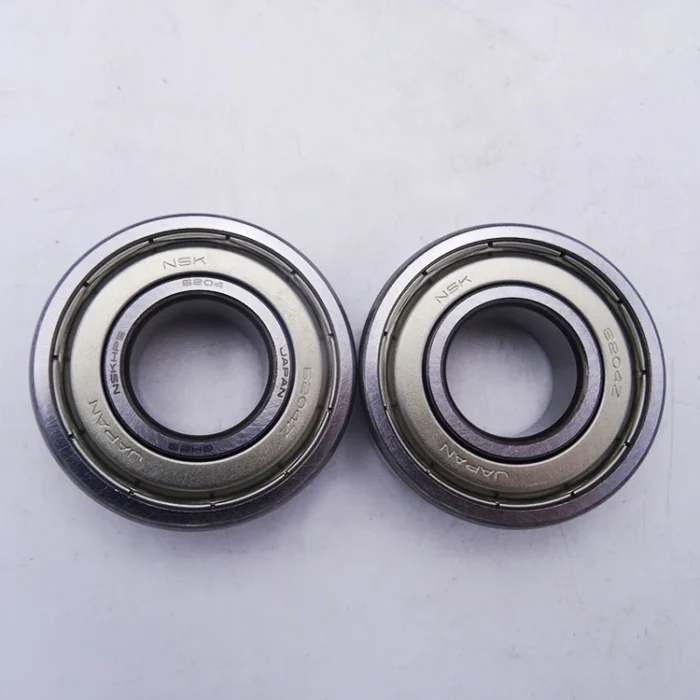

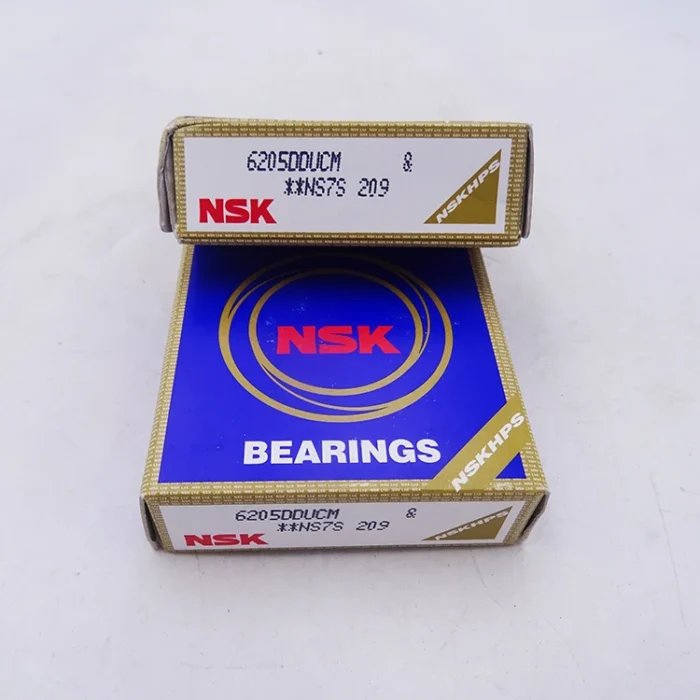

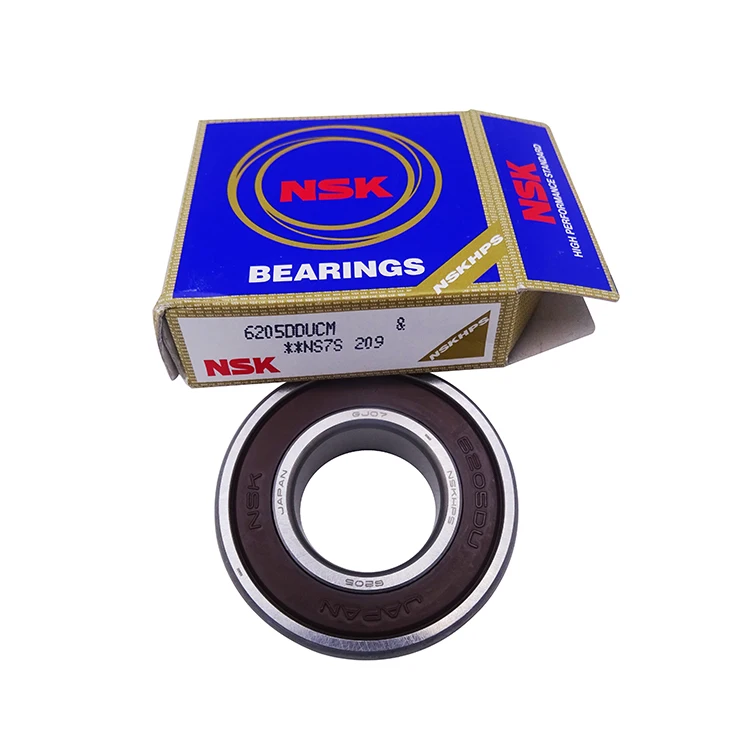

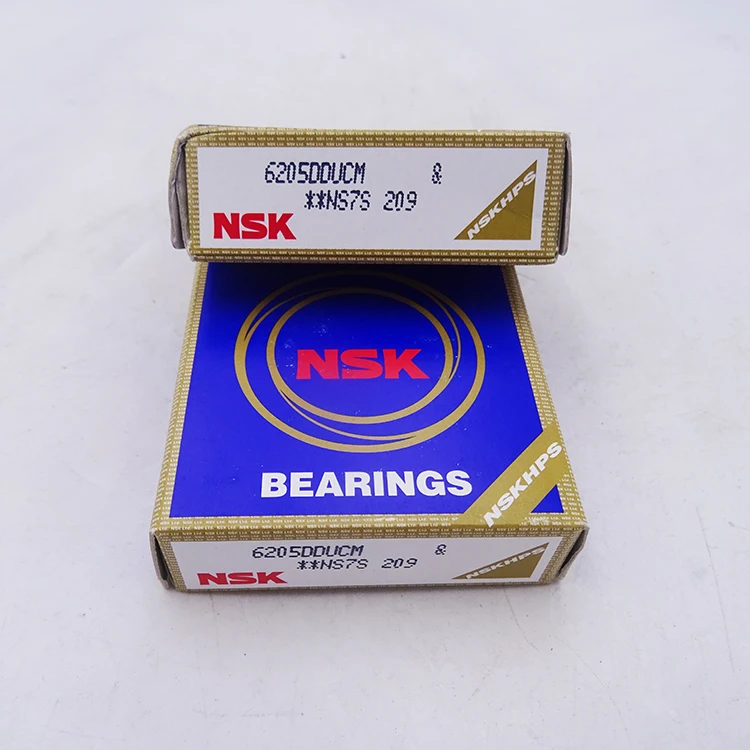

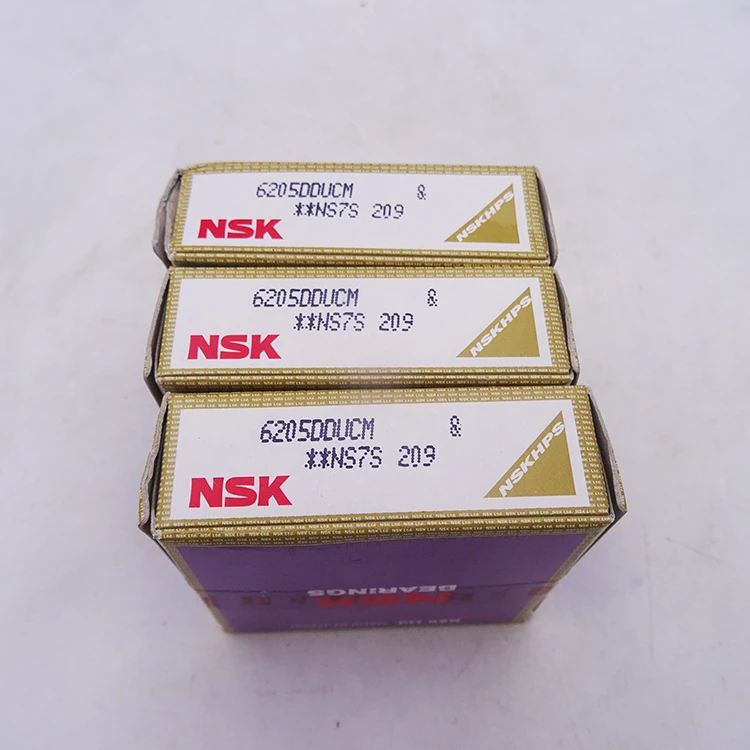

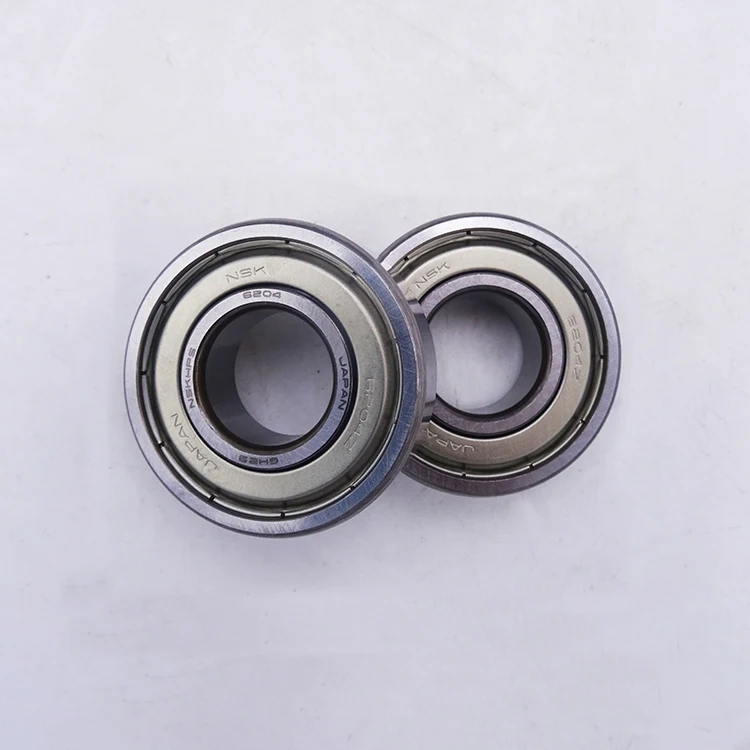

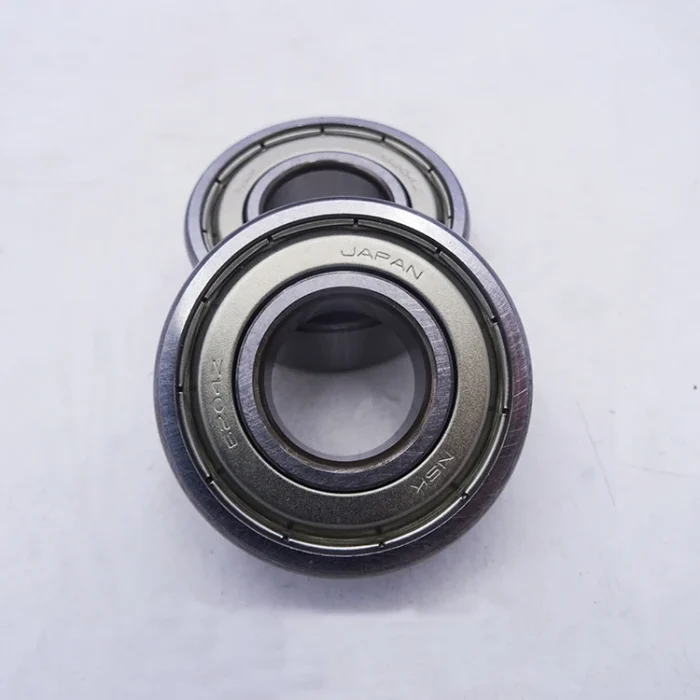

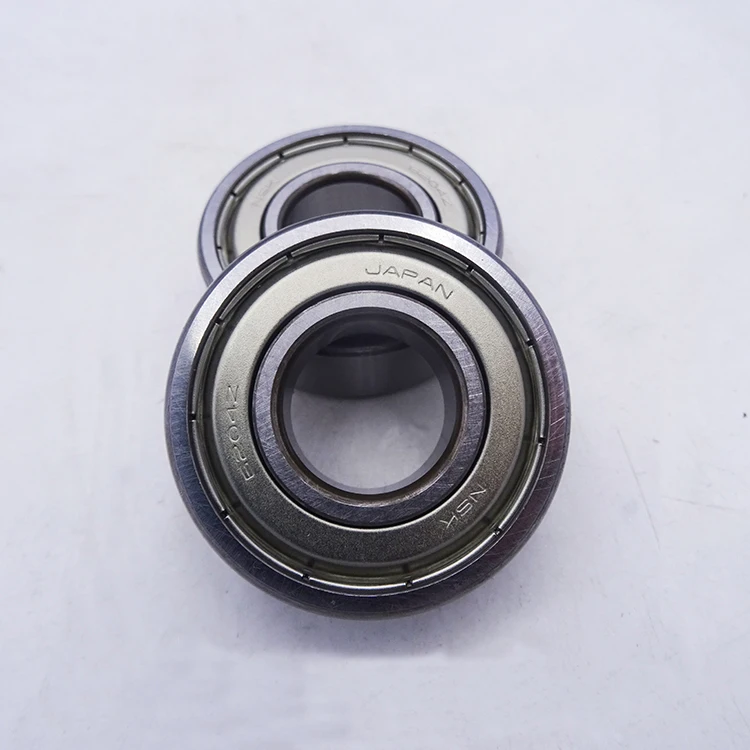

Free Samples of Original NSK 6204ZZCM 6205DDUCM Deep groove Ball Bearing
Free Samples of Original NSK 6204ZZCM 6205DDUCM Deep groove Ball Bearing - Image 2
Free Samples of Original NSK 6204ZZCM 6205DDUCM Deep groove Ball Bearing - Image 3
Free Samples of Original NSK 6204ZZCM 6205DDUCM Deep groove Ball Bearing - Image 4
Free Samples of Original NSK 6204ZZCM 6205DDUCM Deep groove Ball Bearing - Image 5
Free Samples of Original NSK 6204ZZCM 6205DDUCM Deep groove Ball Bearing - Image 6

Free Samples of Original NSK 6204ZZCM 6205DDUCM Deep groove Ball Bearing

$2.83 (Shipping Charge Not Included）

SKU: N/A Category:

Description

NSK Deep groove ball bearing formerly known as single row centripetal ball bearing is the most widely used rolling bearing. It’s characteristics are small friction resistance, high speed, can be used to bear radial load or radial and axial combined load on the parts, can also be used to bear axial load on the parts.

Features and benefits

* Low friction and running temperatures, low noise and vibration
* High running speeds
* High quality and performance capabilities for your application
* Accommodate radial loads and axial loads in both directions
* Available with a variety of greases for most conditions, including food quality grease, high temperature grease and Solid Oil
* Increased reliability and provide long bearing and lubricant service life



APPLICATION:
These Bearings are used in several different industries and machines, they are widely used in automation, machine construction, agricultural machines, food industry, conveyor technology and industry as well as other industries that need high carrying capacity.

Part NO. Boundary dimension(mm) Basic load ratings (lbf) Weight(Ib)
KG		 Limiting speed (min-1)
d D B Dynamic(Cr) Static(Cor) Grease Oil
604 4 12 4 0.2 0.36 0.0021 36000 44000
605 5 14 5 0.2 0.505 0.0035 32000 40000
606 6 17 6 0.3 0.865 0.006 30000 38000
607 7 19 6 0.3 0.91 0.008 28000 36000
608 8 22 7 0.3 1.4 0.012 26000 34000
609 9 24 7 0.3 1.45 0.014 24000 32000
6000 10 26 8 0.3 1.96 0.019 22000 30000
6001 12 28 8 0.3 2.39 0.021 19000 26000
6002 15 32 9 0.3 2.83 0.03 18000 24000
6003 17 35 10 0.3 3.35 0.039 17000 22000
6004 20 42 12 0.6 5.05 0.069 15000 19000
6005 25 47 12 0.6 5.85 0.08 14000 18000
6006 30 55 13 0.6 8.3 0.116 12000 15000
6007 35 62 14 1.0 10.3 0.115 10000 14000
6008 40 68 15 1.0 11.5 0.19 8000 11000
6009 45 75 16 21.0 14.8 0.23 8000 10000
6010 50 80 16 22.0 16.2 0.25 7000 9000
624 4 13 5 1.15 0.400 0.0032 36000 45000
625 5 16 5 1.76 0.680 0.005 32000 40000
626 6 19 6 2.34 0.885 0.008 28000 36000
627 7 22 7 3.35 1.400 0.013 26000 34000
628 8 24 8 4.00 1.590 0.017 24000 32000
629 9 26 8 4.55 1.960 0.019 22000 30000
6200 10 30 9 5.1 2.39 0.032 20000 26000
6201 12 32 10 6.82 3.05 0.037 19000 24000
6202 15 35 11 7.65 3.72 0.045 18000 22000
6203 17 40 12 9.58 4.78 0.065 16000 20000
6204 20 47 14 12.8 6.65 0.106 14000 18000
6205 25 52 15 14 7.85 0.128 13000 15000
6206 30 62 16 19.5 11.3 0.199 11000 13000
6207 35 72 17 25.7 15.4 0.288 9200 11000
6208 40 80 18 29.5 18 0.368 8000 10000
6209 45 85 19 31.5 20.5 0.416 7000 9000
6210 50 90 20 35 23.2 0.463 6700 8500
6211 55 100 21 43.2 29.2 0.603 6000 7500
6212 60 110 22 47.8 32.8 0.789 5600 7000
6213 60 120 23 57.2 40 0.99 5000 6300
6214 70 125 24 60.8 45 1.084 4800 6000
6215 75 130 25 66 49.5 1.171 4500 5600
6216 80 140 26 71.5 54.2 1.448 4300 5300
6217 85 150 28 83.2 63.8 1.803 4000 5000
6218 90 160 30 95.8 71.5 2.17 3800 4800
6219 95 170 32 110 82.8 2.62 3600 4500
6220 100 180 34 122 92.8 3.19 3400 4300
6221 105 190 36 133 105 3.78 3200 4000
6300 10 35 11 8.2 3.5 0.053 18000 24000
6301 12 37 12 9.7 4.2 0.06 17000 22000
6302 15 42 13 11.4 5.45 0.082 16000 20000
6303 17 47 14 13.5 6.55 0.115 15000 19000
6304 20 52 15 15.9 7.9 0.144 14000 17000
6305 25 62 17 17.22 11.39 0.2193 10000 13000
6306 30 72 19 20.77 14.17 0.3498 8000 10000
6307 35 80 21 25.66 17.92 0.4542 6800 8000
6308 40 90 23 31.35 22.88 0.6394 5800 7200
6309 45 100 25 40.66 30.00 0.8363 5000 6200
6310 50 110 27 47.58 35.71 1.0822 4400 5500
6311 55 120 29 71.5 44.50 1.37 5600 6700
6312 60 130 31 82 52.00 1.72 5300 6300
6313 65 140 33 92.5 60.00 2.11 4800 6000
6314 70 150 35 104 68.00 2.57 4500 5300
6315 75 160 37 113 77.00 3.08 4300 5000
