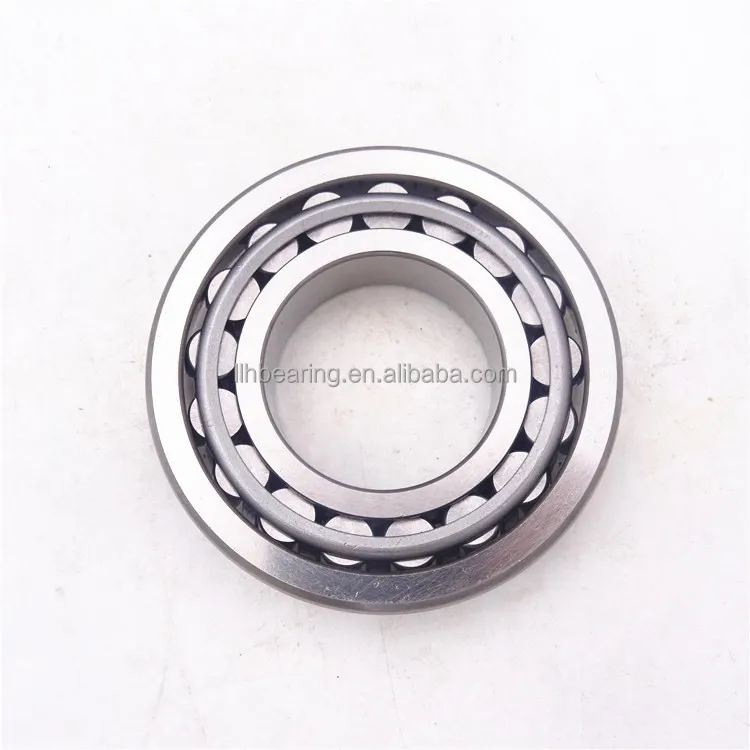

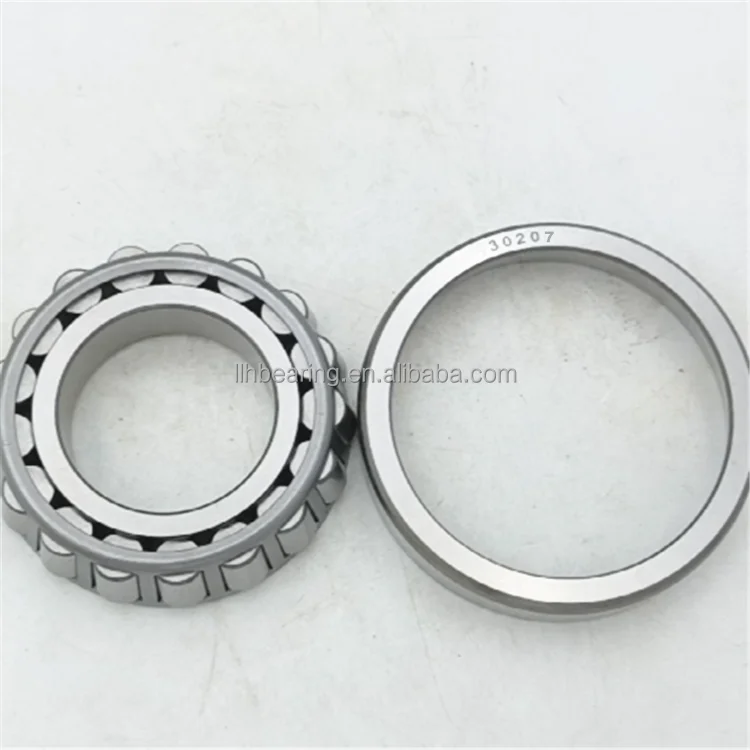

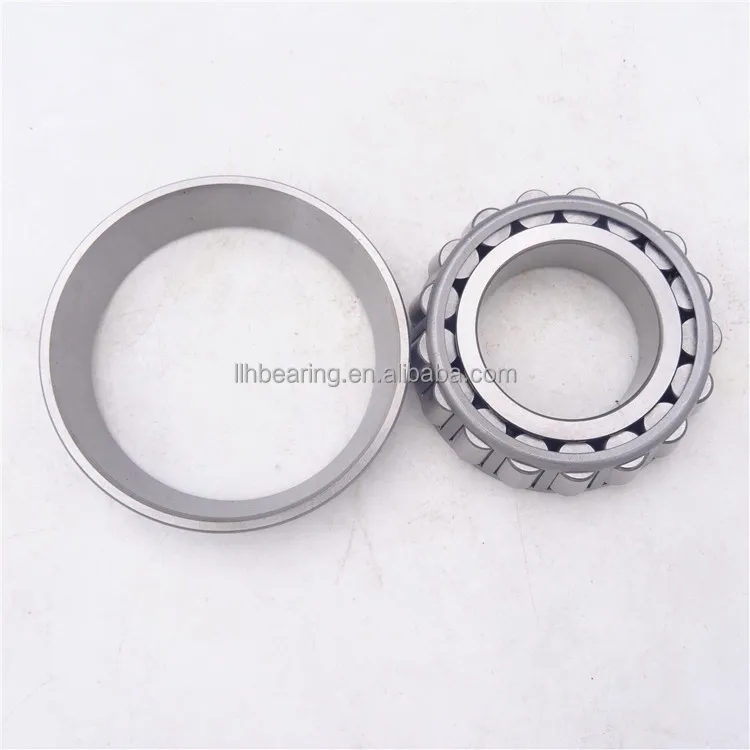

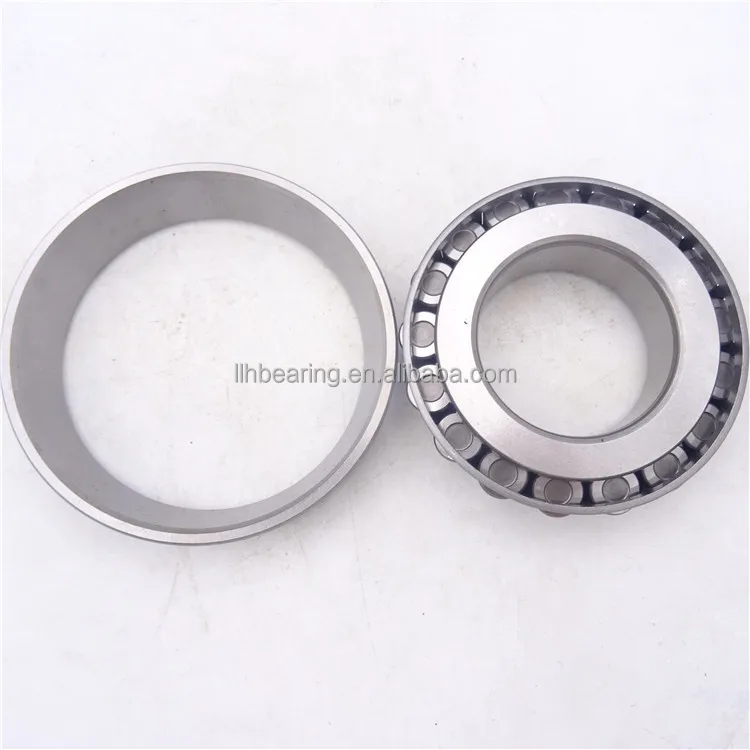

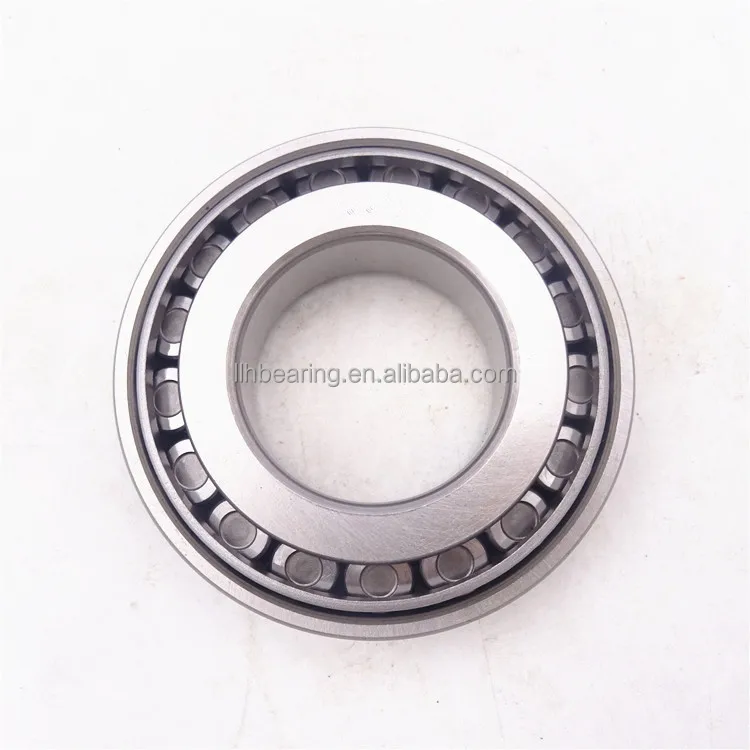

High Quality 30207JR Tapered Roller Bearing 30207 Auto Reducer Bearings HR30207J Rodamiento
$1.80 (Shipping Charge Not Included）
Description
PRODUCT SPECIFICATION
Taper roller bearing the angle between the outer raceway generator and line, the bearing can bearing heavy load and other Tapered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of
functions.
|
type
|
Tapered Roller bearing
|
|
model number
|
30207
|
|
size
|
35*72*18.25mm
|
|
seals type
|
open
|
|
mass(kg)
|
0.32
|
|
application
|
Automotive.tractor.construction Machinery.rolling Mill
|
|
features
|
good quality,low noise,long life
|
|
service
|
OEM and customized service
|
Brief introduction :
·High load,
·Long service life,
·High precision,
·High speed,
·Low noise
Application of tapered roller bearing:
Tapered roller bearings are more and more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, equipment, robots, tools, machinery, cnc machine , automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry being.
Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.
Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.
|
Specification
|
Boundary dimensions(mm)
|
Mass(kg)
|
||||
|
d
|
D
|
B
|
||||
|
LM300849/LM300811
|
41.000
|
68.000
|
17.500
|
0.2420
|
||
|
33275/33462
|
69.850
|
117.475
|
30.162
|
1.2720
|
||
|
33281/33462
|
71.438
|
117.475
|
30.162
|
1.2310
|
||
|
33889/33821
|
50.800
|
95.250
|
27.783
|
0.8680
|
||
|
33287/33462
|
73.025
|
117.475
|
30.162
|
1.1880
|
||
|
368A/362A
|
50.800
|
88.900
|
20.638
|
0.5040
|
||
|
368/362
|
50.800
|
90.000
|
20.000
|
0.5620
|
||
|
3780/3720
|
50.800
|
93.254
|
30.162
|
0.8560
|
||
|
3782/3720
|
44.450
|
93.264
|
30.162
|
0.9700
|
||
|
387A/382A
|
57.150
|
96.838
|
21.000
|
0.5990
|
||
|
39585/39520
|
63.500
|
112.712
|
30.162
|
1.2580
|
||
|
2580/2523
|
31.750
|
69.850
|
23.812
|
0.4510
|
||
|
28985/28921
|
60.325
|
100.00
|
25.400
|
0.7700
|
||
|
47686/47620
|
82.550
|
133.350
|
33.338
|
1.7570
|
||
|
47687/47620
|
82.550
|
133.350
|
33.338
|
1.7370
|
||
|
387A/362S
|
57.150
|
96.838
|
25.400
|
0.6690
|
||
|
387A/382
|
57.150
|
98.425
|
21.000
|
0.6460
|
||
|
3982/3920
|
63.500
|
112.712
|
30.162
|
1.2430
|
||
|
3984/3920
|
66.675
|
112.712
|
30.162
|
1.1660
|
||
|
462/453X
|
57.150
|
104.775
|
30.162
|
1.0700
|
||
|
L44643/L44610
|
25.400
|
50.292
|
14.224
|
0.1290
|
||
|
L44649/L44610
|
26.988
|
50.292
|
14.224
|
0.1200
|
||
|
L45449/L45410
|
29.000
|
50.292
|
14.224
|
0.1150
|
||
|
LM48548/LM48510
|
34.925
|
65.088
|
18.034
|
0.2590
|
||
A: tube package + outer carton + pallets
B: single box + outer carton + pallets
C: tube package + middle box + outer carton + pallets
D: According to your request
air/sea transportation&international express
OUR SERVICE
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the “quality first, credit first” business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to
the”people-oriented”and”advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.
FAQ
A: We are the manufacture of bearings for more than 20 years, “Quality is our culture”.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What causes bearing noise?
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q: What is your terms of payment?
A.100%T/T
B.30%T/T in advance,70% against copy of B/L(For large order)
C.Western Union
D.Paypal
Before you order online,please contact us to get more discount !
Additional information
| Bore Size | 35 mm |
|---|---|
| Outside Diameter | 72 mm |
