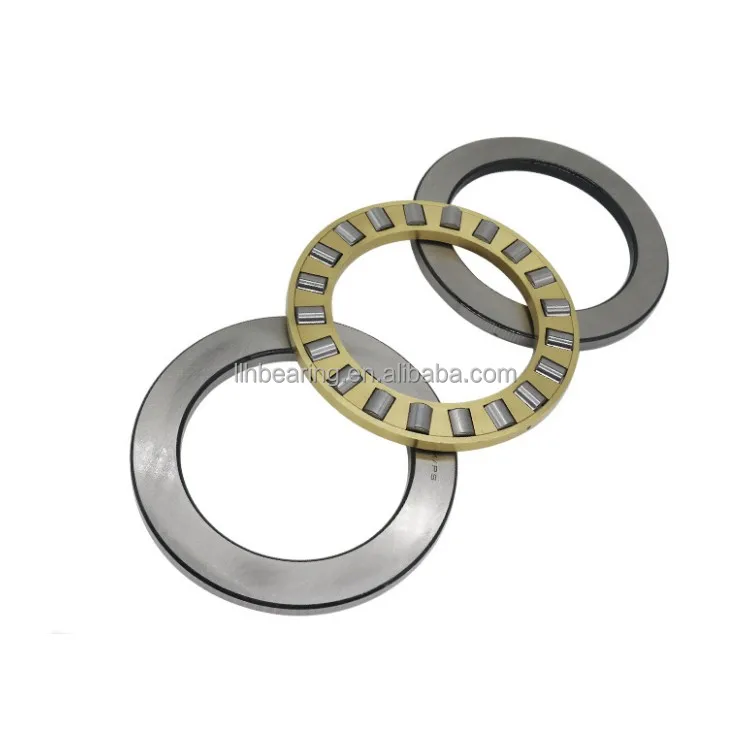

High Quality 81226M Cylindrical Roller Thrust Bearings 81226 with Brass Cage Size 130x190x45mm

High Quality 81226M Cylindrical Roller Thrust Bearings 81226 with Brass Cage Size 130x190x45mm

$22.10 (Shipping Charge Not Included）

SKU: N/A Category: Tags: ,

Description

Thrust ball bearing is designed to withstand the thrust load at high speed, and is composed of gasket ring with ball rolling groove.Because the ring is a cushion form, the thrust ball bearing is divided into two types: flat base cushion type and aligning spherical seat cushion type.In addition, this bearing can withstand axial load, but cannot bear radial load.



Thrust Roller Bearings are available with cylindrical or spherical rollers. Thrust bearings sustain only axial loads, but have high axial rigidity which are suitable for heavy loads. They contain convex rollers, have a self-aligning capability and are free of any influence of shaft deflection or mounting error. Machined brass cage with the E-type offered are standard with a pressed cage for high load capacity.

Code Dimension Load rating Weight ≈
static dynamic
  d
mm		 D
mm		 T
mm		 C0
kN		 C
kN		 kg
81108M 40 60 13 110 36 0,1
81109M 45 65 14 140 42 0,1
81110M 50 70 14 140 43 0,2
81111M 55 78 16 190 50 0,2
81112M 60 85 17 280 78 0,3
81113M 65 90 18 280 77 0,3
81114M 70 95 18 300 78 0,3
81115M 75 100 19 310 80 0,4
81116M 80 105 19 340 84 0,4
81117M 85 110 19 350 85 0,4
81118M 90 120 22 450 111 0,6
81120M 100 135 25 610 153 0,9
81122M 110 145 25 680 163 1
81124M 120 155 25 730 169 1,3
81126M 130 170 30 840 196 2
81128M 140 180 31 910 205 2,1
81130M 150 190 31 980 213 2,2
81132M 160 200 31 1.050 221 2,4
81134M 170 215 34 1.260 272 3,1
81136M 180 225 34 1.340 282 3,2
81138M 190 240 37 1.460 308 4,7
81140M 200 250 37 1.500 312 5
81144M 220 270 37 1.680 334 5,2
81148M 240 300 45 2.430 478 8,1
81152M 260 320 45 2.560 489 9,1
81156M 280 350 53 3.550 689 12,6
81160M 300 380 62 4.380 849 19,4
81164M 320 400 63 4.630 878 20,7
81168M 340 420 64 4.890 903 22,4
81172M 360 440 65 5.020 908 22,9
81176M 380 460 65 5.280 935 22,4
81180M 400 480 65 5.530 959 26,6
81184M 420 500 65 5.790 983 26,4
81188M 440 540 80 8.030 1.426 43,7

Additional information

Bore Size

130mm
Outside Diameter

190mm
