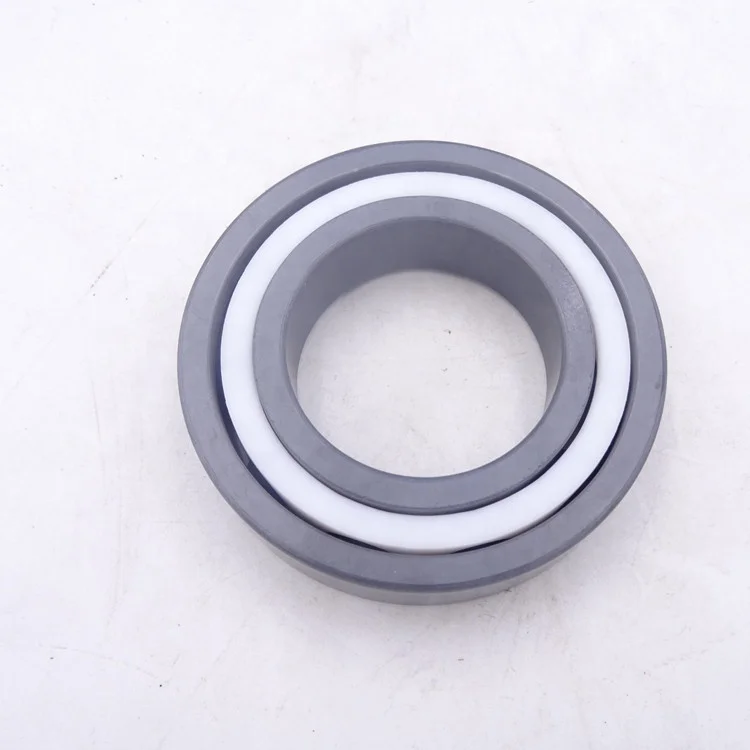

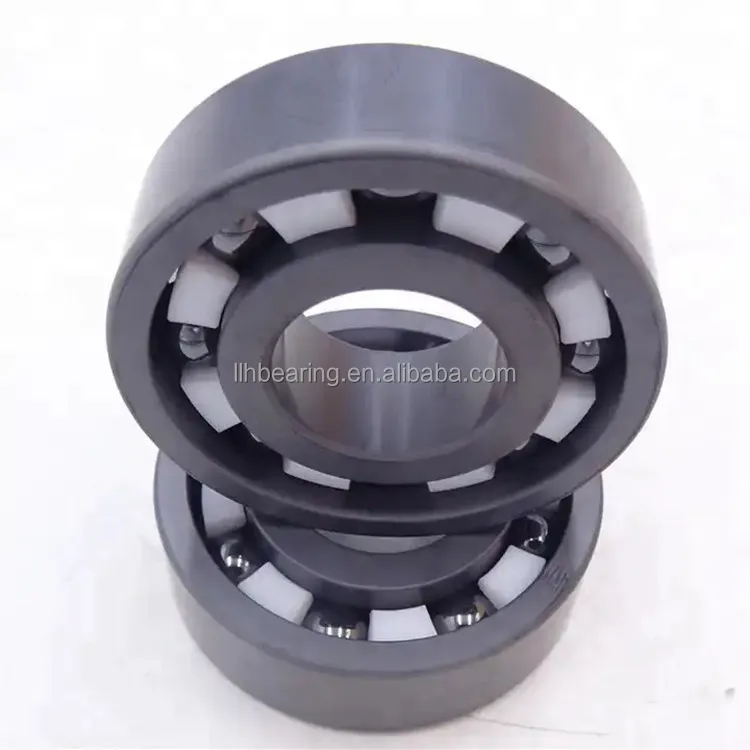

High Quality Full Ceramic 6306 Deep Groove Ball Bearing 6306CE Black Si3N4 Rodamientos 30x72x19 mm

Description

*Ceramic Bearings have two types of ceramic bearing, hybrid ceramic bearing and full ceramic bearing.The hybrid ceramic bearing has steel inner and outer rings with ceramic balls.

*Ceramic Bearings, Si3N4 stands for the silicon nitride ceramic material and is black colored,

Ceramic Bearings, SiC stands for the silicon carbide material and  is alsoblack colored.

*Ceramic Bearings,  ZrO2 stands for the zirconium dioxide, also known as zirconia or zirconium oxide, they are white colored, a ZrO2 ball looks exactly like a pearl.

The ceramic material is not stronger than steel, but ceramic bearing are lighter and have lower friction than steel,  which makes ceramic bearing go faster with lower heat generated.



Feature of Hybrid Ceramic Bearing 6306:



C2 radial internal clearance is less than normal for applications that do not involve thermal expansion or that require reduced vibration and noise

Rubber seals on both sides of the bearing to keep lubricant in and contaminants out

Standard cage evenly spaces the balls for even load distribution and prevents contact to reduce friction, vibrations, and noise

Single-row deep groove geometry for high speeds and supporting both radial and axial loads



Application of Hybrid Ceramic Bearing 6306:



Ceramic bearing has the characteristics of high temperature resistance, cold resistance, abrasion resistance, corrosion resistance and insulation, and can be used in extremely bad environment and special conditions.

Ceramic bearings can be widely used in skateboard, aviation, spaceflight, navigation, petroleum, chemical industry, automobile, electronics, metallurgical, power, textile, pumps, medical equipment and scientific research.

If you have drawings, we can customize various non-standard ceramic bearing for you according to your requirements.

The related models:

Model number	d	D	B	Sealed	Non contact	Mass(Kg)
6800	10	19	5	ZZ	LLB	0.005
6900	10	22	6	ZZ	LLB	0.009
6000	10	26	8	ZZ	LLB	0.019
6200	10	30	9	ZZ	LLB	0.032
6300	10	35	11	ZZ	LLB	0.053
6701	12	18	4		LLF	0.002
6801	12	21	5	ZZ	LLB	0.006
6901	12	24	6	ZZ	LLB	0.011
6001	12	28	8	ZZ	LLB	0.021
6201	12	32	10	ZZ	LLB	0.037
6301	12	37	12	ZZ	LLB	0.06
6702	15	21	4		LLF	0.0025
6802	15	24	5	ZZ	LLB	0.007
6902	15	28	7	ZZ	LLB	0.016
6002	15	32	9	ZZ	LLB	0.03
6202	15	35	11	ZZ	LLB	0.045
6302	15	42	13	ZZ	LLB	0.082
6703	17	23	4		LLF	0.0025
6803	17	26	5	ZZ	LLB	0.008
6903	17	30	7	ZZ	LLB	0.018
6003	17	35	10	ZZ	LLB	0.039
6203	17	40	12	ZZ	LLB	0.066
6303	17	47	14	ZZ	LLB	0.115
6704	20	27	4		LLF	0.0045
6804	20	32	7	ZZ	LLB	0.019
6904	20	37	9	ZZ	LLB	0.036
6004	20	42	12	ZZ	LLB	0.069
6204	20	47	14	ZZ	LLB	0.106
6304	20	52	15	ZZ	LLB	0.144
60/22	22	44	12	ZZ	LLB	0.074
62/22	22	50	14	ZZ	LLB	0.117
63/22	22	56	16	ZZ	LLB	0.176
6705	25	32	4		LLF	0.005
6805	25	37	7	ZZ	LLB	0.022
6905	25	42	9	ZZ	LLB	0.042
6005	25	47	12	ZZ	LLB	0.08
6205	25	52	15	ZZ	LLB	0.128
6305	25	62	17	ZZ	LLB	0.232
60/28	28	52	12	ZZ	LLB	0.098
62/28	28	58	16	ZZ	LLB	0.171
63/28	28	68	18	ZZ	LLB	0.284
6706	30	37	4		LLF	0.006
6806	30	42	7	ZZ	LLB	0.026
6906	30	47	9	ZZ	LLB	0.048
6006	30	55	13	ZZ	LLB	0.116
6206	30	62	16	ZZ	LLB	0.199
6306	30	72	19	ZZ	LLB	0.36
60/32	32	58	13	ZZ	LLB	0.129
62/32	32	65	17	ZZ	LLB	0.226
63/32	32	75	20	ZZ	LLB	0.382

Packaging and shipping

A: tube package + outer carton + pallets
B: single box + outer carton + pallets
C: tube package + middle box + outer carton + pallets
D: According to your request
