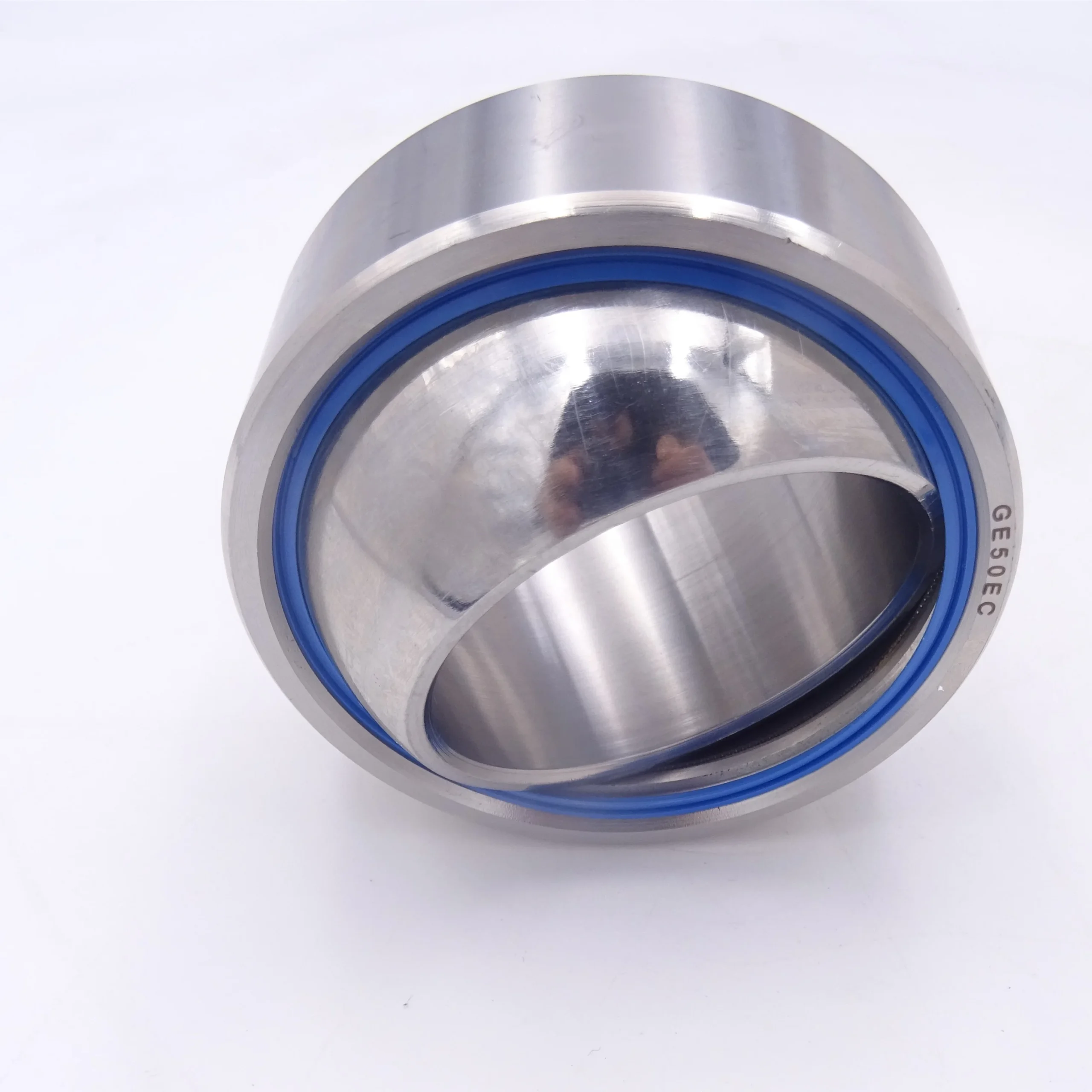

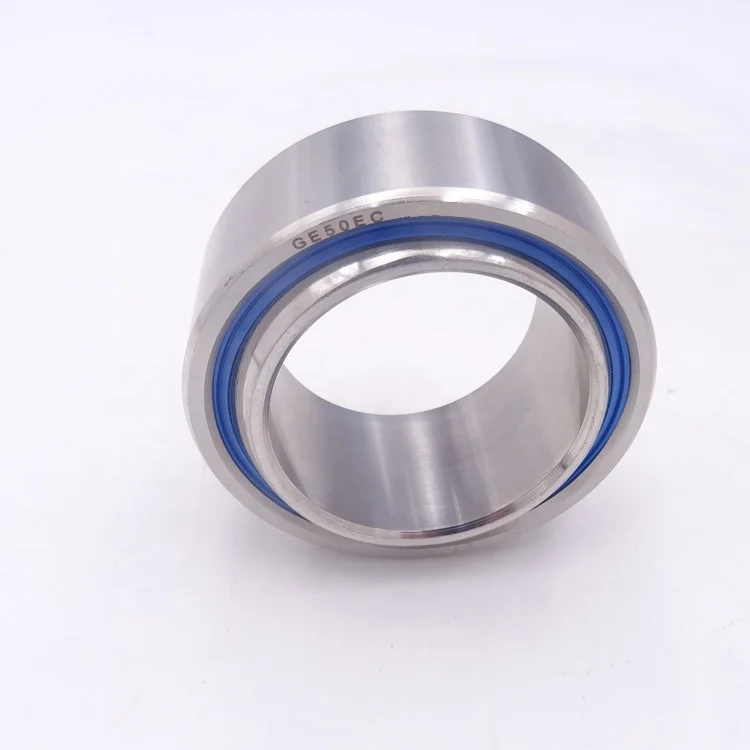

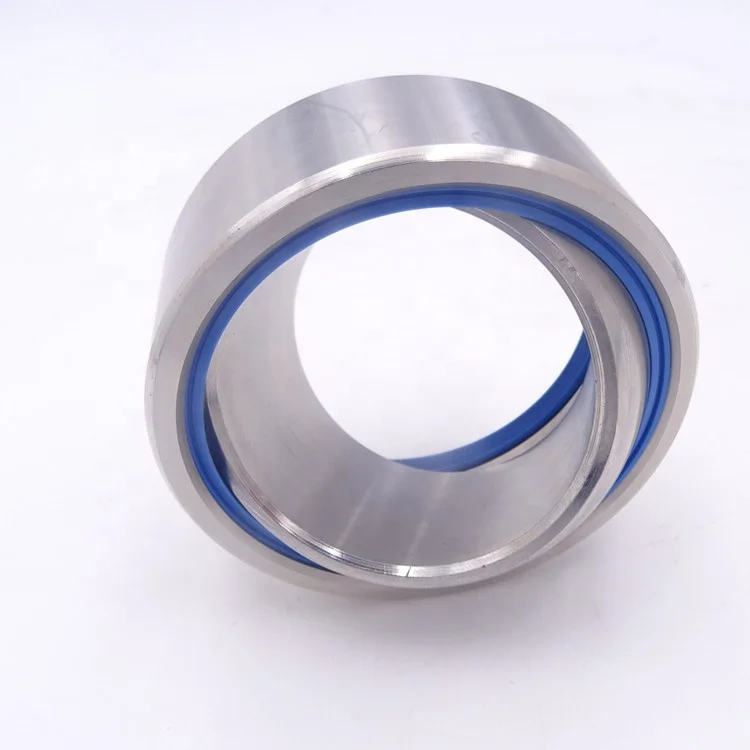

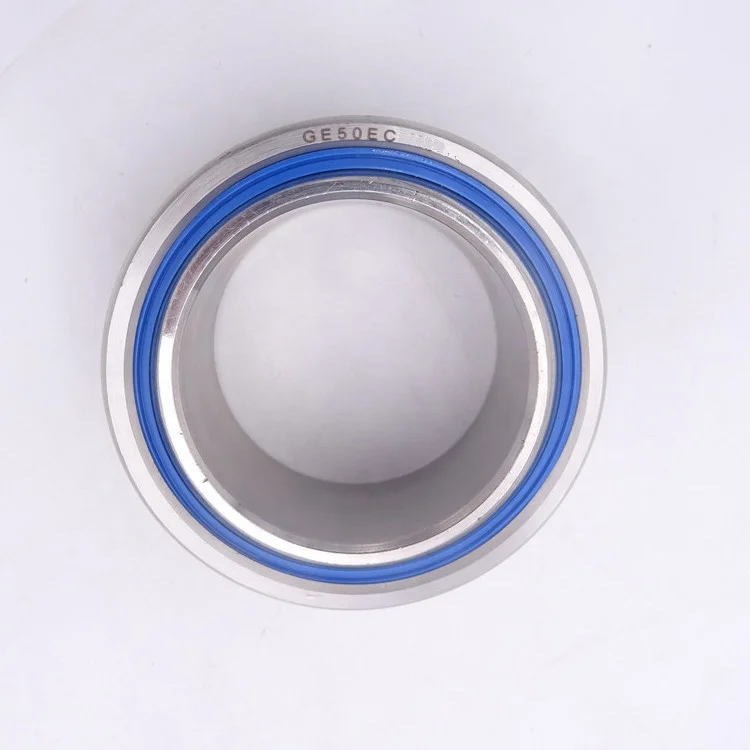

High Quality GE50EC Radial Spherical Plain Bearings Full Stainless Steel Size 50x75x35 Product Category Rod End Bearings

Description

Joint bearing structure than simply rolling bearing, which is dominated by an inner and outer sphere within a spherical outer ring. Bearings are generally used for lower-speed swing motion (ie angular motion), the sliding surface of the spherical shape, but also for tilting movement within a certain range of angles (ie,aligning movement), the supporting shaft misalignment and shaft housing bore when a large degree, still work.



Self-aligning,High temperature resistance,carrying capability,self-lubrication



Application :

Engineering hydraulic cylinders,Forging machines,Construction machinery,  Auto shock absorber etc



Product Name	Rod End Bearing
Precision Rating	P0, P6, P5, P4, P2
Material	Bearing Steel  (GCr15)
Clearance	C0 C1 C2 C3 C4 C5
Vibration & Noisy	Z1,Z2,Z3 V1,V2,V3
Seal	2RS, RS
Features	High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction
Certification	ISO 9001:2008
Packing	1.Neutral Packing Bearing  2.Industrial Packing  3.Commercial Packing Bearing  4.Customize
Delivery Time	30 – 45 Days After The Order is Confirmed
Shippment	1.By Sea  2.By Air  3.By Express
Website



Related Models

No.	Model	Dimensions(mm)								Load Ratings		Weight(Kg)
		d	D	B	C	dk	r1 min	r2 min	α	Dynamic	Static
										(KN)	(KN)
1	GE15ES 2RS	15	26	12	9	22	0.3	0.3	8	16	84	0.027
2	GE17ES 2RS	17	30	14	10	25	0.3	0.3	10	21	106	0.041
3	GE20ES 2RS	20	35	16	12	29	0.3	0.3	9	30	146	0.066
4	GE25ES 2RS	25	42	20	16	35.5	0.6	0.6	7	48	240	0.119
5	GE30ES 2RS	30	47	22	18	40.7	0.6	0.6	6	62	310	0.153
6	GE35ES 2RS	35	55	25	20	47	0.6	1	6	79	399	0.233
7	GE40ES 2RS	40	62	28	22	53	0.6	1	7	99	495	0.306
8	GE45ES 2RS	45	68	32	25	60	0.6	1	7	127	637	0.427
9	GE50ES 2RS	50	75	35	28	66	0.6	1	6	156	780	0.546
10	GE60ES 2RS	60	90	44	36	80	1	1	6	245	1220	1.04
11	GE70ES 2RS	70	105	49	40	92	1	1	6	313	1560	1.55
12	GE80ES 2RS	80	120	55	45	105	1	1	6	400	2000	2.31
13	GE90ES 2RS	90	130	60	50	115	1	1	5	488	2440	2.75
14	GE100ES 2RS	100	150	70	55	130	1	1	7	607	3030	4.45
15	GE110ES 2RS	110	160	70	55	140	1	1	6	654	3270	4.82

Our Service

1.High speed, High Precision, Low Noise, Long Service Life

2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the “quality first, credit first” business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
