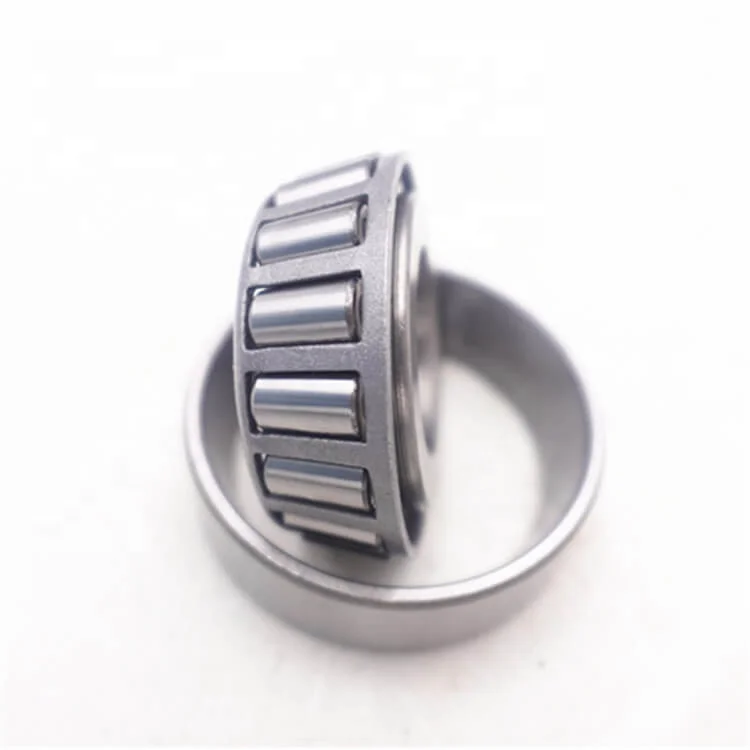

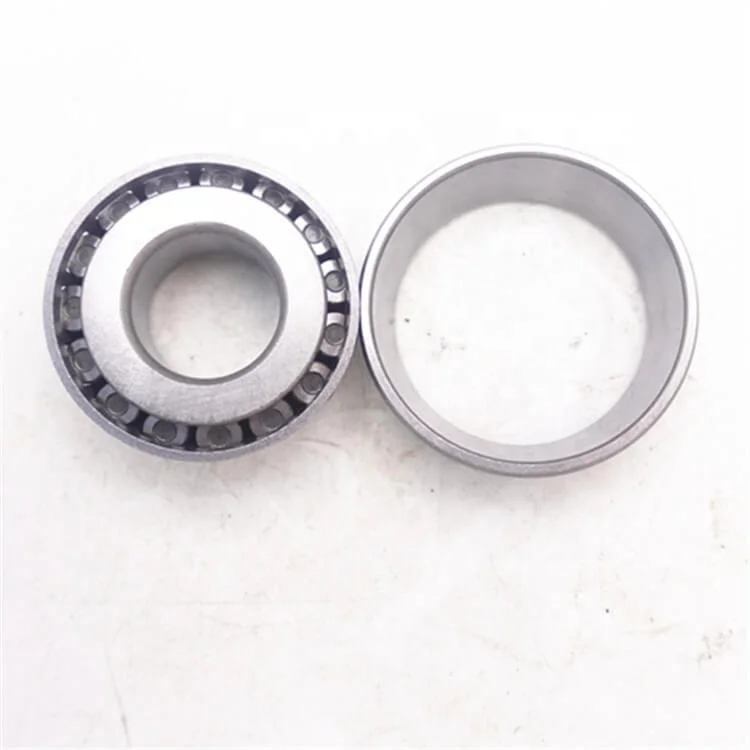

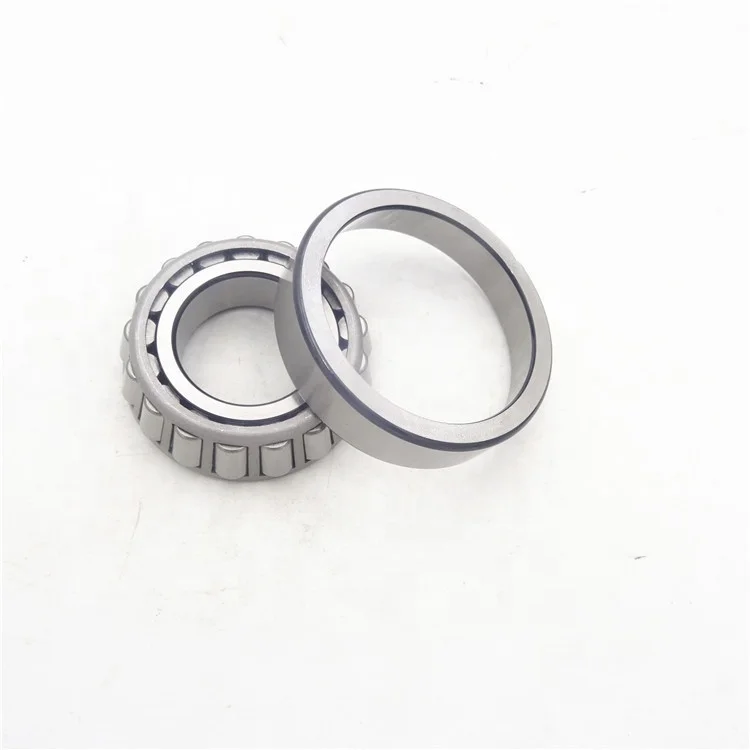

Inch Tapered Roller Bearing 21075/21212 Taper Bearings 21075/212 for Auto Parts 19.05*53.975*22.225mm
$2.00 (Shipping Charge Not Included）
Description
Taper roller bearing the angle between the outer raceway generator and line, the bearing can bearing heavy load and other Tapered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of
functions.
|
type
|
Inch Tapered Roller bearing
|
|
model number
|
21075/21212
|
|
size
|
19.05*53.975*22.225mm
|
|
seals type
|
open
|
|
application
|
Automotive.tractor.construction Machinery.rolling Mill
|
|
features
|
good quality,low noise,long life
|
|
service
|
OEM and customized service
|
Brief introduction :
·High load,
·Long service life,
·High precision,
·High speed,
·Low noise
Application of tapered roller bearing:
Tapered roller bearings are more and more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, equipment, robots, tools, machinery, cnc machine , automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry being.
Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.
Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.
|
Specification
|
Boundary dimensions(mm)
|
Mass(kg)
|
||||
|
d
|
D
|
B
|
||||
|
LM300849/LM300811
|
41.000
|
68.000
|
17.500
|
0.2420
|
||
|
33275/33462
|
69.850
|
117.475
|
30.162
|
1.2720
|
||
|
33281/33462
|
71.438
|
117.475
|
30.162
|
1.2310
|
||
|
33889/33821
|
50.800
|
95.250
|
27.783
|
0.8680
|
||
|
33287/33462
|
73.025
|
117.475
|
30.162
|
1.1880
|
||
|
368A/362A
|
50.800
|
88.900
|
20.638
|
0.5040
|
||
|
368/362
|
50.800
|
90.000
|
20.000
|
0.5620
|
||
|
3780/3720
|
50.800
|
93.254
|
30.162
|
0.8560
|
||
|
3782/3720
|
44.450
|
93.264
|
30.162
|
0.9700
|
||
|
387A/382A
|
57.150
|
96.838
|
21.000
|
0.5990
|
||
|
39585/39520
|
63.500
|
112.712
|
30.162
|
1.2580
|
||
|
2580/2523
|
31.750
|
69.850
|
23.812
|
0.4510
|
||
|
28985/28921
|
60.325
|
100.00
|
25.400
|
0.7700
|
||
|
47686/47620
|
82.550
|
133.350
|
33.338
|
1.7570
|
||
|
47687/47620
|
82.550
|
133.350
|
33.338
|
1.7370
|
||
|
387A/362S
|
57.150
|
96.838
|
25.400
|
0.6690
|
||
|
387A/382
|
57.150
|
98.425
|
21.000
|
0.6460
|
||
|
3982/3920
|
63.500
|
112.712
|
30.162
|
1.2430
|
||
|
3984/3920
|
66.675
|
112.712
|
30.162
|
1.1660
|
||
|
462/453X
|
57.150
|
104.775
|
30.162
|
1.0700
|
||
|
L44643/L44610
|
25.400
|
50.292
|
14.224
|
0.1290
|
||
|
L44649/L44610
|
26.988
|
50.292
|
14.224
|
0.1200
|
||
|
L45449/L45410
|
29.000
|
50.292
|
14.224
|
0.1150
|
||
|
LM48548/LM48510
|
34.925
|
65.088
|
18.034
|
0.2590
|
||
Additional information
| Bore Size | 19.05 mm |
|---|---|
| Outside Diameter | 53.975 mm |
