Name: Linear Guide Rail Bearing Runner Block R165321320 Sliding Carriage
SKU: 4384
Availability: InStock

Linear Guide Rail Bearing Runner Block R165321320 Sliding Carriage

$68.00 (Shipping Charge Not Included）

Description

Linear guide rail and block	Linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion. It is widely used in CNC machines such as cnc router machine, cnc laser machine, cnc plasma cutting machine, cnc turning lathe, cnc milling machine etc. Block types: Usually offers two types of linear guide block which are flange linear slide cage and square linear rail blocks. Because of the low assembly height and larger mounting surface, the flange type is suitable for heavy moment load application.
Feature	1. Maintenance-free, low maintenance, no need to lubricate piping systems and equipment. 2. Long service life, long-term automatic maintenance of track surface lubricant film protection. 3. Significantly save lubricant costs. 4. Easy to maintain machine cleaning, no waste oil spills and pollute the environment. 5. High quality, preferential price
Length	according to your demand

Size	25mm
Design type	FLS – flanged, long, standard height
Ball chain	Without ball chain
Preload class	C1 moderate preload
Accuracy class	H – Highly accurate
Self-aligning for compensation of misalignments	Without self-alignment

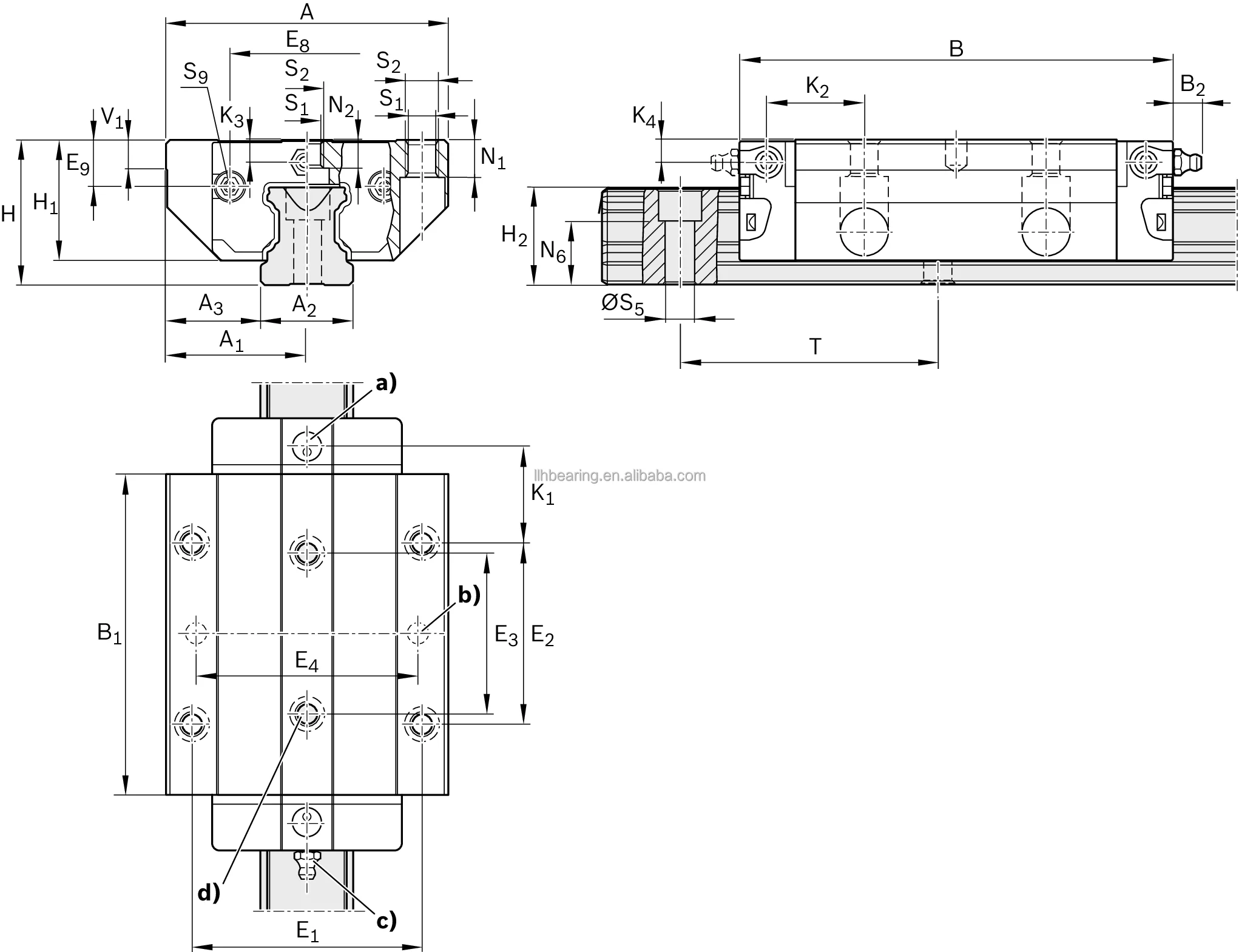

Length of runner block [mm]	107.9
Width of runner block [mm]	70
Height of runner block with guide rail [mm]	36
Lubrication	Pre-lubricated
Dynamic load capacity C [N]	37300
Dynamic torsional moment load capacity Mt [Nm]	530
Dynamic longitudinal moment load capacity ML [Nm]	530
Static longitudinal moment load capacity ML0 [Nm]	740
Static torsional moment load capacity Mt0 [Nm]	750
Max. acceleration amax [m/s²]	500
Seal	SS – Standard seal
Static load rating C0 [N]	52500
Permissible ambient temperature	-10 °C … +80 °C
Pitch T guide rail [mm]	60
Friction coefficient μ	0,002 … 0,003
Height of runner block	29.9
Weight [kg]	0.9

Additional information

Color	White, Black
