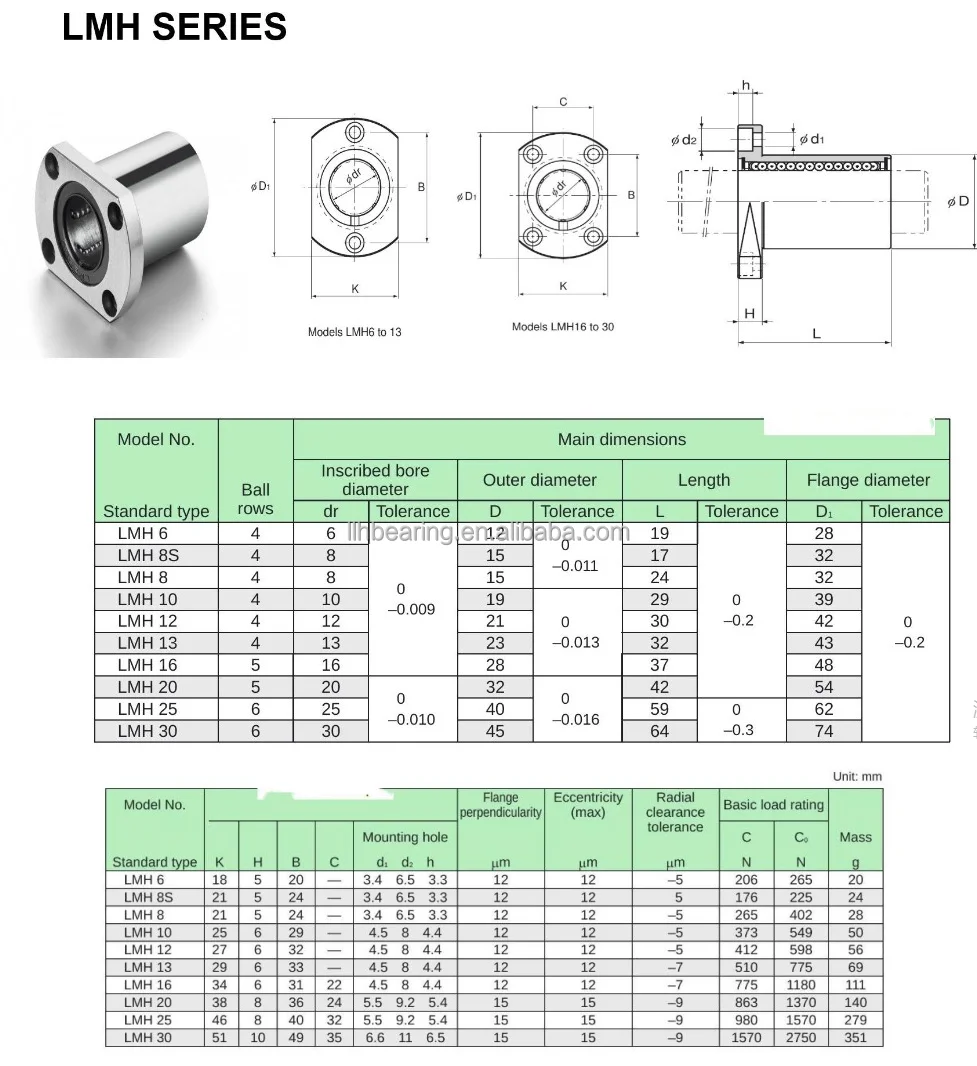

LMH13UU LMH Series13x23x32 Flange Mounted Steel Linear Bearing 2 Side Cut for CNC 3D Printer and Machinery Industries

Description

Linear bearing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.

Features:
Linear bearing is often used with quenching line transmission shaft, a system for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.

Types:
1.Standard type, clearance adjustale type, open type, extended type and general type linear bearings.
2.Flanged linear bearings can be divided into: round flange type, square flange type, oval flange type, oriented round flange type, oriented square flange type, oriented oval flange type and extended round flange type.

Models:
“LM” metric standard type linear bearing

“LME” inch standard type linear bearing

“UU” rubber seals on the both sides of the long type linear bearing

“OP” open type linear bearing

“AJ” adjustment type linear bearing

*LM…UU: LM…(sylinder), LM…OP(open type), LM…AJ(clearance adustable)

*LME…UU: LME…(sylinder), LME…OP(open type), LME…AJ(clearance adustable), LM…UU & LME…UU: Long type

*KH: High-precision miniature bearing

Related Model

LM linear bearing	LM 3UU, LM 4UU, LM 5UU, LM 6UU, LM 8UU, LM 10UU, LM 12UU, LM 13UU, LM 16UU, LM 20UU, LM 25UU, LM 30UU, LM 35UU, LM 40UU, LM 50UU, LM 60UU, LM 80UU, LM 100UU, LM 120UU, LM 150UU
LMP linear bearing	LM 10OPUU, LM 12OPUU, LM 13OPUU, LM 16OPUU, LM 20OPUU, LM 25OPUU,  LM 30OPU, LM 35OPUU, LM 40OPUU, LM 50OPUU, LM60OPUU, LM 80OPUU, LM 100OPUU, LM 120OPUU, LM150OPUU
LME Linear bearing ( inch standard )	LME 5UU, LME 8UU, LME 12UU, LME 16UU, LME 20UU, LME 25UU, LME 30UU, LME 40UU, LME 50UU, LME 60UU, LME 80UU
LML linear bearing	LM 6LUU, LM 8LUU, LM 10LUU, LM 12LUU, LM 13LUU, LM 16LUU, LM 20LUU, LM 25LUU, LM 30LUU, LM 35LUU, LM 40LUU, LM 50LUU, LM 60LUU
KH linear bearing	KH 0622PP,KH 0824PP, KH 1026PP, KH 1228PP, KH 1630PP, KH 2030PP,  KH 2540PP, KH 3050PP, KH 4060PP, KH5070PP
SK Linear bearing	SK 10, SK 12, SK 13, SK 16, SK 20, SK 25, SK 30, SK 35, SK 40
SHF Linear bearing	SHF 10, SHF 12,  SHF 13, SHF 16, SHF 20, SHF 25, SHF 30, SHF 35, SHF 40
Flange linear bearing	LMF6UU, LMF8UU, LMF10UU, LMF12UU, LMF13UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU, LMF80UU, LMF100UU
	LMK6UU, LMK8UU, LMK10UU, LMK12UU, LMK13UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU, LMK35UU, LMK40UU, LMK50UU, LMK60UU, LMK80UU, LMK100UU
	LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU,LMT20UU,LMT25UU,LMT30UU
Linear slide unit	SC..L series,SC..S series SCJ series SCE series
Support unit	SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50,SK60 SHF8,SHF10,SHF12,SHF13,SHF16,SHF20,SHF25,SHF30,SHF35,SHF40,SHF50
