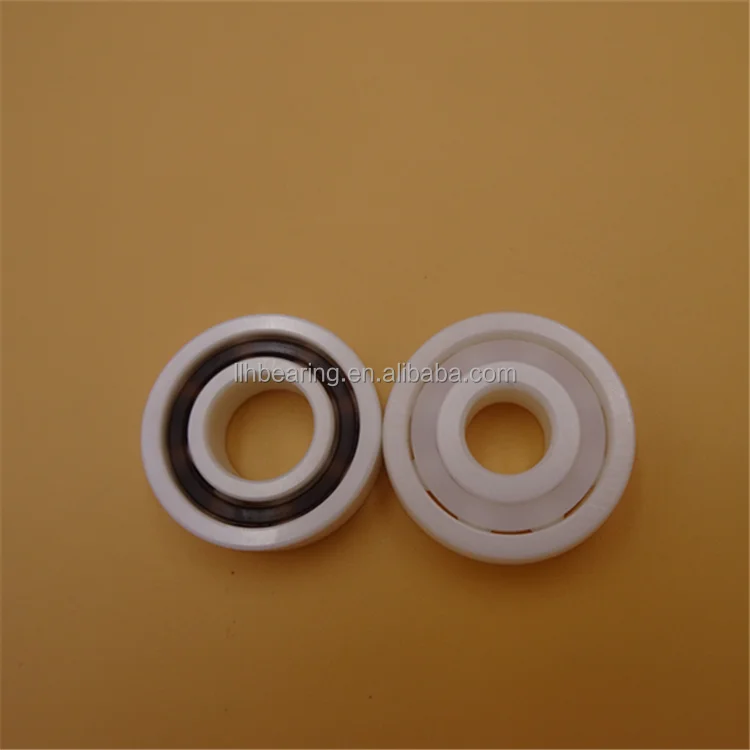

Miniature 6803CE Full Ceramic Ball Bearing 6803 61803 ZrO2 Thin Section Bearings 17x26x5 mm
$5.00 (Shipping Charge Not Included）
Description
Product Details:
Ceramic bearings have characteristics of strong resistance against all kinds of acid, alkali, salt and other corrosive medium erosion, against high temperature, wear-resistant, lightest structure weight, high limiting speed, low noise, electrical insulation, dimensional stability at high temperature, small starting torque etc. They can be used in worse lubrication working condition with a long operating life.
They are widely applicable in aviation, aerospace, marine, petroleum,chemical, mechanical,automobile, motorcycle, metallurgy, electronics, textiles pumps, pharmaceutical, food machinery, medical equipment, national defense and military technology, etc.,thus becoming a new kind of high-tech products material, with great social and economical valid.
|
product name
|
6803CE ceramic ball bearing
|
|
material
|
ZrO2
|
|
cage
|
PTFE
|
|
d
|
17mm
|
|
D
|
26mm
|
|
B
|
5mm
|
|
service
|
OEM and customized service
|
PRODUCT FACE
Features:
high speed
low noise
corrosion resistance
electric insulation
high temperature resistance
PRODUCT SPECIFICATION

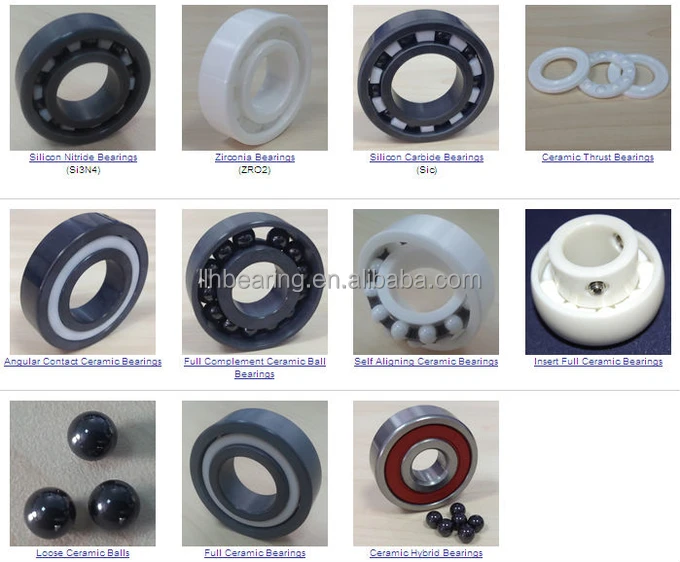

*Ceramic Bearings have two types of ceramic bearing, hybrid ceramic bearing and full ceramic bearing.The hybrid ceramic bearing has steel inner and outer rings with ceramic balls.
*Ceramic Bearings, Si3N4 stands for the silicon nitride ceramic material and is black colored,
Ceramic Bearings, SiC stands for the silicon carbide material and is also black colored.
*Ceramic Bearings, ZrO2 stands for the zirconium dioxide, also known as zirconia or zirconium oxide, they are white colored, a ZrO2 ball looks exactly like a pearl.
The ceramic material is not stronger than steel, but ceramic bearing are lighter and have lower friction than steel, which makes ceramic bearing go faster with lower heat generated.
*Ceramic Bearings, Si3N4 stands for the silicon nitride ceramic material and is black colored,
Ceramic Bearings, SiC stands for the silicon carbide material and is also black colored.
*Ceramic Bearings, ZrO2 stands for the zirconium dioxide, also known as zirconia or zirconium oxide, they are white colored, a ZrO2 ball looks exactly like a pearl.
The ceramic material is not stronger than steel, but ceramic bearing are lighter and have lower friction than steel, which makes ceramic bearing go faster with lower heat generated.
RELATED MODELS
|
Model number
|
d(mm)
|
D(mm)
|
B(mm)
|
Sealed
|
Non contact
|
Mass(Kg)
|
|
6800
|
10
|
19
|
5
|
ZZ
|
LLB
|
0.005
|
|
6900
|
10
|
22
|
6
|
ZZ
|
LLB
|
0.009
|
|
6000
|
10
|
26
|
8
|
ZZ
|
LLB
|
0.019
|
|
6200
|
10
|
30
|
9
|
ZZ
|
LLB
|
0.032
|
|
6300
|
10
|
35
|
11
|
ZZ
|
LLB
|
0.053
|
|
6701
|
12
|
18
|
4
|
|
LLF
|
0.002
|
|
6801
|
12
|
21
|
5
|
ZZ
|
LLB
|
0.006
|
|
6901
|
12
|
24
|
6
|
ZZ
|
LLB
|
0.011
|
|
6001
|
12
|
28
|
8
|
ZZ
|
LLB
|
0.021
|
|
6201
|
12
|
32
|
10
|
ZZ
|
LLB
|
0.037
|
|
6301
|
12
|
37
|
12
|
ZZ
|
LLB
|
0.06
|
|
6702
|
15
|
21
|
4
|
|
LLF
|
0.0025
|
|
6802
|
15
|
24
|
5
|
ZZ
|
LLB
|
0.007
|
|
6902
|
15
|
28
|
7
|
ZZ
|
LLB
|
0.016
|
|
6002
|
15
|
32
|
9
|
ZZ
|
LLB
|
0.03
|
|
6202
|
15
|
35
|
11
|
ZZ
|
LLB
|
0.045
|
|
6302
|
15
|
42
|
13
|
ZZ
|
LLB
|
0.082
|
|
6703
|
17
|
23
|
4
|
|
LLF
|
0.0025
|
|
6803
|
17
|
26
|
5
|
ZZ
|
LLB
|
0.008
|
|
6903
|
17
|
30
|
7
|
ZZ
|
LLB
|
0.018
|
|
6003
|
17
|
35
|
10
|
ZZ
|
LLB
|
0.039
|
PRODUCT TOTAL SHOW

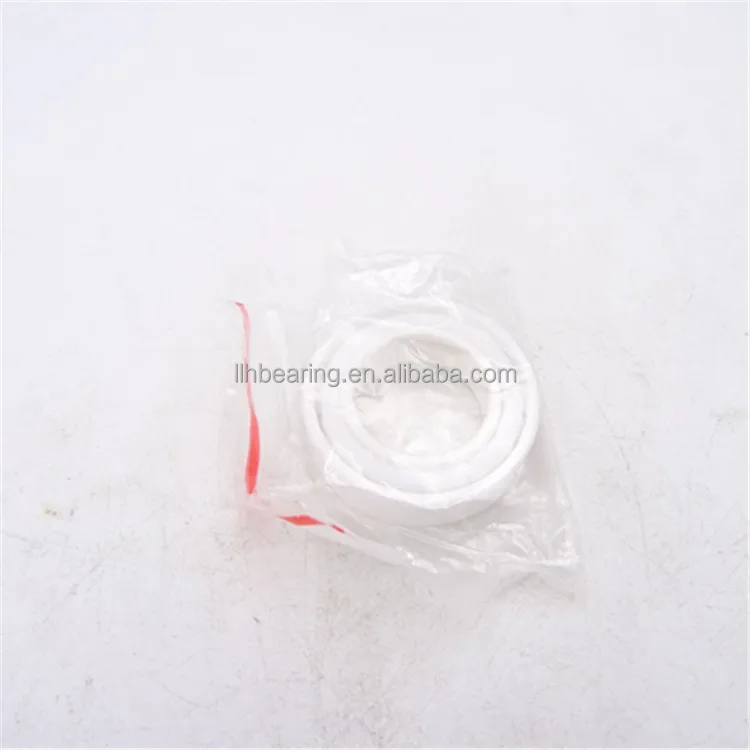

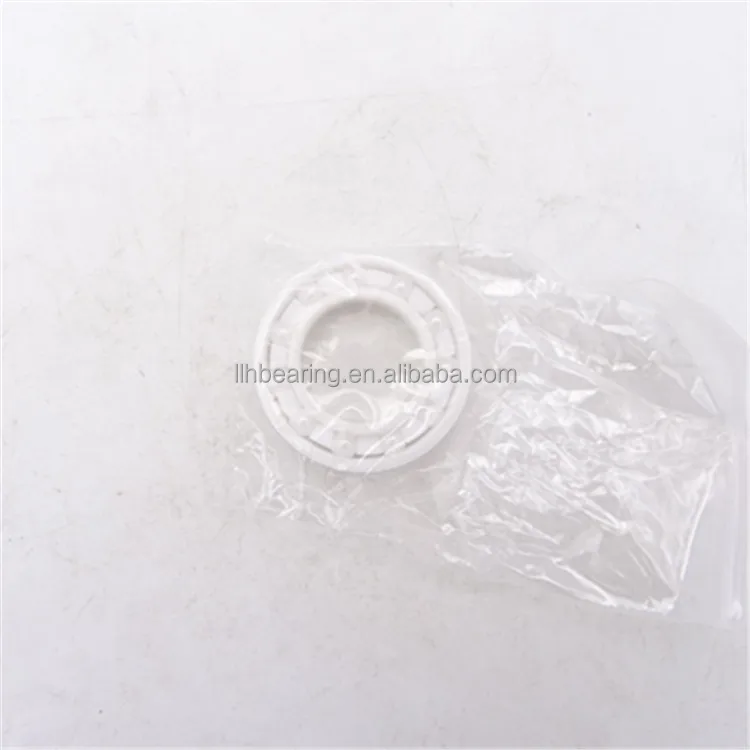

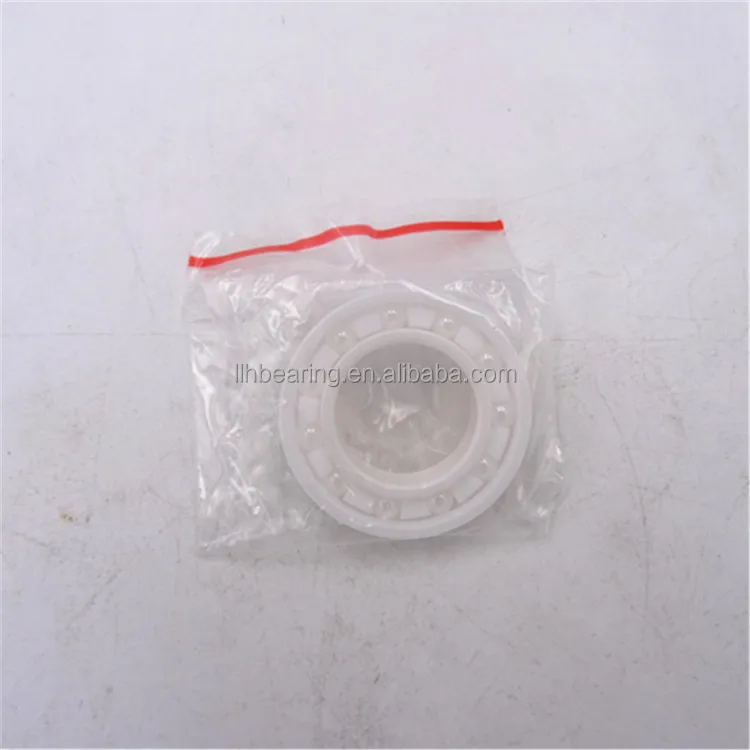

SHIPPING&PACKAGE
A: tube package + outer carton + pallets
B: single box + outer carton + pallets
C: tube package + middle box + outer carton + pallets
D: According to your request
air/sea transportation&international express
OUR ADVANTAGE
OUR SERVICE
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8.OEM is supported
9.Our company insists on the “quality first, credit first” business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8.OEM is supported
9.Our company insists on the “quality first, credit first” business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
FACTORY AND OFFICE
Jinan Maolei Bearing co.,Ltd is a manufacturer and trader specialized in the research, development and production of bearings is located in the “Spring City” Jinan, with convenient transportation.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the”people-oriented”and”advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.
FAQ
Q: Are you trading company or manufacturer ?
A: We are the manufacture of bearings for more than 20 years, “Quality is our culture”.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
A: We are the manufacture of bearings for more than 20 years, “Quality is our culture”.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What causes bearing noise?
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q: What is your terms of payment ?
A.100%T/T
B.30%T/T in advance,70% against copy of B/L(For large order)
C.Western Union
D.Paypal
Before you order online,please contact us to get more discount !
Additional information
| Bore Size | 17 mm |
|---|---|
| Outside Diameter | 26 mm |
