Miniature Full Ceramic Deep Groove Ball Bearing 61800 6800 ZrO2 6800CE Thin Section 10*19*5mm
Miniature Full Ceramic Deep Groove Ball Bearing 61800 6800 ZrO2 6800CE Thin Section 10*19*5mm - Image 2
Miniature Full Ceramic Deep Groove Ball Bearing 61800 6800 ZrO2 6800CE Thin Section 10*19*5mm - Image 3
Miniature Full Ceramic Deep Groove Ball Bearing 61800 6800 ZrO2 6800CE Thin Section 10*19*5mm - Image 4
Miniature Full Ceramic Deep Groove Ball Bearing 61800 6800 ZrO2 6800CE Thin Section 10*19*5mm - Image 5
Miniature Full Ceramic Deep Groove Ball Bearing 61800 6800 ZrO2 6800CE Thin Section 10*19*5mm - Image 6

Miniature Full Ceramic Deep Groove Ball Bearing 61800 6800 ZrO2 6800CE Thin Section 10*19*5mm

$3.50 (Shipping Charge Not Included）

SKU: N/A Category: Tag:

Description

*Ceramic Bearings have two types of ceramic bearing, hybrid ceramic bearing and full ceramic bearing.The hybrid ceramic bearing has steel inner and outer rings with ceramic balls.

*Ceramic Bearings, Si3N4 stands for the silicon nitride ceramic material and is black colored,

Ceramic Bearings, SiC stands for the silicon carbide material and  is alsoblack colored.

*Ceramic Bearings,  ZrO2 stands for the zirconium dioxide, also known as zirconia or zirconium oxide, they are white colored, a ZrO2 ball looks exactly like a pearl.

The ceramic material is not stronger than steel, but ceramic bearing are lighter and have lower friction than steel,  which makes ceramic bearing go faster with lower heat generated.

Parameters of 6800CE ceramic bearing:

Name 6800 ceramic bearing
Seals Type OPEN
Material ZrO2
Cage material PTFE
Size 10*19*5mm
Application Home appliances, low noise and high speed electric motors,automotive components,

pumps, machinery.
Certifications ISO9001 quality management system
Package 1) Single box + outer carton + pallets
2) Tube package + outer carton + pallets
3) According to customer request
Service 1) OEM
2) After-Sales Service
3) 24 hours service
Payment Term 1) T/T : 50% deposit , 50% before shippment.
2) 100% Western Union in advance. (specially for air shipment or small amount)
3) Paypal

4) Others


Ceramic bearings

Ceramic bearings have characteristics of strong resistance against all kinds of acid, alkali, salt and other corrosive medium erosion, against high temperature, wear-resistant, lightest structure weight, high limiting speed, low noise, electrical insulation, dimensional stability at high temperature, small starting torque etc. They can be used in worse lubrication working condition with a long operating life. They are widely applicable in aviation, aerospace, marine, petrolium,chemical, mechanical, automobile, motocycle, metallurgy, electronics, textiles pumps, pharmaceutical, food machinery, medical equipment, national defence and military technology, etc.,thus becoming a new kind of high-tech products material, with great social and economical valid.



For deep groove ball bearings, the basic type is 6000 series, 6200 series, and 6300 series. The ring and ball material can be SSIC, SI3N4 and ZRO2 ceramic material. Different materials are used in different working confitions, such as media, working temprature, rotating speed, load and other conditions. The cage could be PEEK, PTFE, or no cage, as pehe working conditions.



Features of 6800 ceramic bearing:

1.Ceramic bearing has high temperature resistance, cold resistance, wear resistance, corrosion resistance, resistance to magnetoelectricity insulation, since no oil lubrication, high speed and other characteristics .

2.Full ceramic bearing have excellence performance as special electrical and magnetism resistance, wear and corrosion resistance, lubrication and maintenance free when working, especially high and low- temperature application. etc. Could be used in awful environment and specially condition.



Specification of 6800 ceramic bearing:

1.High precision and long life

2.Low Vibration

3.Low noise



Application of 6800 ceramic bearing:

Widely used in sports equipment, theme park attractions, printing presses, office equipment, home equipment,cranes, giant roller-coasters, marine uses etc.

If you have drawings, we can customize various non-standard ceramic bearing for you according to your requirements.

The related models:

Bearing No Size Mounting Dimensions(mm) N.W N.W
mm da Da ra (kg) (refer)
d D B min max max ZrO2 Si3N4
684CE 4 9 2.5 4.8 8.2 0.1 0.0005 0.0003
694CE   11 4 5.2 9.8 0.15 0.0013 0.0007
604CE   12 4 5.6 10.4 0.2 0.0017 0.0009
624CE   13 5 5.6 11.4 0.2 0.0023 0.0013
634CE   16 5 6 14 0.3 0.004 0.0022
685CE 5 11 3 6.2 9.8 0.15 0.0009 0.0005
695CE   13 4 6.6 11.4 0.2 0.0019 0.001
605CE   14 5 6.6 12.4 0.2 0.0027 0.0015
625CE   16 5 7 14 0.3 0.0038 0.0021
635CE   19 6 7 17 0.3 0.0066 0.0036
686CE 6 13 3.5 7.2 11.8 0.15 0.0015 0.0008
696CE   15 5 7.6 13.4 0.2 0.003 0.0016
606CE   17 6 8 15 0.3 0.0046 0.0025
626CE   19 6 8 17 0.3 0.0063 0.0034
636CE   22 7 8 20 0.3 0.0108 0.0058
687CE 7 14 3.5 8.2 12.8 0.15 0.0017 0.0009
697CE   17 5 9 15 0.3 0.004 0.0022
607CE   19 6 9 17 0.3 0.0059 0.0032
627CE   22 7 9 20 0.3 0.0098 0.0053
637CE   26 9 9 24 0.3 0.0185 0.01
688CE 8 16 4 9.6 14.4 0.2 0.0025 0.0014
698CE   19 6 10 17 0.3 0.0056 0.003
608CE   22 7 10 20 0.3 0.0093 0.005
628CE   24 8 10 22 0.3 0.013 0.0072
638CE   28 9 10 26 0.3 0.022 0.012
689CE 9 17 4 10.6 15.4 0.2 0.0027 0.0015
699CE   20 6 11 18 0.3 0.0065 0.0035
609CE   24 7 11 22 0.3 0.011 0.006
629CE   26 8 11 24 0.3 0.015 0.0081
639CE   30 10 13 26 0.6 0.028 0.015

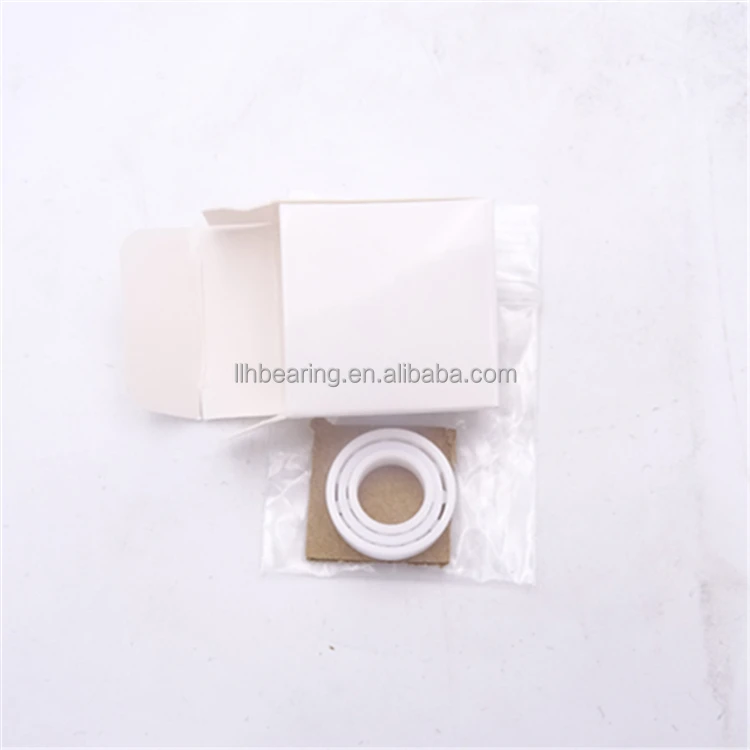

Packaging and shipping

A: tube package + outer carton + pallets
B: single box + outer carton + pallets
C: tube package + middle box + outer carton + pallets
D: According to your request

Additional information

Bore Size

10 mm
Outside Diameter

19 mm
