Open Type High Speed Full ZrO2 All Ceramic Bearing 6202 6202CE Deep Groove Ball Bearings Without Seal
$7.80 (Shipping Charge Not Included）
Description
Open Type High Speed Full ZrO2 All Ceramic Bearing 6202 6202CE Deep Groove Ball Bearings Without Seal
Single row radial deep groove ball bearings are rigid and non-separable in design. They incorporate deep running grooves on their inner and out rings creating a ball path that accepts axial and radial loading. The balls are separated by a cage that permits high speed operation. Their ability to accept misalignment is very limited however. In normal operation they can’t handle misalignment any greater than 10 angular minutes from their centre position. Single Row Deep Groove Ball Bearings have the highest speed capacity of all rolling element bearings, and are by far the most popular bearing type in use today.
Application:
Widely used in automobile, bicycle, reducer, medical equipment, sports equipment, aviation, robot joints, machine tools, packaging equipment, textile machinery, semiconductor processing equipment and rotating table and other transmission devices. HXHV bearings can also be used for family appliance and business equipment. Such as air-condition, wahser, cleaner, massage chair, sewing machine, rangehood, microwave oven, duplicating machine, etc.
Standard bearing’s material is chrome steel (GCr15). It is also called bearing steel. The material can become oxidized and rust after prolonged exposure to humid air, so we filled them with oil or grease to prevend rusting.Stainless steel bearing material. We usually use 440 stainless steel to produce the bearing. It has stronger rust and corrosion resistance, so generally do not need to add lubricating oil or lubricant. Relative to bearing steel, stainless steel quality is better, the price is more expensive.
Full Ceramic or hybrid ceramic material. The ceramics used in the production of bearings are generally black silicon nitride
(Si3N4) and white zirconia (ZrO2).
Plastic bearing are usually made of POM, PA inner and outside rings, glass balls and nylon retainer.
To reduce the cost and avoide rusting, buyers can also choose the cheap carbon steel material and zinc coated on bearing surface.
Retainer:
Steel Bearing’s retainer are normally be made of stainless steel, chrome steel, carbon steel. And the retainer type is ribbon
steel retainer or crown steel retainer.
Full ceramic or hybrid ceramic bearings’ retainer are usually made of plastic POM, Nylon, or high polymer material PTFE, PEEK.
Oil Lubrication usually be used for small bearings.
Grease Lubrication usually be used for bearings with bigger size.
Function: the oil and grease will reduce the speed of bearing, but they can also prevent from rusting, extend the service life of the bearings.Radil Clearance:
The radial clearance of our bearing can be classified C2, C0, C3, C4 & C5 according to customer’s request.
Vibration and Noise:
The vibration and noise of bearing are classified in four Classes, Z1 Z2 Z3 Z4. It is measured by the instrument of S0910-1. For special requirement, it is meassured by BVT-1 and classifited as V1 V2 and V3. Different vibration and noise requirement should be mentioned in advance.
According to the international standard, the accuracy of bearing can be divided into five grades: normal grade P0, high grade P6, accurate grade P5, over accuracy grade P4 and over the 4th grade P2.
|
Country
|
Standard
|
Accuracy Grade
|
||||
|
China
|
GB307.1
|
P0
|
P6
|
P5
|
P4
|
P2
|
|
International Standard Organization
|
ISO
|
Normal Class
|
Class6
|
Class5
|
Class4
|
Class2
|
|
Sweden
|
**
|
P0
|
P6
|
P5
|
P4
|
P2
|
|
Germany
|
DIN
|
P0
|
P6
|
P5
|
P4
|
P2
|
|
Japan
|
JIS
|
P0
|
P6
|
P5
|
P4
|
P2
|
|
U.S.A
|
ANSI
|
ABEC1
|
ABEC3
|
ABEC5
|
ABEC7
|
ABEC9
|
|
Bearing No. |
I.D |
O.D |
W |
|||
|
d |
D |
B |
||||
|
mm |
inch |
mm |
inch |
mm |
inch |
|
|
6201 |
12 |
0.4724 |
32 |
1.2598 |
10 |
0.3937 |
|
6202 |
15 |
0.5906 |
35 |
1.3780 |
11 |
0.4331 |
|
6203 |
17 |
0.6693 |
40 |
1.5748 |
12 |
0.4724 |
|
6204 |
20 |
0.7874 |
47 |
1.8504 |
14 |
0.5512 |
|
6205 |
25 |
0.9843 |
52 |
2.0472 |
15 |
0.5906 |
|
6206 |
30 |
1.1811 |
62 |
2.4409 |
16 |
0.6299 |
|
6207 |
35 |
1.3780 |
72 |
2.8346 |
17 |
0.6693 |
|
6208 |
40 |
1.5748 |
80 |
3.1496 |
18 |
0.7087 |
|
6209 |
45 |
1.7717 |
85 |
3.3465 |
19 |
0.7480 |
|
6210 |
50 |
1.9685 |
90 |
3.5433 |
20 |
0.7874 |

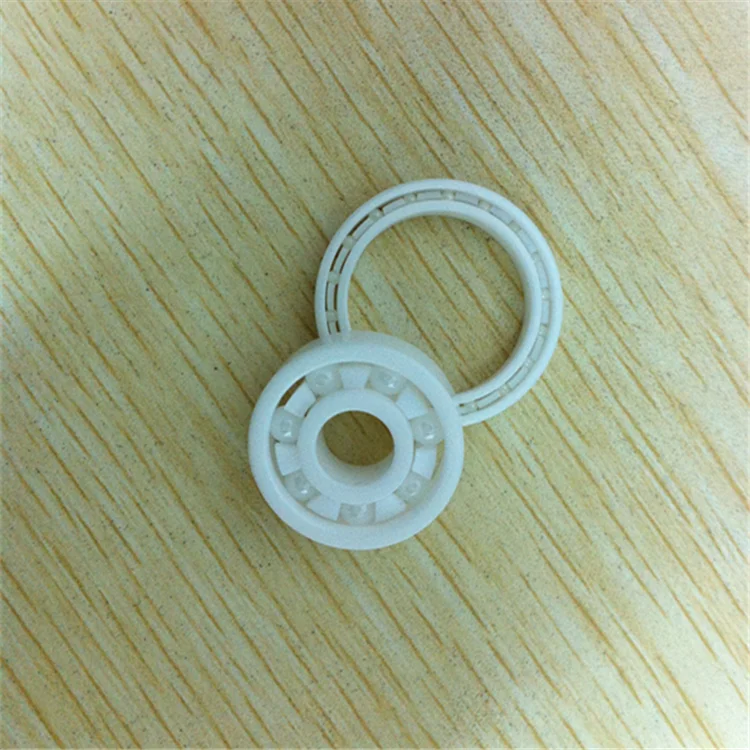

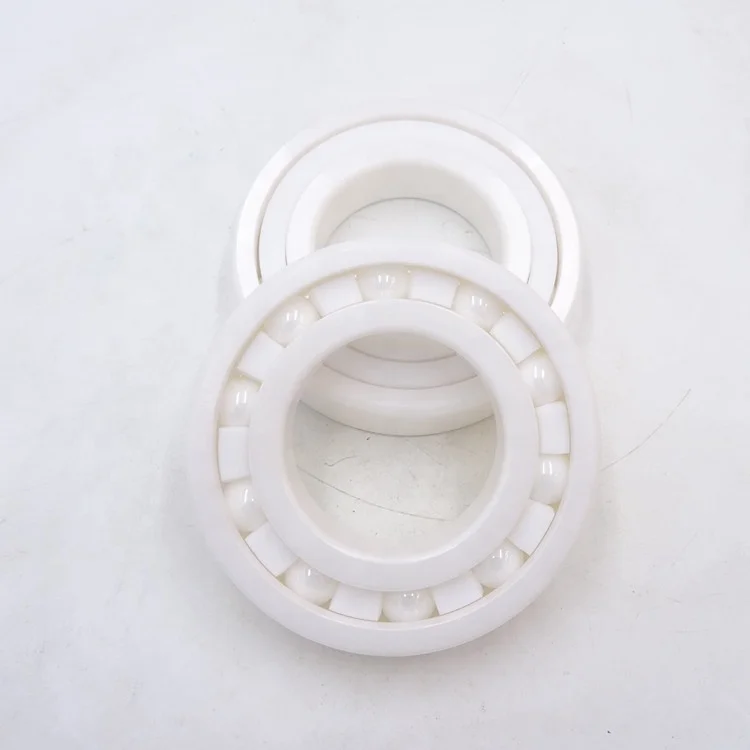

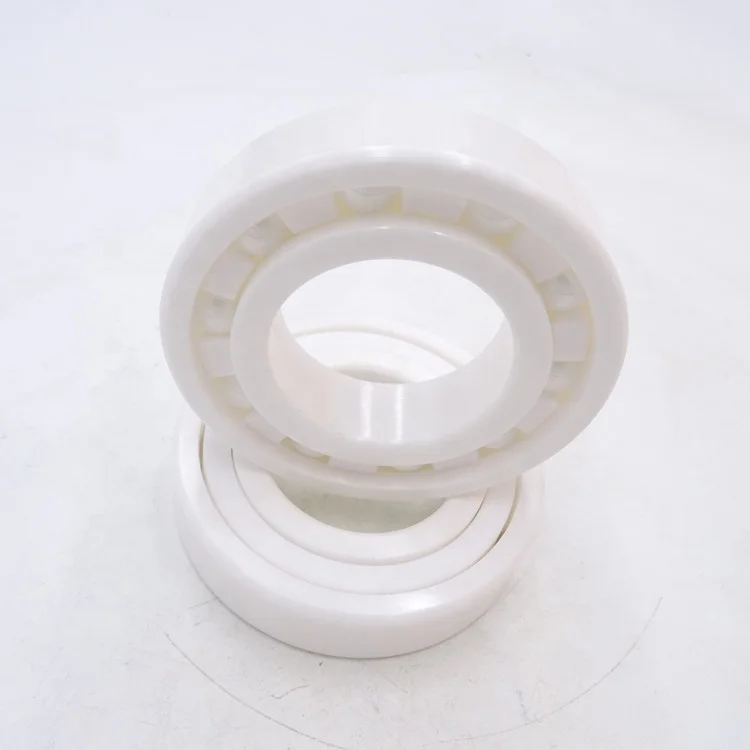

Product show
the other material you may interested
Seal Types:
Related model numbers:
| 6000 2Z/2RSH-C3 | 6200 2Z/2RS-C3 | 6300 2Z/2RS-C3 |
| 6001 2Z/2RSH-C3 | 6201 2Z/2RS-C3 | 6301 2Z/2RS-C3 |
| 6002 2Z/2RSH-C3 | 6202 2Z/2RS-C3 | 6302 2Z/2RS-C3 |
| 6003 2Z/2RSH-C3 | 6203 2Z/2RS-C3 | 6303 2Z/2RS-C3 |
| 6004 2Z/2RSH-C3 | 6204 2Z/2RS-C3 | 6304 2Z/2RS-C3 |
| 6005 2Z/2RSH-C3 | 6205 2Z/2RS-C3 | 6305 2Z/2RS-C3 |
| 6006 2Z/2RS1-C3 | 6206 2Z/2RS-C3 | 6306 2Z/2RS-C3 |
| 6007 2Z/2RS1-C3 | 6207 2Z/2RS-C3 | 6307 2Z/2RS-C3 |
| 6008 2Z/2RS1-C3 | 6208 2Z/2RS-C3 | 6308 2Z/2RS-C3 |
| 6009 2Z/2RS1-C3 | 6209 2Z/2RS-C3 | 6309 2Z/2RS-C3 |
| 6010 2Z/2RS1-C3 | 6210 2Z/2RS-C3 | 6310 2Z/2RS-C3 |
| 6011 2Z/2RS1-C3 | 6211 2Z/2RS-C3 | 6311 2Z/2RS-C3 |
| 6012 2Z/2RS1-C3 | 6212 2Z/2RS-C3 | 6312 2Z/2RS-C3 |
| 6013 2Z/2RS1-C3 | 6213 2Z/2RS-C3 | 6313 2Z/2RS-C3 |
| 6014 2Z/2RS1-C3 | 6214 2Z/2RS-C3 | 6314 2Z/2RS-C3 |
| 6015 2Z/2RS1-C3 | 6215 2Z/2RS-C3 | 6315 2Z/2RS-C3 |
| 6016 2Z/2RS1-C3 | 6216 2Z/2RS-C3 | 6316 2Z/2RS-C3 |
| 6017 2Z/2RS1-C3 | 6217 2Z/2RS-C3 | 6317 2Z/2RS-C3 |
| 6018 2Z/2RS1-C3 | 6218 2Z/2RS-C3 | 6318 2Z/2RS-C3 |
| 6019 2Z/2RS1-C3 | 6219 2Z/2RS-C3 | 6319 2Z/2RS-C3 |
| 6020 2Z/2RS1-C3 | 6220 2Z/2RS-C3 | 6320 2Z/2RS-C3 |
Deep groove ball bearing (ZZ, 2RS ,Z ,RS) 604 series :605 606 607 608 609
623 series: 623 624 625 626 627 628 629
634 series: 634 635 638
61800 series: 61800 61801 61802 61803 61804 61805 61806 61807 61808 61809 61820 61821 61822 61824 61826 61828 61834 61838 61840 61852 61860 61864 61872 61876 61880 61888 61892
61900 series: 61900 61901 61902 61903 61904 61905 61906 61907 61908 61909 61910 61911 61912 61913 61914 61915 61916 61917 61918 61919 61920 61921 61922 61924 61926 61928 61934 61936 61938 61940 61944 61948 61952 61960 61964 61968 61980 61984 61988 61992
16001 series: 16002 16003 16004 16005 16006 16007 16008 16009 16010 16011 16012 16013 16014 16015 16016 16017 16018 16019 16020 16021 16022 16024 16026 16028 16030 16032 16034 16038 16040 16052
6000 series: 6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6013 6014 6015 6016 6017 6018 6019 6020 6021 6022 6024 6026 6028 6030 6032 6034 6036 6038 6040 6044 6048 6052 6056 6060 6064 6068 6072 6080 6088 6092
6200 series: 6200 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6214 6215 6216 6217 6218 6219 6220 6221 6222 6224 6226 6228 6230 6232 6234 6236 6238 6240 6244 6248 6252
6300 series: 6300 6301 6302 6303 6304 6305 66306 6307 6308 6309 6310 6311 6312 6313 6314 6315 6316 6317 6318 6319 6320 6321 6322 6324 6326 6328 63306332 6334
6403 series: 6403 6404 6405 6406 6407 6408 6409 6410 6411 6412 6413 6414 6415 6416 6417 6418 6419 6420 6422
|
Meterial:
|
Ceramic,Chrome steel,Stainless steel,Plstic,Hybrid,Carbon steel…
|
|
6800 Series:
|
685, 686, 687, 688, 689, 6800, 6801, 6802, 6803, 6804, 6805, 6806, 6807, 6808, 6809, 6810;6811,6812, 6813,6814,6815,6816,6817,6818,6819,6820,6821,6822,6824,6826,6828,6830,6832,6834,6836,6838
|
|
6900 Series:
|
695, 696, 697, 698, 699, 6900, 6901, 6902, 6903, 6904, 6905, 6906, 6907,6908, 6909, 6910;6911,6912,6913, 6914,6915,6916,6917,6918,6919,6920,6921,6922,6924,6926,6928,6930,6932,6934,6936,6938,
|
|
6000 Series:
|
605, 606, 607, 608, 609, 6000, 6001, 6002, 6003, 6004, 6005, 6006, 6007. 6008, 6009, 6010;605, 606, 607, 608, 609, 6000, 6001, 6002, 6003, 6004, 6005, 6006, 6007. 6008,6009,6010;6011,6012,6013,6014,6015, 6016,6017,6018,6019,6020,6021,6022,6024,6026,6028,6030,6032,6034,6036,6038,6040,6044,6048
|
|
6200 Series:
|
625, 626, 627, 628, 629, 6200, 6201, 6202, 6203, 6204, 6205, 6206, 6207. 6208, 6209, 6210;6211,6212,6213,6214,6215,6216,6217,6218,6219,6220,6221,6222,6224,6226,6228,6230,6232,6234,6236,6238,6240,6244,6248
|
|
6300 Series:
|
6300, 6301, 6302, 6303, 6304, 6305, 6306, 6307. 6308, 6309, 6310;6311,6312.6313,6314,6315,6316 ,6317,6318,6319,6320,6321,6322,6324,6326,6328,6330,6332,6334,6336,6338,6340,6344,6348
|
|
16000series:
|
16001,16002,16003,16004,16005,16006,16007,16008, 16009,16010,16011,16012,16013,16014,16015,16016,
16017,16018,16019,16020,16021,16022,16024,16028,
16030,16032,16034,16036,16038
|
our company main products
Additional information
| Brand Name | YBW Bearing |
|---|---|
| Outside Diameter | 35MM |
