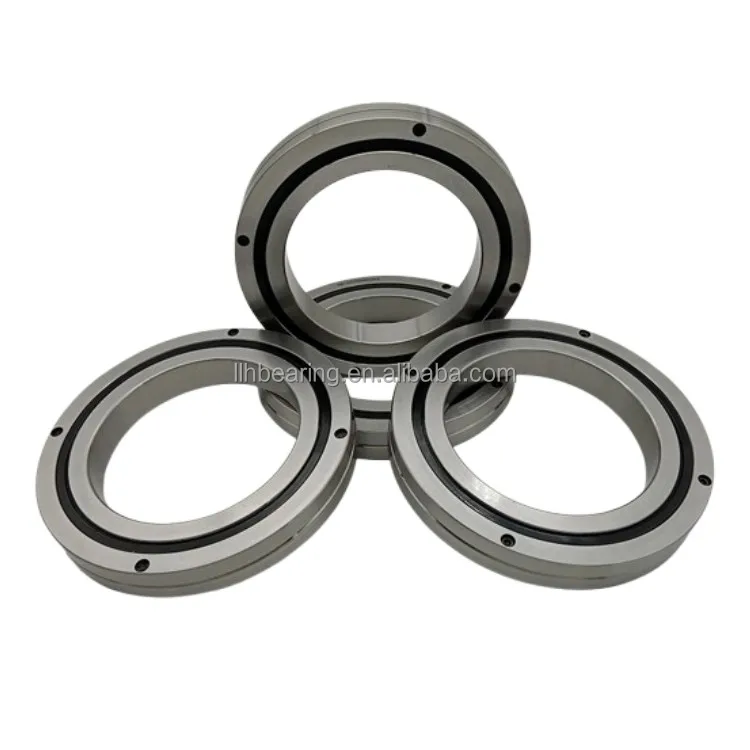

RB10020 Slewing Bearing RB Thin Robot Cross Roller Bearings RB10020UU RB10020UUC0 RB10020UUCC0 100x150x20 mm
$58.80 (Shipping Charge Not Included）
Description
RB Cross Roller Bearing
RB series cross cylindrical roller bearings are the basic type of cross cylindrical roller bearings. The size of the inner and outer rings is miniaturized. It has structure with separable outer ring, integrated design of inner ring, suitable for parts requiring high rotation accuracy of inner ring. RB series cross cylindrical roller bearing has two structural types: RB (open type) and RB-UU (double end face seal) type.
Crossed Roller Bearings:

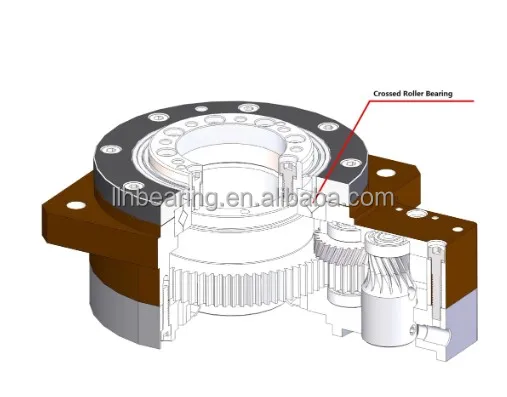

Cross Roller Bearings are a type of roller bearing with high rotation accuracy capable of bearing loads in every direction.Because it has orthogonally arranged cylindrical rollers, it can bear loads in every direction. This lets one crossed roller bearing replace more than one ball bearing, thus saving the space required by ball bearings, lowering the associated material costs.
Key benefits of cross roller bearings:
High load capacity: cross roller bearings are designed to heavy loads in compact spaces Unique Design: rollers arranged perpendicular to the axis of rotation which ensures smooth and precise operation through rigidity and accuracy
Durability: highly durable and built to last minimizing downtime and maintenance costs
High load capacity: cross roller bearings are designed to heavy loads in compact spaces Unique Design: rollers arranged perpendicular to the axis of rotation which ensures smooth and precise operation through rigidity and accuracy
Durability: highly durable and built to last minimizing downtime and maintenance costs

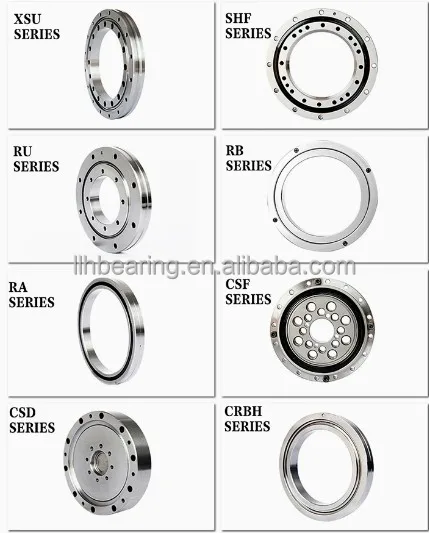

Types Cross Roller Bearings:
1. RA series
2. RB series
3. RU series
4. SX series
5. XU series
6. XSU series
7. XR/JXR series
8. CRBF series
9. CRBS series
10.CRBH series
11.CRBT series
2. RB series
3. RU series
4. SX series
5. XU series
6. XSU series
7. XR/JXR series
8. CRBF series
9. CRBS series
10.CRBH series
11.CRBT series
Size Information
RB series:
|
Model
|
Inner Dia.
|
Outer Dia.
|
Inner Width
|
Outer Width
|
Pitch Dia.
|
Weight
|
|
d（mm）
|
D（mm）
|
B（mm）
|
B1（mm）
|
Dpw(mm)
|
m（Kg）
|
|
|
RB2008
|
20
|
36
|
8
|
8
|
27
|
0.04
|
|
RB2508
|
25
|
41
|
8
|
8
|
32
|
0.05
|
|
RB3010
|
30
|
55
|
10
|
10
|
41.5
|
0.12
|
|
RB3510
|
35
|
60
|
10
|
10
|
46.5
|
0.13
|
|
RB4010
|
40
|
65
|
10
|
10
|
51.5
|
0.16
|
|
RB4510
|
45
|
70
|
10
|
10
|
56.5
|
0.17
|
|
RB5013
|
50
|
80
|
13
|
13
|
64
|
0.27
|
|
RB6013
|
60
|
90
|
13
|
13
|
74
|
0.3
|
|
RB7013
|
70
|
100
|
13
|
13
|
84
|
0.35
|
|
RB8016
|
80
|
120
|
16
|
16
|
98
|
0.7
|
|
RB9016
|
90
|
130
|
16
|
16
|
108
|
0.75
|
|
RB10016
|
100
|
140
|
16
|
16
|
119.3
|
0.83
|
|
RB10020
|
100
|
150
|
20
|
20
|
123
|
1.45
|
|
RB11012
|
110
|
135
|
12
|
12
|
121.8
|
0.4
|
|
RB11015
|
110
|
145
|
15
|
15
|
126.5
|
0.75
|
|
RB11020
|
110
|
160
|
20
|
20
|
133
|
1.56
|
|
RB12016
|
120
|
150
|
16
|
16
|
134.7
|
0.72
|
|
RB12025
|
120
|
180
|
25
|
25
|
148.7
|
2.62
|
|
RB13015
|
130
|
160
|
15
|
15
|
144.5
|
0.72
|
|
RB13025
|
130
|
190
|
25
|
25
|
158
|
2.82
|
|
RB14016
|
140
|
175
|
16
|
16
|
154.8
|
1
|
|
RB14025
|
140
|
200
|
25
|
25
|
168
|
2.96
|
|
RB15013
|
150
|
180
|
13
|
13
|
164
|
0.68
|
|
RB15025
|
150
|
210
|
25
|
25
|
178
|
3.16
|
|
RB15030
|
150
|
230
|
30
|
30
|
188
|
5.3
|
|
RB16025
|
160
|
220
|
25
|
25
|
188.6
|
3.14
|
|
RB17020
|
170
|
220
|
20
|
20
|
191
|
2.21
|
|
RB18025
|
180
|
240
|
25
|
25
|
210
|
3.44
|
|
RB19025
|
190
|
240
|
25
|
25
|
211.9
|
2.99
|
|
RB20025
|
200
|
260
|
25
|
25
|
230
|
4
|
|
RB20030
|
200
|
280
|
30
|
30
|
240
|
6.7
|
|
RB20035
|
200
|
295
|
35
|
35
|
247.7
|
9.6
|
|
RB22025
|
220
|
280
|
25
|
25
|
250.1
|
4.1
|
|
RB24025
|
240
|
300
|
25
|
25
|
269
|
4.5
|
|
RB25025
|
250
|
310
|
25
|
25
|
277.5
|
5
|
|
RB25030
|
250
|
330
|
30
|
30
|
287.5
|
8.1
|
|
RB25040
|
250
|
355
|
40
|
40
|
300.7
|
14.8
|
|
RB30025
|
300
|
360
|
25
|
25
|
328
|
5.9
|
|
RB30035
|
300
|
395
|
35
|
35
|
345
|
13.4
|
|
RB30040
|
300
|
405
|
40
|
40
|
351.6
|
17.2
|
|
RB35020
|
350
|
400
|
20
|
20
|
373.4
|
3.9
|
|
RB40035
|
400
|
480
|
35
|
35
|
440.3
|
14.5
|
|
RB40040
|
400
|
510
|
40
|
40
|
453.4
|
23.5
|
|
RB45025
|
450
|
500
|
25
|
25
|
474
|
6.6
|
|
RB50025
|
500
|
550
|
25
|
25
|
524.2
|
7.3
|
|
RB50040
|
500
|
600
|
40
|
40
|
548.8
|
26
|
|
RB50050
|
500
|
625
|
50
|
50
|
561.6
|
41.7
|
|
RB60040
|
600
|
700
|
40
|
40
|
650
|
29
|
|
RB70045
|
700
|
815
|
45
|
45
|
753.5
|
46
|
|
RB80070
|
800
|
950
|
70
|
70
|
868.1
|
105
|
|
RB90070
|
900
|
1050
|
70
|
70
|
969
|
120
|
|
RB1000110
|
1000
|
1250
|
110
|
110
|
1114
|
360
|
|
RB1250110
|
1250
|
1500
|
110
|
110
|
1365.8
|
440
|
Additional information
| Bore Size | 100 mm |
|---|---|
| Outside Diameter | 150 mm |
