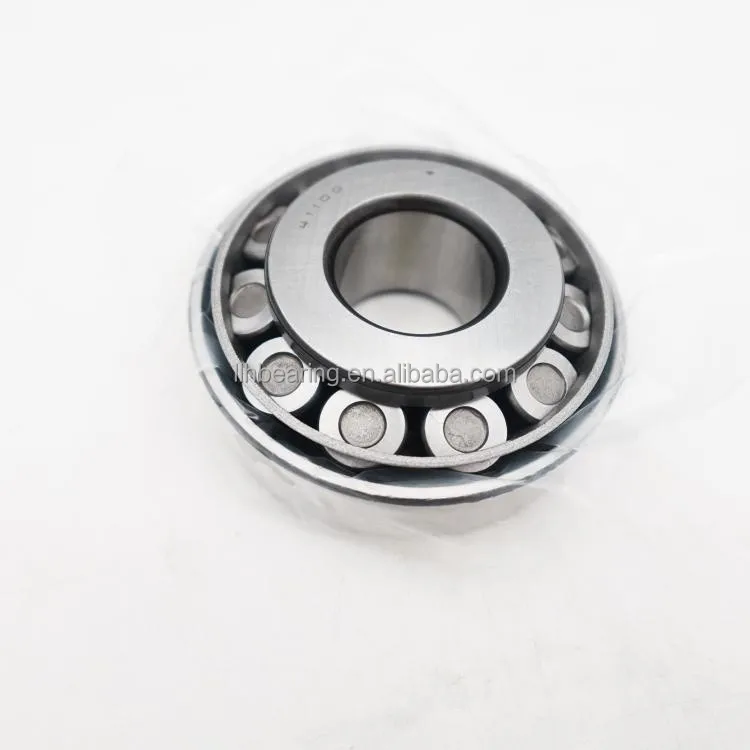

SET474 41100/286 China Supplier Inch Size Taper Roller Roller Bearing 41100/41286 Auto Wheel Bearings Size 25.4×72.63×24.61 mm

Description





·High load,

· Long service life,

·High rigidity,

·High precision,

·High speed,

·Low noise



Application

Tapered roller bearings are more and more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, equipment, robots, tools, machinery, cnc machine , automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry being.



Taper roller bearing are generally used to supportcombined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.

Taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.

item	size(mm)			weight(kg)
	d	D	B
09067/09195	19.05	49.225	18.034	0.1804
09081/09195	20.625	49.225	19.845	0.1555
LM11749/LM11710	17.462	39.878	13.843	0.083
LM11949/LM11910	19.05	45.237	15.494	0.125
M12649/M12610	21.43	50.005	17.526	0.174
LM12749/LM1270	21.43	45.237	15.494	0.118
LM12749/LM1270	22	45.237	15.494	0.116
LM12749/LM1271	22	45.975	15.494	0.121
14125A/14276	31.75	69.012	19.845	0.354
14137A/14276	34.925	69.012	19.845	0.331
14138A/14276	34.925	69.012	19.845	0.329
25877/25821	34.925	73.025	23.812	0.473
25880/25821	36.487	73.025	23.812	0.458
2785/2720	33.338	73.025	23.812	0.544
2788/2720	38.1	76.2	23.813	0.499
2788/2729	38.1	76.2	23.813	0.503
2790/2720	33.338	76.2	23.812	0.549
2790/2729	33.338	76.2	23.812	0.555
28580/28521	50.8	92.075	24.608	0.707
28584/28521	52.388	92.075	24.608	0.682
28985/28920	60.325	101.6	25.4	0.81
29590/28522	66.675	107.95	25.4	0.874
29685/29620	73.025	112.712	25.4	0.893
LM29749/LM29710	38.1	65.088	18.034	0.239
HM518445/HM518410	88.9	152.4	39.688	2.886
575/572	76	139.992	36.512	2.398
593/592A	88.9	152.4	39.688	2.79
593/593A	95.25	152.4	39.688	2.53
598A/592A	92.075	152.4	39.688	2.65
580/572	82.55	139.992	36.512	2.178
LM603049/LM603011	45.242	77.788	19.842	0.368
LM603049/LM603012	46.242	77.788	21.43	0.386
L610549/L610510	63.5	94.458	19.05	0.46
LM67048/LM67010	31.75	59.131	15.875	0.189
14138A/14276	34.925	69.012	19.845	0.329
