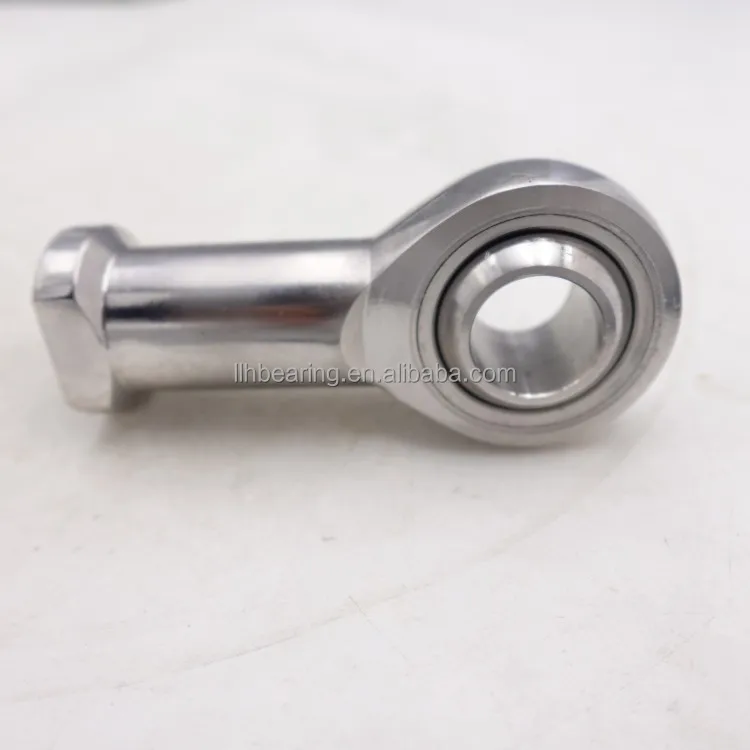

SI22T/K Stainless Steel Female Thread Spherical Oscillating Rod End Bearing SI22TK Self-Lubricating Fish Eye M22*1.5

Description

Joint bearing structure than simply rolling bearing, which is dominated by an inner and outer sphere within a spherical outer ring. Bearings are generally used for lower-speed swing motion (ie angular motion), the sliding surface of the spherical shape, but also for tilting movement within a certain range of angles (ie,aligning movement), the supporting shaft misalignment and shaft housing bore when a large degree, still work.

Self-aligning,High temperature resistance,carrying capability,self-lubrication



Application :

Engineering hydraulic cylinders,Forging machines,Construction machinery,  Auto shock absorber etc



Product Name	Rod End Bearing
Precision Rating	P0, P6, P5, P4, P2
Material	Bearing Steel  (GCr15)
Clearance	C0 C1 C2 C3 C4 C5
Vibration & Noisy	Z1,Z2,Z3 V1,V2,V3
Seal	2RS, RS
Features	High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction
Certification	ISO 9001:2008
Packing	1.Neutral Packing Bearing  2.Industrial Packing  3.Commercial Packing Bearing  4.Customize
Delivery Time	30 – 45 Days After The Order is Confirmed
Shippment	1.By Sea  2.By Air  3.By Express

Related Models

ITEM	Dimension(mm)														Weight
	d	d3	B	C1	L3	W	d2	h1	L4	L5	d4	d5	dk	a	kg
		6H			min									≈
SI5T/K	5	M5x0.8	8	6	10	9	18	27	36	4	8.5	11	11.11	13	0.016
SI6T/K	6	M6x1.0	9	6.75	12	11	20	30	40	5	10	13	12.7	13	0.022
SI8T/K	8	M8x1.25	12	9	16	14	24	36	48	5	12.5	16	15.875	14	0.047
SI10T/K	10	M10x1.5	14	10.5	20	17	28	43	57	6.5	15	19	19.05	13	0.077
SI10-1T/K	10	M10x1.25	14	10.5	20	17	28	43	57	6.5	15	19	19.05	13	0.077
SI12T/K	12	M12x1.75	16	12	22	19	32	50	66	6.5	17.5	22	22.225	13	0.1
SI12-1T/K	12	M12x1.25	16	12	22	19	32	50	66	6.5	17.5	22	22.225	13	0.1
SI14T/K	14	M14x2.0	19	13.5	25	22	36	57	75	8	20	25	25.4	16	0.16
SI14-1T/K	14	M14x1.5	19	13.5	25	22	36	57	75	8	20	25	25.4	16	0.16
SI16T/K	16	M16x2.0	21	15	28	22	42	64	85	8	22	27	28.575	15	0.22
SI16-1T/K	16	M16x1.5	21	15	28	22	42	64	85	8	22	27	28.575	15	0.22
SI18T/K	18	M18x1.5	23	16.5	32	27	44	71	93	10	25	31	31.75	15	0.32
SI20T/K	20	M20x1.5	25	18	33	30	50	77	102	10	27.5	34	34.925	14	0.42
SI22T/K	22	M22x1.5	28	20	37	32	54	84	111	12	30	38	38.1	15	0.54
SI25T/K	25	M24x2.0	31	22	42	36	60	94	124	12	33.5	42	42.86	15	0.72
SI28T/K	28	M27x2.0	35	24	51	41	66	103	136	14	37	46	47.63	15	0.82
SI30T/K	30	M30x2.0	37	25	51	41	70	110	145	15	40	50	50.8	17	1.1
SI30-1T/K	30	M27x2.0	37	25	51	41	70	110	145	15	40	50	50.8	17	1.1
SI35T/K	35	M36x2.0	43	28	56	50	81	125	165.5	17	46	58	57.15	16	1.6
SI40T/K	40	M42x2.0	49	33	60	55	91	142	187.5	19	53	65	66.67	16	2.4
SI50T/K	50	M48x2.0	60	45	65	65	117	160	218.5	23	65	75	82.5	12	5

Our Service

1.High speed, High Precision, Low Noise, Long Service Life

2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the “quality first, credit first” business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
