SI8T/K SI8TK Female Thread Rod End Ball Joint Bearing Fisheye Bearings
SI8T/K SI8TK Female Thread Rod End Ball Joint Bearing Fisheye Bearings - Image 2
SI8T/K SI8TK Female Thread Rod End Ball Joint Bearing Fisheye Bearings - Image 3
SI8T/K SI8TK Female Thread Rod End Ball Joint Bearing Fisheye Bearings - Image 4
SI8T/K SI8TK Female Thread Rod End Ball Joint Bearing Fisheye Bearings - Image 5
SI8T/K SI8TK Female Thread Rod End Ball Joint Bearing Fisheye Bearings - Image 6

SI8T/K SI8TK Female Thread Rod End Ball Joint Bearing Fisheye Bearings

$12.00 (Shipping Charge Not Included）

SKU: N/A Category: Tag:

Description

SI8T/K SI8TK Female Thread Rod End Ball Joint Bearing Fisheye Bearings

FEMALE ROD END B D W T A N C a° APPROX
RIGHT LEFT DIA. DIA. WIDTH WIDTH LENGTH THREAD LENGTH MIS. WEIGHT
HAND HAND 0.065 0.038 0.12 REF. 0.4 METRIC 1 ANGLE (GRAMS)
PART NO. PART NO. -0.012 -0.04 -0.12 -0.4 MALE -1 REF.
SI5TK SIL5TK 5 18 8 6 27 M5 X0.8 10 4 18
SI6TK SIL6TK 6 20 9 6.75 30 M6 X 1.0 12 9 27
SI8TK SIL8TK 8 24 12 9 36 M8 X 1.25 16 13 46
SI10TK SIL10TK 10 28 14 10.5 43 M10 X 1.5 20 13 76
SI12TK SIL12TK 12 32 16 12 50 M12 X 1.75 22 13 115
SI14TK SIL14TK 14 36 19 13.5 57 M14 X 2.0 25 13 170
SI16TK SIL16TK 16 42 21 15 64 M16 X 2.0 28 13 230
SI18TK SIL18TK 18 46 23 16.5 71 M18 X 1.5 32 13 320
SI20TK SIL20TK 20 50 25 18 77 M20 X 1.5 33 13 415
SI22TK SIL22TK 22 54 28 20 84 M22 X 1.5 37 13 540
SI25TK SIL25TK 25 60 31 22 94 M24 X 2 42 13 750
SI30TK SIL30TK 30 70 37 25 110 M30 X 2 51 13 1130
SI35TK SIL35TK 35 80 43 28 125 M36 X 2 56 13 1600

SI…TK Series (PHS Series)Rod End Bearing is belong to maintenance-free Rod Ends bearing.  The rod end body is equipped with a left-hand or right-hand external thread. The rod end body is formed by extrusion and the surface of the rod end body is galvanized. And The outer sphere is lined with PTFE synthetic material.

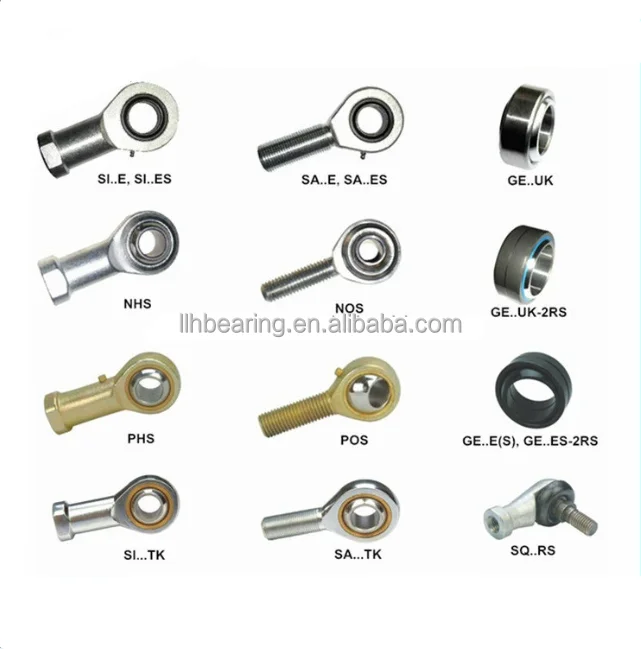

other model you may interested

ype Type Type Type Type Type Type Type Type Type
PHS3 PHS3L POS3 POS3L SI3T/K SIL3T/K SA3T/K SAL3T/K SIJK3C SILJK3C
PHS4 PHS4L POS4 POS4L SI4T/K SIL4T/K SA4T/K SAL4T/K SIJK4C SILJK4C
PHS5 PHS5L POS5 POS5L SI5T/K SIL5T/K SA5T/K SAL5T/K SIJK5C SILJK5C
PHS6 PHS6L POS6 POS6L SI6T/K SIL6T/K SA6T/K SAL6T/K SIJK6C SILJK6C
PHS8 PHS8L POS8 POS8L SI8T/K SIL8T/K SA8T/K SAL8T/K SIJK8C SILJK8C
PHS10 PHS10L POS10 POS10L SI10T/K SIL10T/K SA10T/K SAL10T/K SIJK10C SILJK10C
PHS12 PHS12L POS12 POS12L SI12T/K SIL12T/K SA12T/K SAL12T/K SIJK12C SILJK12C
PHS14 PHS14L POS14 POS14L SI14T/K SIL14T/K SA14T/K SAL14T/K SIJK14C SILJK14C
PHS16 PHS16L POS16 POS16L SI16T/K SIL16T/K SA16T/K SAL16T/K SIJK16C SILJK16C
PHS18 PHS18L POS18 POS18L SI18T/K SIL18T/K SA18T/K SAL18T/K SIJK18C SILJK18C
PHS20 PHS20L POS20 POS20L SI20T/K SIL20T/K SA20T/K SAL20T/K SIJK20C SILJK20C
PHS22 PHS22L POS22 POS22L SI22T/K SIL22T/K SA22T/K SAL22T/K SIJK22C SILJK22C
PHS25 PHS25L POS25 POS25L SI25T/K SIL25T/K SA25T/K SAL25T/K SIJK25C SILJK25C
PHS30 PHS30L POS30 POS30L SI30T/K SIL30T/K SA30T/K SAL30T/K SIJK30C SILJK30C

Additional information

Bore Size

6-50mm
