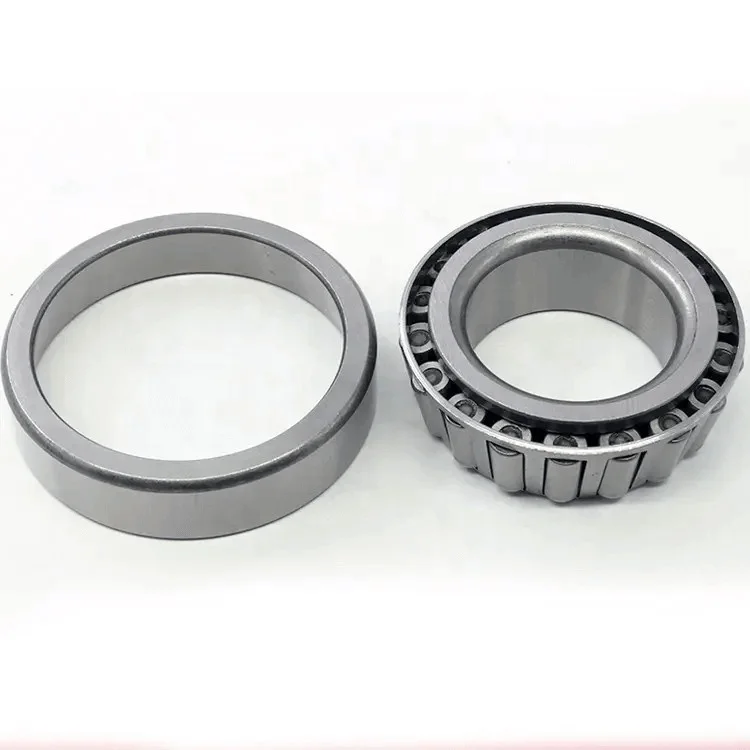

Tapered Roller Bearing 32209 Heavy Duty for Truck 32209A 32209JR 45*85*24.75mm

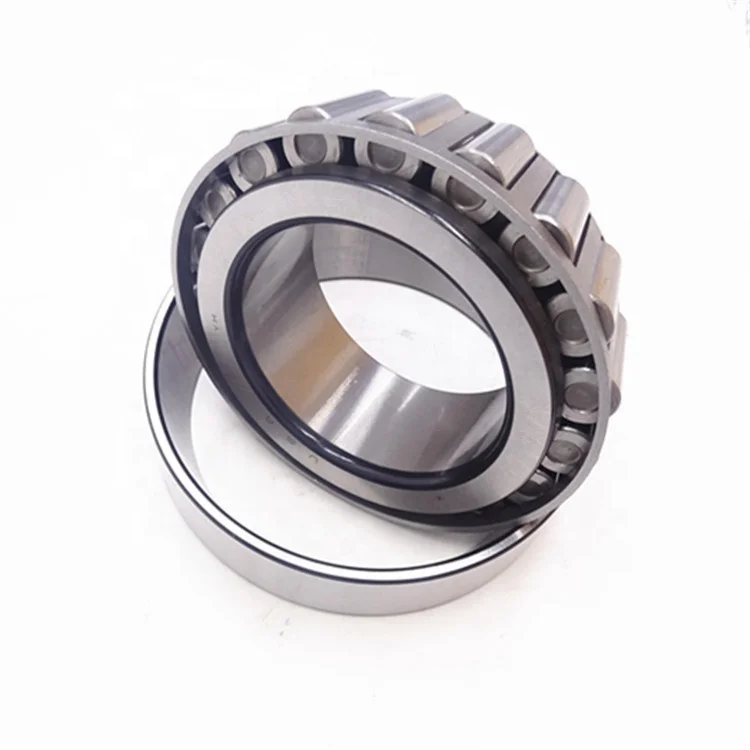

Tapered Roller Bearing 32209 Heavy Duty for Truck 32209A 32209JR 45*85*24.75mm - Image 2

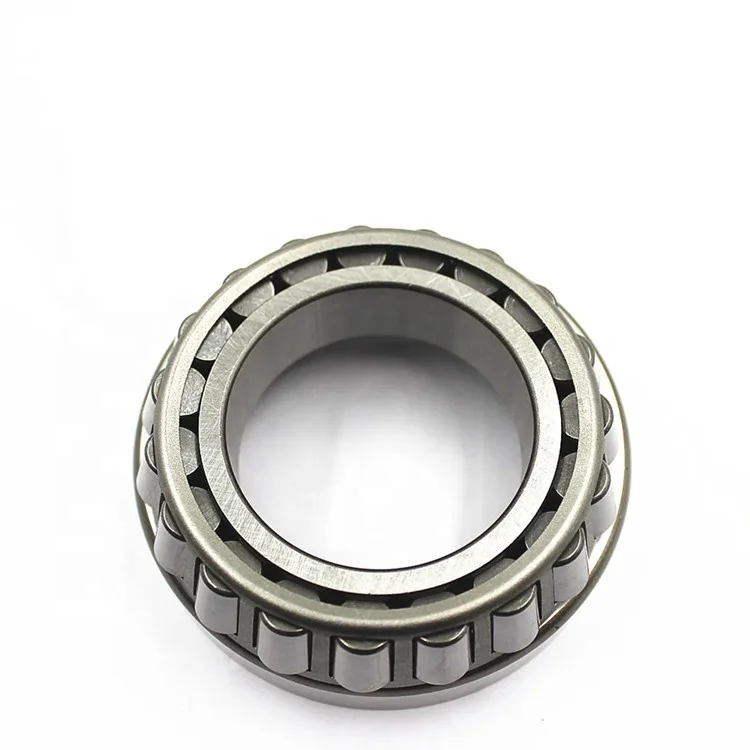

Tapered Roller Bearing 32209 Heavy Duty for Truck 32209A 32209JR 45*85*24.75mm - Image 3

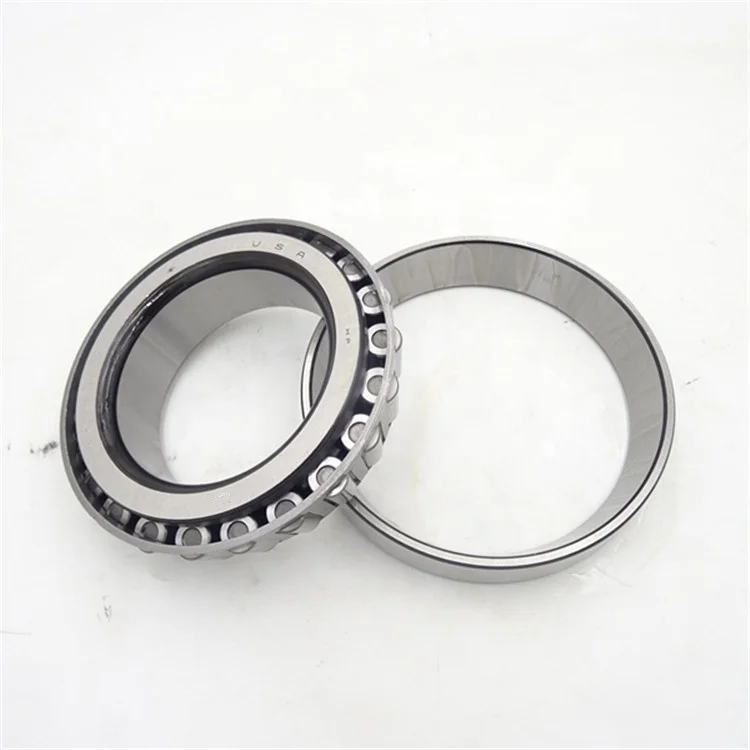

Tapered Roller Bearing 32209 Heavy Duty for Truck 32209A 32209JR 45*85*24.75mm - Image 4
Tapered Roller Bearing 32209 Heavy Duty for Truck 32209A 32209JR 45*85*24.75mm - Image 5
Tapered Roller Bearing 32209 Heavy Duty for Truck 32209A 32209JR 45*85*24.75mm - Image 6

Tapered Roller Bearing 32209 Heavy Duty for Truck 32209A 32209JR 45*85*24.75mm

$4.50 (Shipping Charge Not Included）

SKU: N/A Category: Tag:

Description

Tapered Roller Bearing Information:
Taper roller bearing the angle between the outer raceway generator and line, the bearing can bearing heavy load and other Tapered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of
functions.
type
Inch Tapered Roller bearing
model number
32209
size
45*85*24.75mm
seals type
open
application
Automotive.tractor.construction Machinery.rolling Mill
features
good quality,low noise,long life
service
OEM and customized service
PRODUCT FACE

Brief introduction :

Features :
·High load,
·Long service life,
·High rigidity,
·High precision,
·High speed,
·Low noise

Application of tapered roller bearing:
Tapered roller bearings are more and more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, equipment, robots, tools, machinery, cnc machine , automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry being.
Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.
Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

RELATED MODELS
Specification
Boundary dimensions(mm)
Mass(kg)
d
D
B
LM300849/LM300811
41.000
68.000
17.500
0.2420
33275/33462
69.850
117.475
30.162
1.2720
33281/33462
71.438
117.475
30.162
1.2310
33889/33821
50.800
95.250
27.783
0.8680
33287/33462
73.025
117.475
30.162
1.1880
368A/362A
50.800
88.900
20.638
0.5040
368/362
50.800
90.000
20.000
0.5620
3780/3720
50.800
93.254
30.162
0.8560
3782/3720
44.450
93.264
30.162
0.9700
387A/382A
57.150
96.838
21.000
0.5990
39585/39520
63.500
112.712
30.162
1.2580
2580/2523
31.750
69.850
23.812
0.4510
28985/28921
60.325
100.00
25.400
0.7700
47686/47620
82.550
133.350
33.338
1.7570
47687/47620
82.550
133.350
33.338
1.7370
387A/362S
57.150
96.838
25.400
0.6690
387A/382
57.150
98.425
21.000
0.6460
3982/3920
63.500
112.712
30.162
1.2430
3984/3920
66.675
112.712
30.162
1.1660
462/453X
57.150
104.775
30.162
1.0700
L44643/L44610
25.400
50.292
14.224
0.1290
L44649/L44610
26.988
50.292
14.224
0.1200
L45449/L45410
29.000
50.292
14.224
0.1150
LM48548/LM48510
34.925
65.088
18.034
0.2590

Additional information

Bore Size

45 mm
Outside Diameter

85 mm
