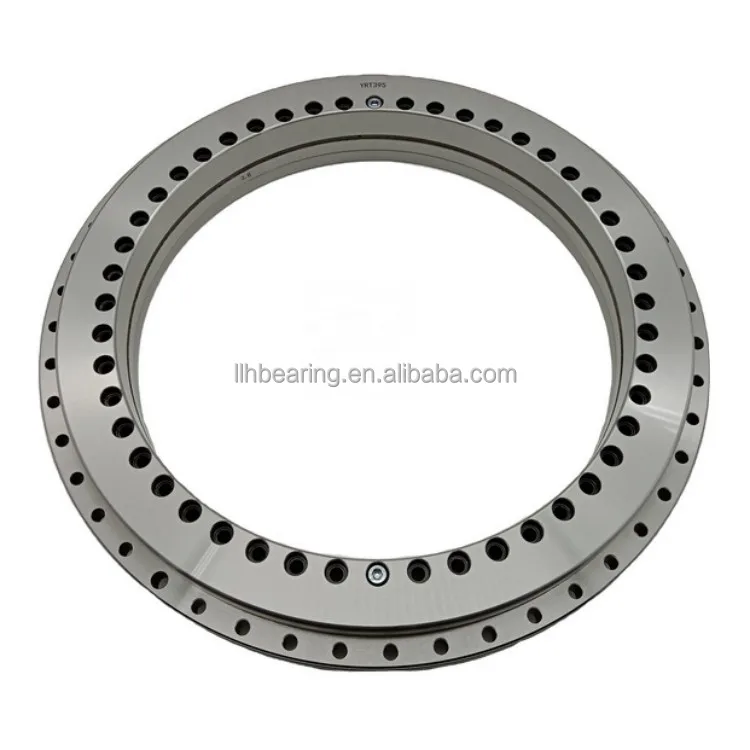

YRT850 Rotary Table Roller Bearing 850x1095x124mm Capable of Axial and Radial Loads Cross Roller for Machinery Industries
YRT850 Rotary Table Roller Bearing 850x1095x124mm Capable of Axial and Radial Loads Cross Roller for Machinery Industries - Image 2
YRT850 Rotary Table Roller Bearing 850x1095x124mm Capable of Axial and Radial Loads Cross Roller for Machinery Industries - Image 3
YRT850 Rotary Table Roller Bearing 850x1095x124mm Capable of Axial and Radial Loads Cross Roller for Machinery Industries - Image 4
YRT850 Rotary Table Roller Bearing 850x1095x124mm Capable of Axial and Radial Loads Cross Roller for Machinery Industries - Image 5
YRT850 Rotary Table Roller Bearing 850x1095x124mm Capable of Axial and Radial Loads Cross Roller for Machinery Industries - Image 6

YRT850 Rotary Table Roller Bearing 850x1095x124mm Capable of Axial and Radial Loads Cross Roller for Machinery Industries

$800.00 (Shipping Charge Not Included）

SKU: N/A Category: Tags: ,

Description



Axial/radial bearings can support radial loads and axial loads from both sides as well as tilting moments and are particularly suitable for bearing arrangements with high requirements for running accuracy, for example in rotary tables, face plates, milling heads and reversible clamps.



Feature

YRT Turntable bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.

P/N d mm D mm H mm
YRT50 50 126 30
YRT80-TV 80 146 35
YRT100 100 185 38
YRT120 120 210 40
YRT150 150 240 40
YRT180 180 280 43
YRT200 200 300 45
YRT260 260 385 55
YRT325 325 450 60
YRT395 395 525 65
YRT460 460 600 70
YRT580 580 750 90
YRT650 650 870 122
YRT850 850 1095 124
YRT950 950 1200 132
YRT1030 1030 1300 145



Additional information

Bore Size

850 mm
Outside Diameter

1095 mm
